| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_009T01_9000006534_55288cztM0_level2.fits | modeM0/AS1A14_009T01_9000006534_55288cztM0_level2_quad_clean.evt |
| Size (bytes) | 377,786,880 | 97,110,720 |
| Size | 360.3 MB | 92.6 MB |
| Events in quadrant A | 2,925,988 | 632,586 |
| Events in quadrant B | 3,228,182 | 671,123 |
| Events in quadrant C | 3,020,230 | 611,326 |
| Events in quadrant D | 4,287,770 | 558,119 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13953 | 2 |
| B | 0 | 14732 | 6 |
| C | 0 | 14191 | 6 |
| D | 0 | 17684 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6706 | 28 | 0.417537% |
| B | 6703 | 121 | 1.805162% |
| C | 6704 | 33 | 0.492243% |
| D | 6706 | 267 | 3.981509% |

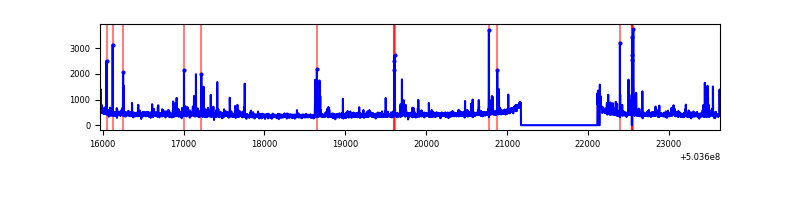

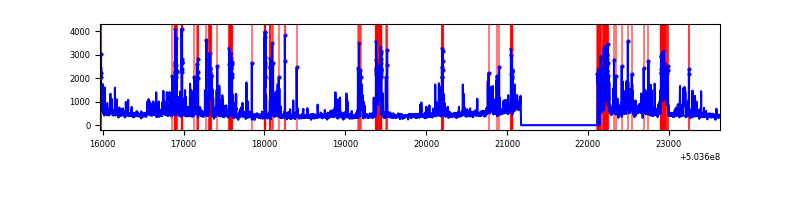

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6708 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7666 | 6707 | 53 | 53 | 0.69% | 0.79% |  |
| C | 7666 | 6707 | 16 | 16 | 0.21% | 0.24% |  |
| D | 7666 | 6708 | 237 | 237 | 3.09% | 3.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 84291 | 485.99 | 694 | 678 | 172.0 |
| A | 4 | 205 | 40257 | 230.05 | 694 | 678 | 172.0 |
| A | 4 | 3 | 29400 | 166.94 | 694 | 678 | 172.0 |
| B | 10 | 247 | 130911 | 882.28 | 689 | 664 | 147.6 |
| B | 0 | 199 | 93881 | 631.44 | 689 | 664 | 147.6 |
| B | 7 | 252 | 81327 | 546.4 | 689 | 664 | 147.6 |
| C | 13 | 3 | 124982 | 654.05 | 687 | 680 | 190.1 |
| C | 12 | 250 | 78486 | 409.4 | 687 | 680 | 190.1 |
| C | 3 | 208 | 56815 | 295.37 | 687 | 680 | 190.1 |
| D | 11 | 129 | 886188 | 4653.95 | 670 | 641 | 190.3 |
| D | 7 | 70 | 319892 | 1677.81 | 670 | 641 | 190.3 |
| D | 8 | 245 | 73035 | 380.46 | 670 | 641 | 190.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

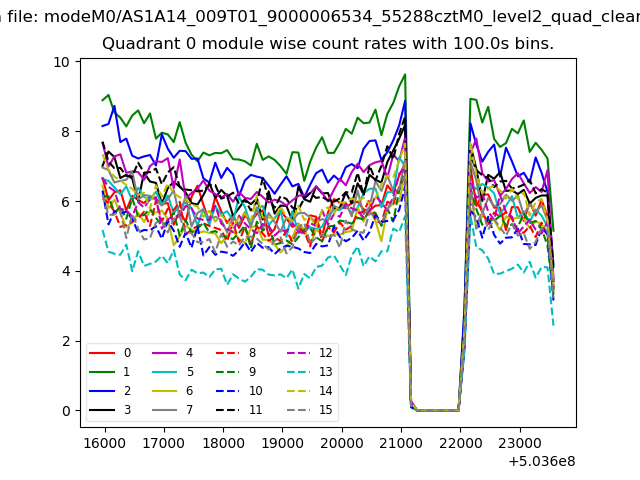

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

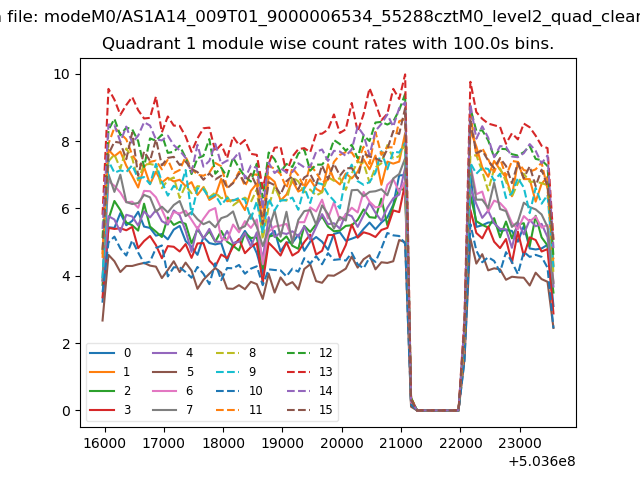

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

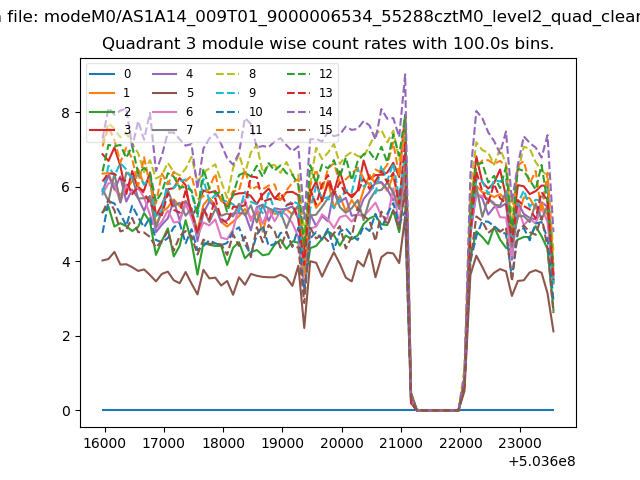

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

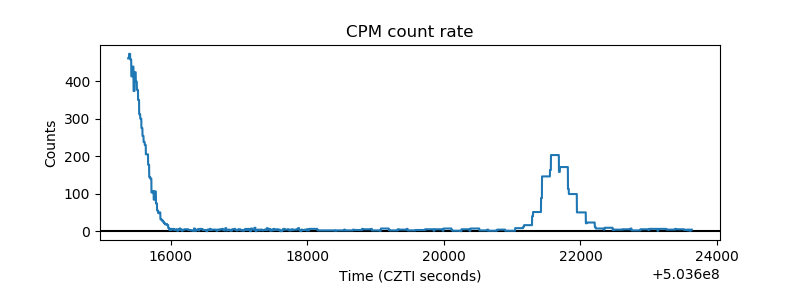

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

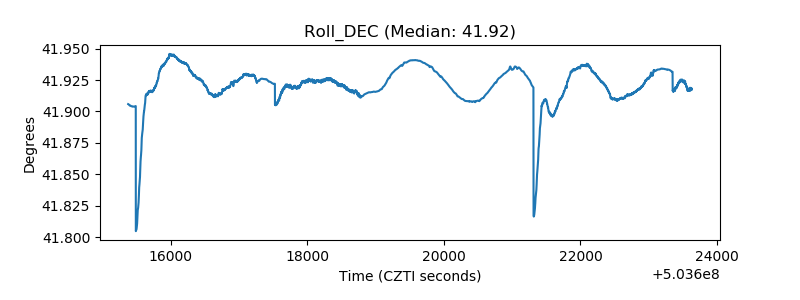

| _Roll_DEC |  |
| _Roll_RA |  |

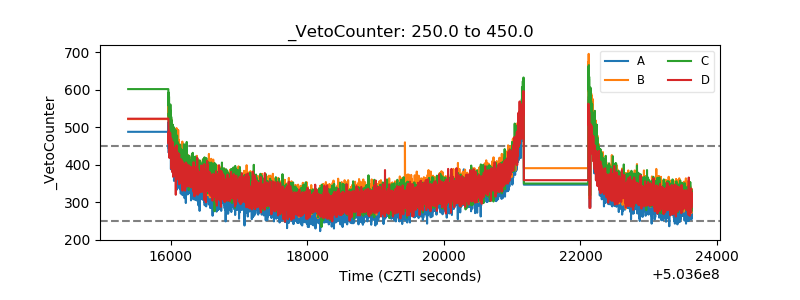

| Veto Counter |  |
