| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_009T01_9000006534_55301cztM0_level2.fits | modeM0/AS1A14_009T01_9000006534_55301cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,916,480 | 88,542,720 |
| Size | 386.2 MB | 84.4 MB |
| Events in quadrant A | 3,281,179 | 579,897 |
| Events in quadrant B | 2,937,313 | 624,114 |
| Events in quadrant C | 3,104,117 | 549,430 |
| Events in quadrant D | 5,171,091 | 483,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14437 | 2 |
| B | 0 | 13529 | 2 |
| C | 0 | 14181 | 2 |
| D | 0 | 19792 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 111 | 1.745283% |
| B | 6360 | 70 | 1.100629% |
| C | 6360 | 112 | 1.761006% |
| D | 6359 | 517 | 8.130209% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7785 | 6636 | 101 | 101 | 1.30% | 1.52% |  |
| B | 7785 | 6636 | 22 | 22 | 0.28% | 0.33% |  |
| C | 7785 | 6636 | 110 | 110 | 1.41% | 1.66% |  |
| D | 7784 | 6629 | 530 | 530 | 6.81% | 8.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 455667 | 2745.35 | 671 | 654 | 165.7 |
| A | 3 | 78 | 89643 | 536.92 | 671 | 654 | 165.7 |
| A | 7 | 7 | 35746 | 211.73 | 671 | 654 | 165.7 |
| B | 0 | 199 | 113025 | 782.71 | 669 | 645 | 143.6 |
| B | 2 | 249 | 33024 | 225.52 | 669 | 645 | 143.6 |
| B | 1 | 159 | 31712 | 216.38 | 669 | 645 | 143.6 |
| C | 13 | 3 | 267738 | 1458.28 | 662 | 655 | 183.1 |
| C | 14 | 254 | 106499 | 577.91 | 662 | 655 | 183.1 |
| C | 12 | 2 | 80342 | 435.09 | 662 | 655 | 183.1 |
| D | 11 | 129 | 1638957 | 9016.61 | 640 | 615 | 181.7 |
| D | 11 | 176 | 373846 | 2054.07 | 640 | 615 | 181.7 |
| D | 6 | 239 | 360194 | 1978.94 | 640 | 615 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

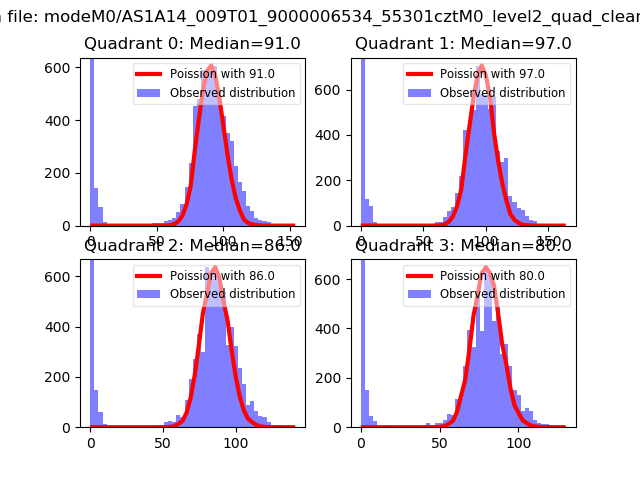

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

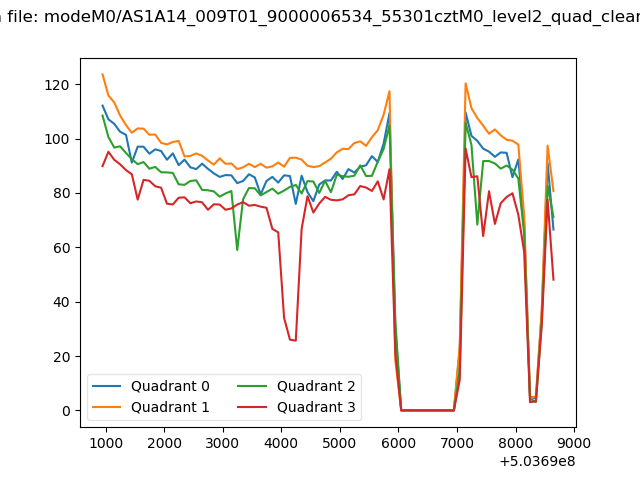

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
