| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55415cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55415cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,976,320 | 93,473,280 |
| Size | 481.6 MB | 89.1 MB |
| Events in quadrant A | 3,169,803 | 648,932 |
| Events in quadrant B | 3,146,873 | 692,959 |
| Events in quadrant C | 3,326,367 | 610,511 |
| Events in quadrant D | 8,537,806 | 418,488 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14256 | 2 |
| B | 0 | 14255 | 2 |
| C | 0 | 14841 | 3 |
| D | 0 | 29932 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6578 | 139 | 2.113104% |
| B | 6578 | 146 | 2.219520% |
| C | 6577 | 103 | 1.566064% |
| D | 6577 | 2061 | 31.336476% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7643 | 6579 | 44 | 44 | 0.58% | 0.67% |  |
| B | 7643 | 6579 | 40 | 40 | 0.52% | 0.61% |  |
| C | 7642 | 6578 | 30 | 30 | 0.39% | 0.46% |  |
| D | 7642 | 6577 | 1690 | 1690 | 22.11% | 25.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 145888 | 815.08 | 718 | 700 | 178.1 |
| A | 15 | 32 | 96322 | 536.82 | 718 | 700 | 178.1 |
| A | 4 | 159 | 79160 | 440.47 | 718 | 700 | 178.1 |
| B | 5 | 172 | 105412 | 700.63 | 702 | 678 | 149.5 |
| B | 10 | 247 | 79780 | 529.16 | 702 | 678 | 149.5 |
| B | 5 | 185 | 73939 | 490.09 | 702 | 678 | 149.5 |
| C | 13 | 3 | 298917 | 1573.67 | 688 | 682 | 189.5 |
| C | 12 | 252 | 168645 | 886.28 | 688 | 682 | 189.5 |
| C | 9 | 38 | 115882 | 607.87 | 688 | 682 | 189.5 |
| D | 11 | 129 | 5342094 | 33670.67 | 558 | 533 | 158.6 |
| D | 10 | 181 | 483595 | 3044.99 | 558 | 533 | 158.6 |
| D | 2 | 31 | 123556 | 775.48 | 558 | 533 | 158.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

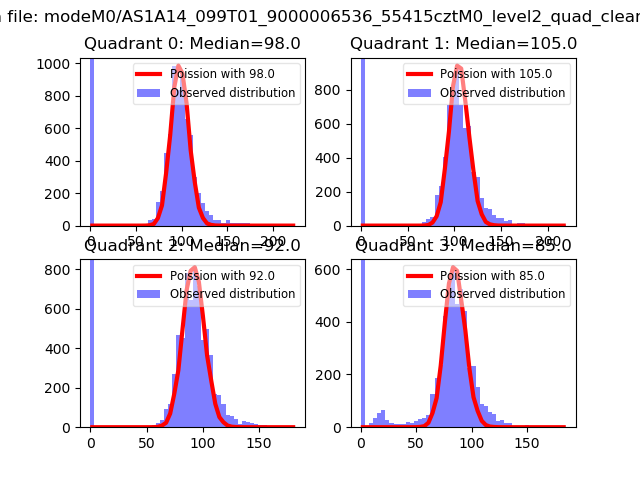

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

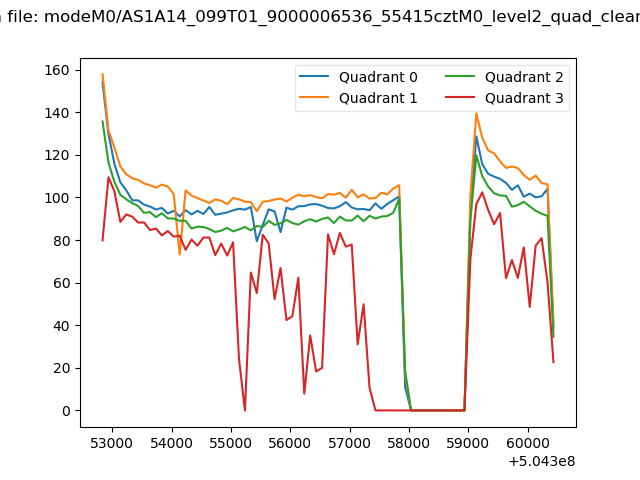

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

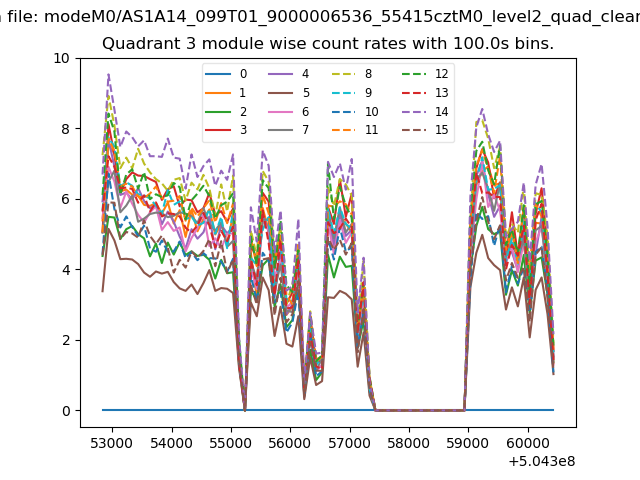

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
