| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55421cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55421cztM0_level2_quad_clean.evt |
| Size (bytes) | 780,816,960 | 103,072,320 |
| Size | 744.6 MB | 98.3 MB |
| Events in quadrant A | 3,795,239 | 769,277 |
| Events in quadrant B | 4,788,362 | 799,162 |
| Events in quadrant C | 3,974,940 | 723,282 |
| Events in quadrant D | 15,715,765 | 266,329 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17552 | 25 |
| B | 0 | 20316 | 30 |
| C | 0 | 18160 | 19 |
| D | 0 | 52371 | 169 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8094 | 68 | 0.840128% |
| B | 8090 | 288 | 3.559951% |
| C | 8100 | 121 | 1.493827% |
| D | 8084 | 5351 | 66.192479% |

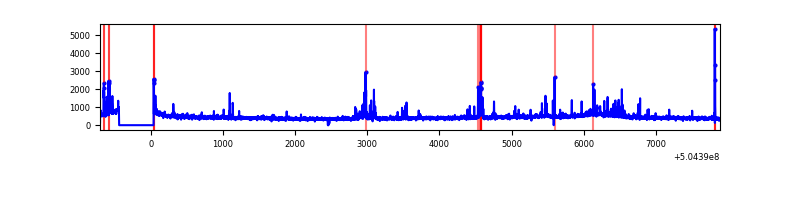

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8588 | 8103 | 20 | 20 | 0.23% | 0.25% |  |
| B | 8588 | 8098 | 85 | 85 | 0.99% | 1.05% |  |
| C | 8589 | 8107 | 52 | 52 | 0.61% | 0.64% |  |
| D | 8588 | 8089 | 4133 | 4133 | 48.13% | 51.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 134103 | 613.61 | 868 | 845 | 217.2 |
| A | 4 | 159 | 119489 | 546.32 | 868 | 845 | 217.2 |
| A | 4 | 3 | 44239 | 199.82 | 868 | 845 | 217.2 |
| B | 5 | 236 | 942327 | 5154.88 | 854 | 820 | 182.6 |
| B | 10 | 247 | 143299 | 780.09 | 854 | 820 | 182.6 |
| B | 2 | 249 | 75762 | 410.32 | 854 | 820 | 182.6 |
| C | 15 | 148 | 177392 | 759.49 | 853 | 844 | 232.5 |
| C | 13 | 3 | 95586 | 407.57 | 853 | 844 | 232.5 |
| C | 14 | 254 | 63000 | 267.39 | 853 | 844 | 232.5 |
| D | 11 | 129 | 10309568 | 64117.85 | 559 | 534 | 160.8 |
| D | 8 | 48 | 1451338 | 9023.39 | 559 | 534 | 160.8 |
| D | 2 | 62 | 669273 | 4159.28 | 559 | 534 | 160.8 |

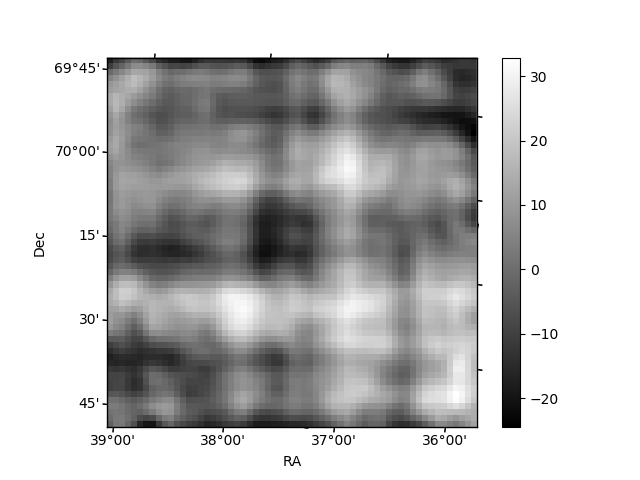

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

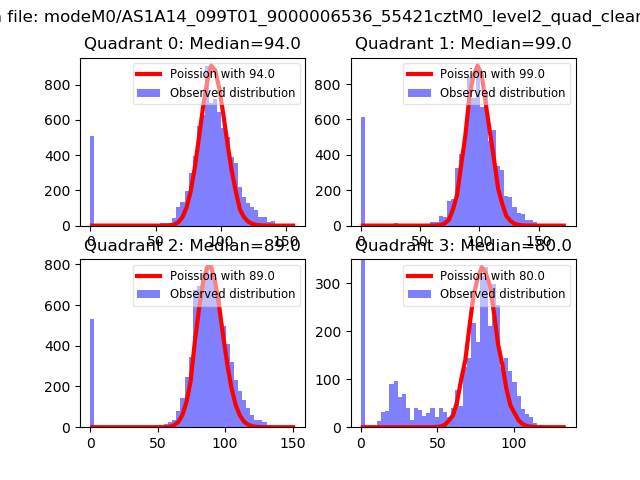

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

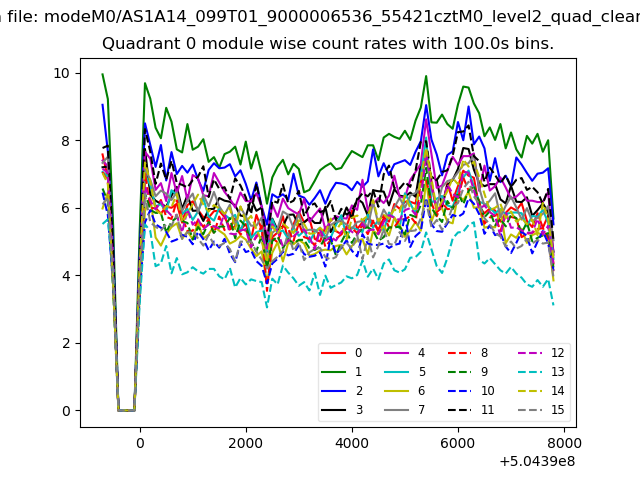

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

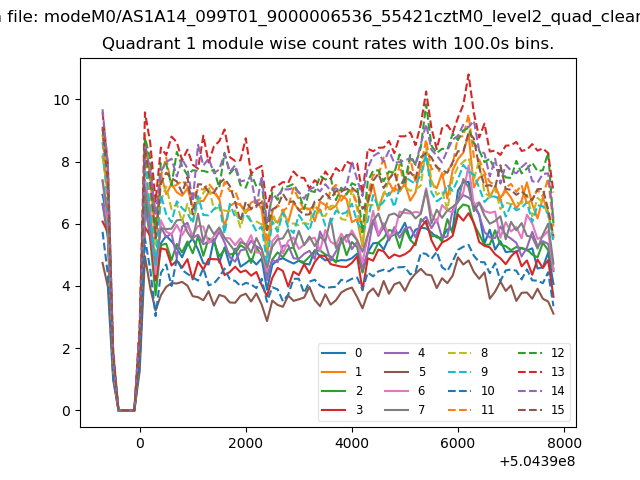

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

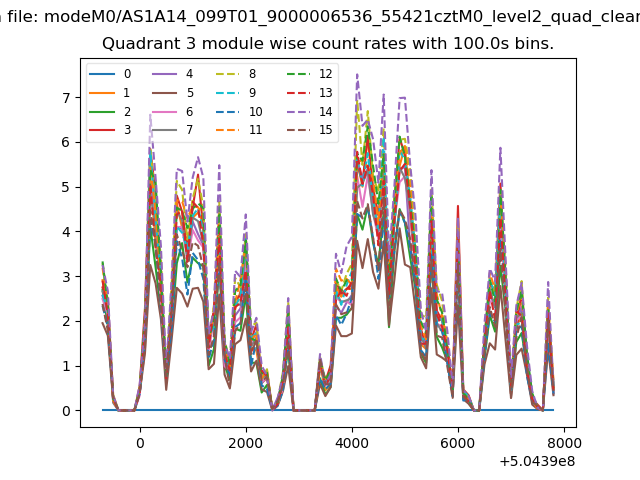

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

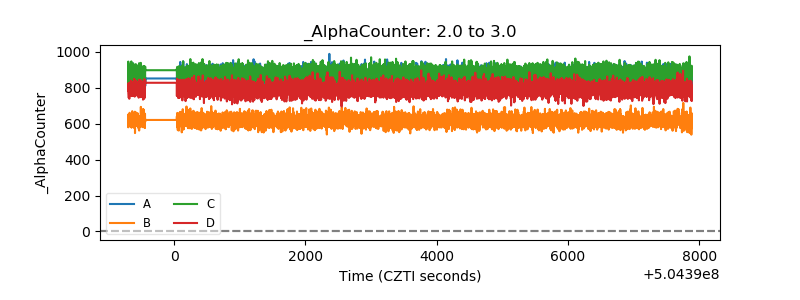

| Alpha Counter |  |

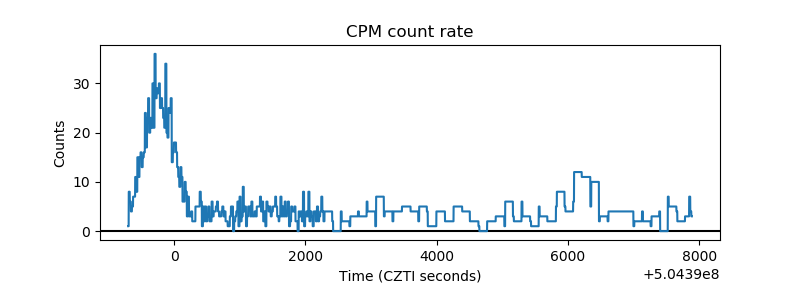

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
