| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55459cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55459cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,659,520 | 97,928,640 |
| Size | 386.9 MB | 93.4 MB |
| Events in quadrant A | 3,335,085 | 646,052 |
| Events in quadrant B | 3,054,771 | 695,067 |
| Events in quadrant C | 3,782,881 | 599,196 |
| Events in quadrant D | 4,336,026 | 570,539 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14562 | 2 |
| B | 0 | 13847 | 2 |
| C | 0 | 16043 | 2 |
| D | 0 | 17436 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6519 | 120 | 1.840773% |
| B | 6519 | 121 | 1.856113% |
| C | 6519 | 234 | 3.589508% |
| D | 6519 | 253 | 3.880963% |

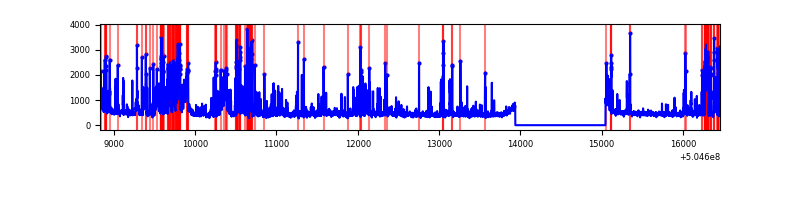

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7629 | 6519 | 25 | 25 | 0.33% | 0.38% |  |
| B | 7629 | 6519 | 39 | 39 | 0.51% | 0.60% |  |
| C | 7629 | 6519 | 174 | 174 | 2.28% | 2.67% |  |
| D | 7629 | 6520 | 234 | 234 | 3.07% | 3.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 486174 | 2758.32 | 716 | 698 | 176.0 |
| A | 0 | 8 | 30717 | 170.56 | 716 | 698 | 176.0 |
| A | 13 | 254 | 13525 | 72.88 | 716 | 698 | 176.0 |
| B | 5 | 236 | 138254 | 914.15 | 702 | 678 | 150.5 |
| B | 0 | 171 | 44602 | 291.86 | 702 | 678 | 150.5 |
| B | 0 | 182 | 27317 | 177.01 | 702 | 678 | 150.5 |
| C | 13 | 3 | 834212 | 4472.72 | 679 | 671 | 186.4 |
| C | 1 | 16 | 191699 | 1025.04 | 679 | 671 | 186.4 |
| C | 1 | 246 | 27157 | 142.12 | 679 | 671 | 186.4 |
| D | 8 | 160 | 947848 | 4883.29 | 685 | 654 | 194.0 |
| D | 2 | 31 | 236042 | 1213.55 | 685 | 654 | 194.0 |
| D | 2 | 249 | 115791 | 593.59 | 685 | 654 | 194.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

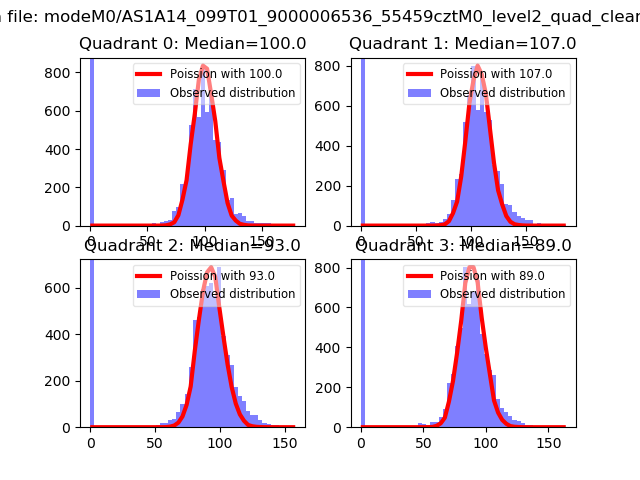

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

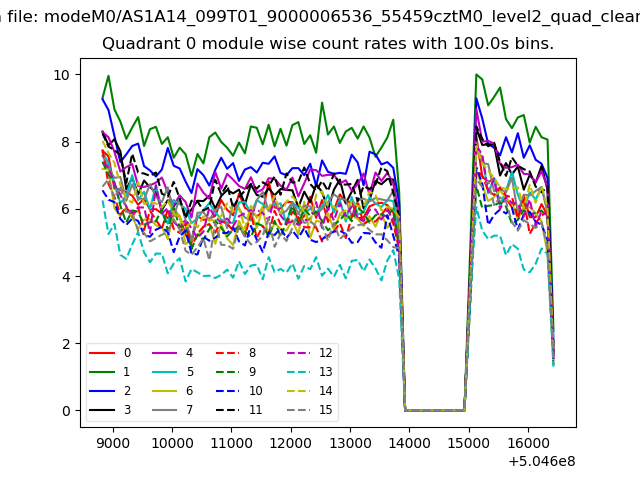

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

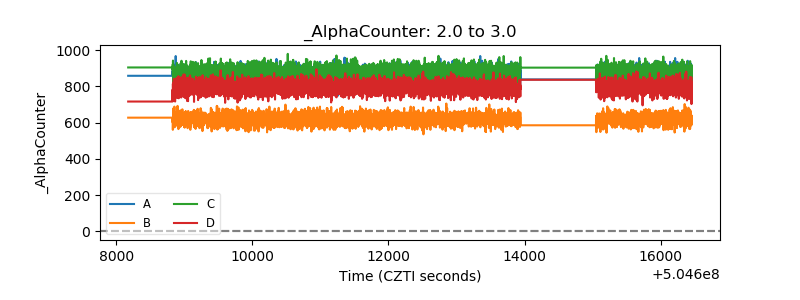

| Alpha Counter |  |

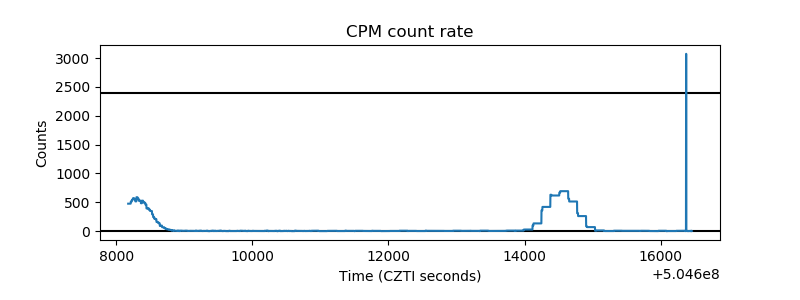

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

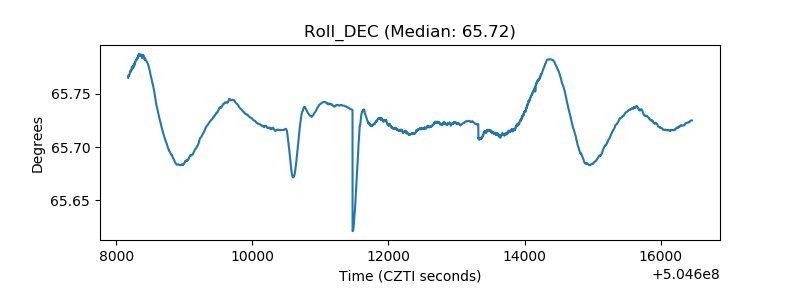

| _Roll_DEC |  |
| _Roll_RA |  |

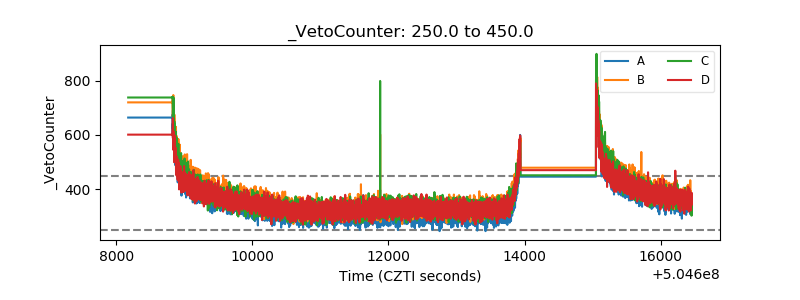

| Veto Counter |  |
