| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55475cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55475cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,312,640 | 95,987,520 |
| Size | 474.3 MB | 91.5 MB |
| Events in quadrant A | 4,034,826 | 639,499 |
| Events in quadrant B | 3,348,118 | 694,918 |
| Events in quadrant C | 4,277,018 | 594,545 |
| Events in quadrant D | 6,249,943 | 529,627 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16250 | 0 |
| B | 0 | 14433 | 0 |
| C | 0 | 17296 | 0 |
| D | 0 | 23026 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6422 | 286 | 4.453441% |
| B | 6422 | 139 | 2.164435% |
| C | 6423 | 323 | 5.028803% |
| D | 6423 | 847 | 13.186984% |

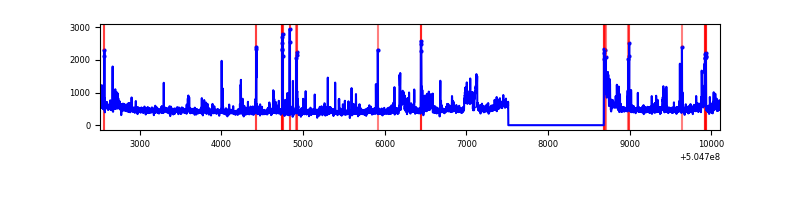

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6422 | 205 | 205 | 2.70% | 3.19% |  |
| B | 7592 | 6422 | 34 | 34 | 0.45% | 0.53% |  |
| C | 7593 | 6423 | 309 | 309 | 4.07% | 4.81% |  |
| D | 7593 | 6423 | 805 | 805 | 10.60% | 12.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 855626 | 4879.34 | 706 | 689 | 175.2 |
| A | 0 | 8 | 203116 | 1155.3 | 706 | 689 | 175.2 |
| A | 3 | 14 | 106803 | 605.62 | 706 | 689 | 175.2 |
| B | 5 | 172 | 341763 | 2322.85 | 693 | 668 | 146.8 |
| B | 0 | 171 | 92538 | 625.63 | 693 | 668 | 146.8 |
| B | 10 | 247 | 71396 | 481.66 | 693 | 668 | 146.8 |
| C | 9 | 38 | 1300403 | 7014.97 | 678 | 670 | 185.3 |
| C | 13 | 3 | 73734 | 394.34 | 678 | 670 | 185.3 |
| C | 12 | 252 | 71835 | 384.09 | 678 | 670 | 185.3 |
| D | 11 | 129 | 1933932 | 10334.25 | 658 | 629 | 187.1 |
| D | 2 | 153 | 412414 | 2201.15 | 658 | 629 | 187.1 |
| D | 8 | 160 | 374885 | 2000.54 | 658 | 629 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

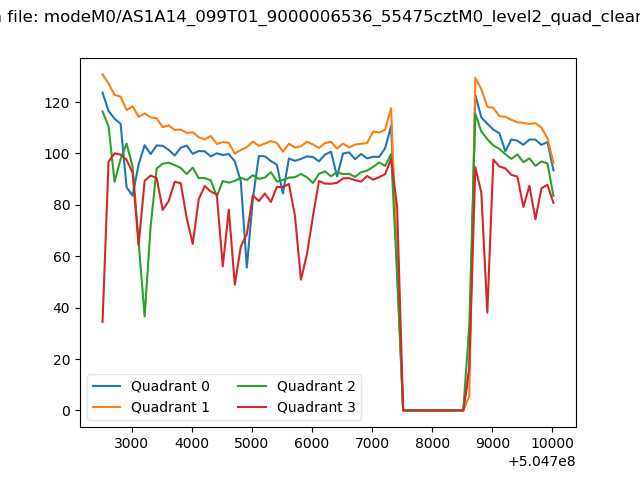

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

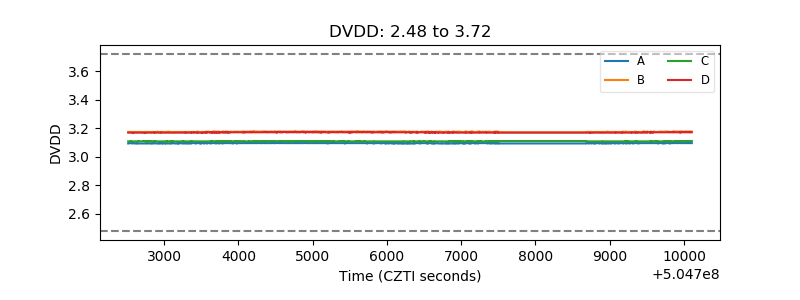

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

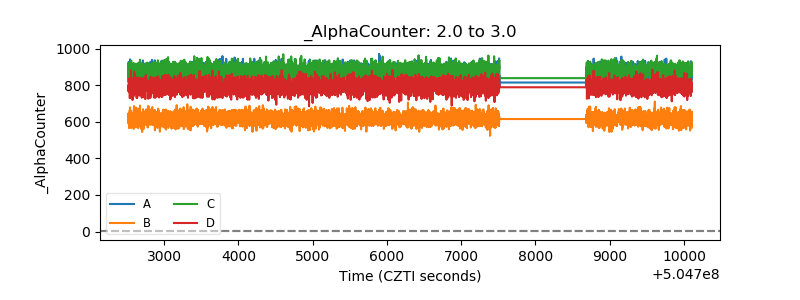

| Alpha Counter |  |

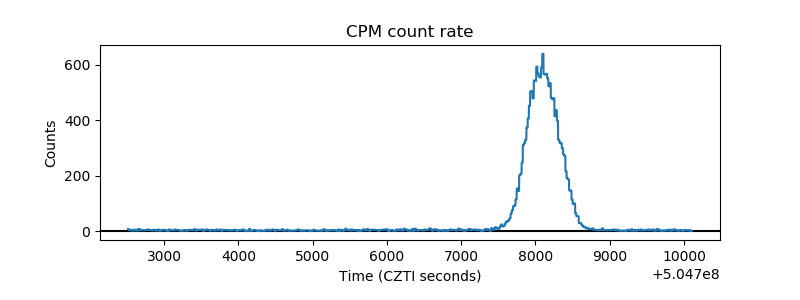

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

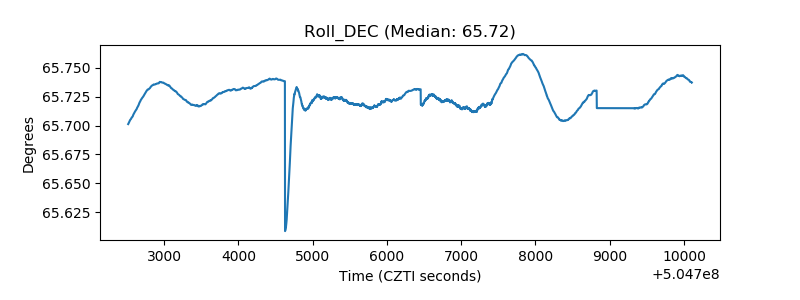

| _Roll_DEC |  |

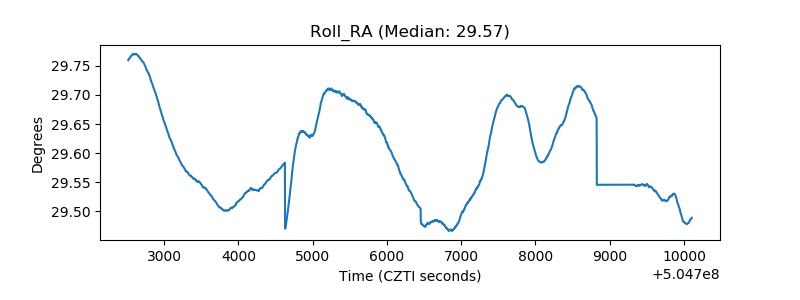

| _Roll_RA |  |

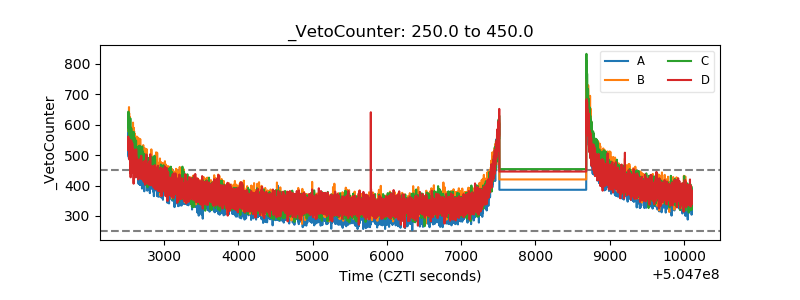

| Veto Counter |  |
