| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55487cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55487cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,181,120 | 89,323,200 |
| Size | 519.9 MB | 85.2 MB |
| Events in quadrant A | 3,730,039 | 604,360 |
| Events in quadrant B | 3,142,504 | 649,303 |
| Events in quadrant C | 3,280,161 | 581,623 |
| Events in quadrant D | 9,523,989 | 416,531 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 2 |
| B | 0 | 134 | 2 |
| C | 0 | 134 | 2 |
| D | 0 | 134 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15943 | 157 |
| B | 0 | 14236 | 165 |
| C | 0 | 14537 | 158 |
| D | 0 | 33423 | 629 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 179 | 2.756391% |
| B | 6491 | 171 | 2.634417% |
| C | 6490 | 97 | 1.494607% |
| D | 6479 | 1962 | 30.282451% |

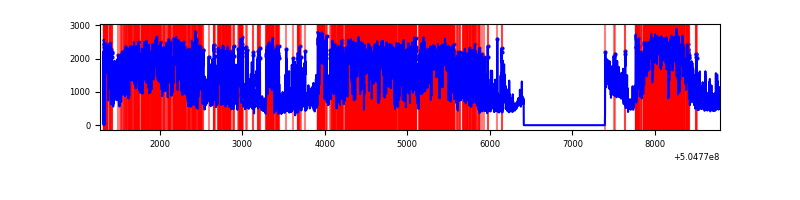

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7512 | 6503 | 95 | 95 | 1.26% | 1.46% |  |
| B | 7506 | 6502 | 20 | 20 | 0.27% | 0.31% |  |
| C | 7508 | 6499 | 55 | 55 | 0.73% | 0.85% |  |
| D | 7469 | 6483 | 1838 | 1838 | 24.61% | 28.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 459747 | 2693.69 | 691 | 673 | 170.4 |
| A | 0 | 8 | 274635 | 1607.52 | 691 | 673 | 170.4 |
| A | 3 | 14 | 265083 | 1551.47 | 691 | 673 | 170.4 |
| B | 5 | 172 | 270590 | 1836.51 | 679 | 653 | 147.0 |
| B | 4 | 206 | 49967 | 335.51 | 679 | 653 | 147.0 |
| B | 5 | 236 | 41439 | 277.49 | 679 | 653 | 147.0 |
| C | 13 | 3 | 347348 | 1894.07 | 667 | 659 | 183.0 |
| C | 9 | 38 | 95601 | 518.7 | 667 | 659 | 183.0 |
| C | 12 | 252 | 69754 | 377.49 | 667 | 659 | 183.0 |
| D | 7 | 70 | 4594638 | 27038.55 | 602 | 573 | 169.9 |
| D | 10 | 181 | 1261347 | 7420.33 | 602 | 573 | 169.9 |
| D | 8 | 160 | 824253 | 4847.8 | 602 | 573 | 169.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

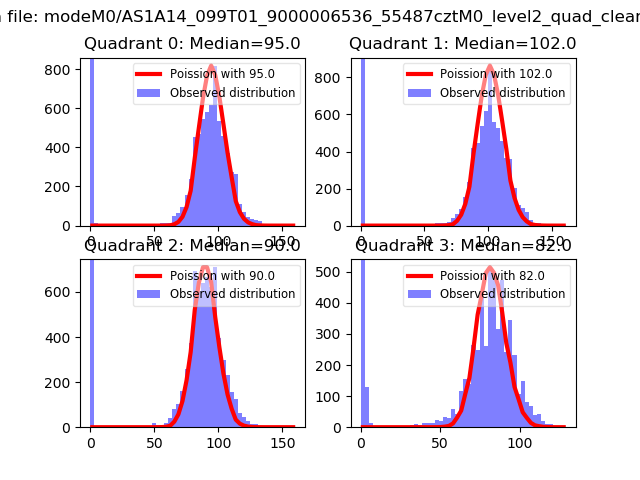

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

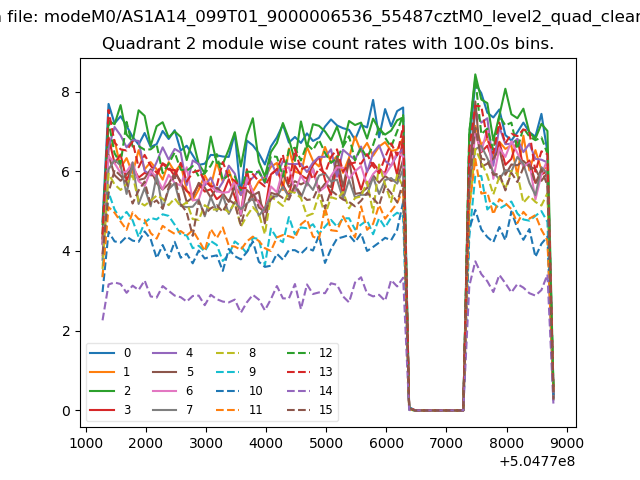

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

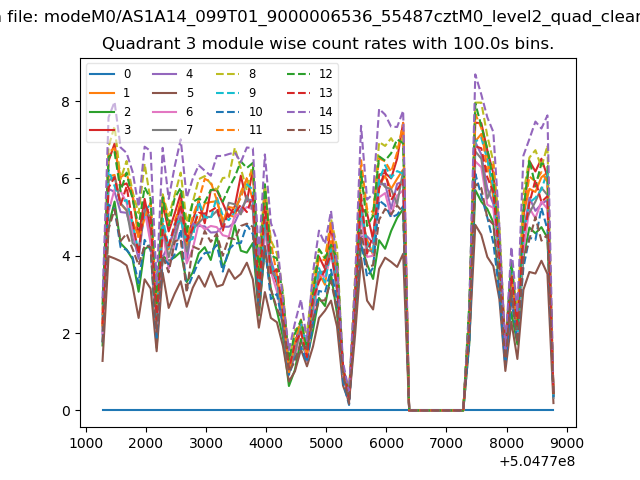

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

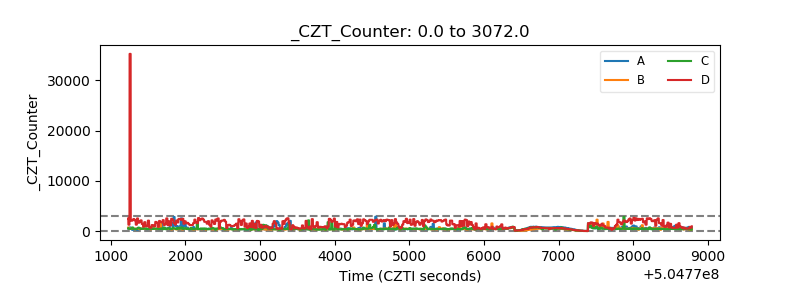

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

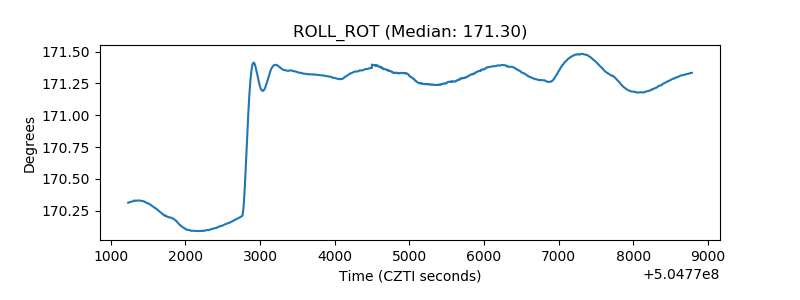

| _ROLL_ROT |  |
| _Roll_DEC |  |

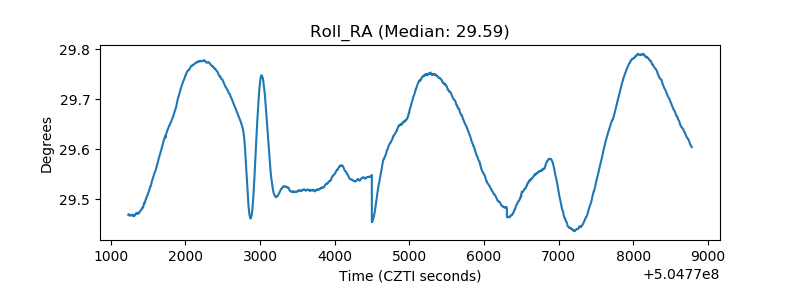

| _Roll_RA |  |

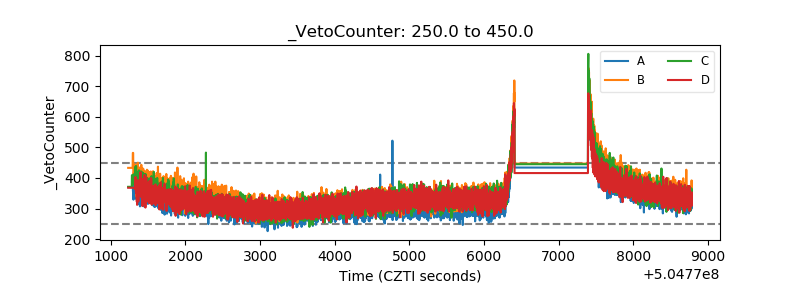

| Veto Counter |  |
