| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55488cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55488cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,837,440 | 94,881,600 |
| Size | 473.8 MB | 90.5 MB |
| Events in quadrant A | 3,964,590 | 633,156 |
| Events in quadrant B | 3,574,452 | 675,272 |
| Events in quadrant C | 3,407,982 | 597,914 |
| Events in quadrant D | 6,935,802 | 510,377 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16377 | 2 |
| B | 0 | 15121 | 2 |
| C | 0 | 14834 | 2 |
| D | 0 | 25226 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6544 | 231 | 3.529951% |
| B | 6544 | 249 | 3.805012% |
| C | 6544 | 160 | 2.444988% |
| D | 6544 | 983 | 15.021394% |

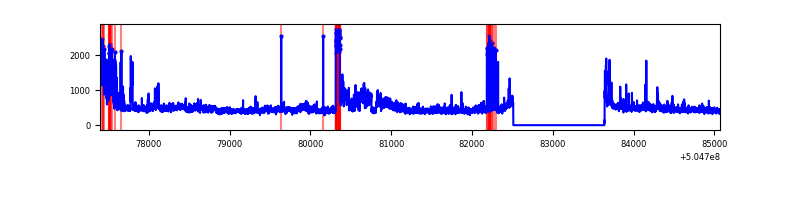

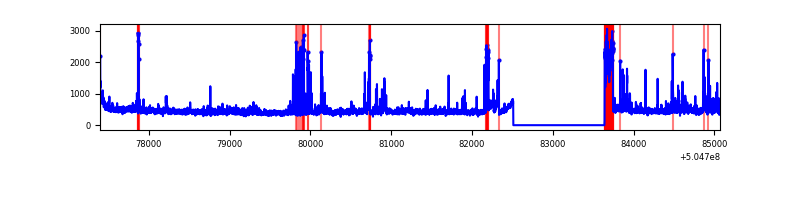

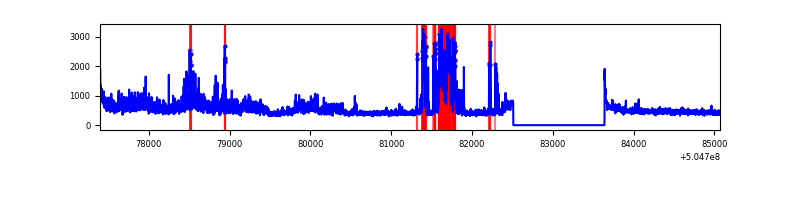

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7674 | 6545 | 171 | 171 | 2.23% | 2.61% |  |
| B | 7674 | 6545 | 82 | 82 | 1.07% | 1.25% |  |
| C | 7674 | 6545 | 110 | 110 | 1.43% | 1.68% |  |
| D | 7674 | 6545 | 882 | 882 | 11.49% | 13.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 420740 | 2422.91 | 708 | 692 | 173.4 |
| A | 3 | 78 | 412862 | 2377.47 | 708 | 692 | 173.4 |
| A | 0 | 8 | 299322 | 1722.55 | 708 | 692 | 173.4 |
| B | 5 | 172 | 636529 | 4247.12 | 697 | 671 | 149.7 |
| B | 2 | 249 | 79395 | 525.83 | 697 | 671 | 149.7 |
| B | 10 | 247 | 20255 | 130.81 | 697 | 671 | 149.7 |
| C | 13 | 3 | 309891 | 1668.13 | 677 | 669 | 185.4 |
| C | 9 | 38 | 186815 | 1004.19 | 677 | 669 | 185.4 |
| C | 15 | 147 | 143623 | 771.18 | 677 | 669 | 185.4 |
| D | 7 | 70 | 2461596 | 13285.89 | 657 | 625 | 185.2 |
| D | 8 | 160 | 860484 | 4642.07 | 657 | 625 | 185.2 |
| D | 11 | 129 | 344816 | 1858.16 | 657 | 625 | 185.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

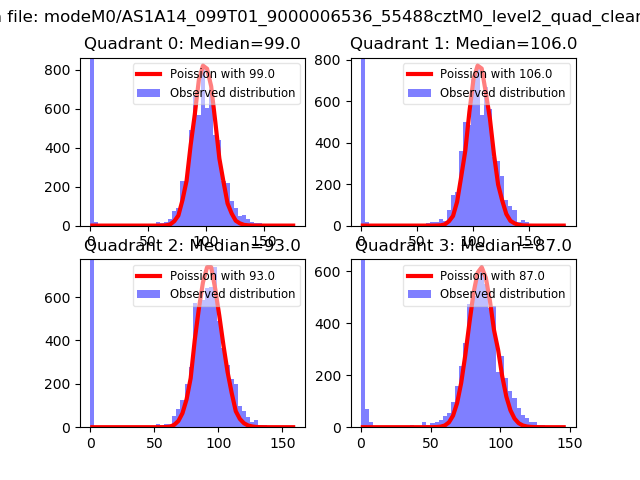

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

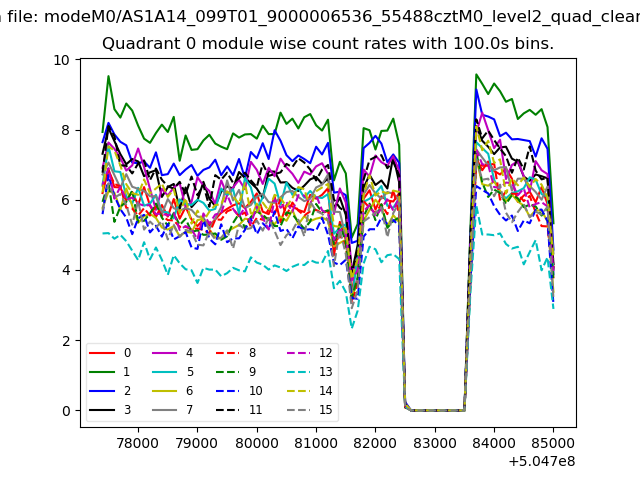

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

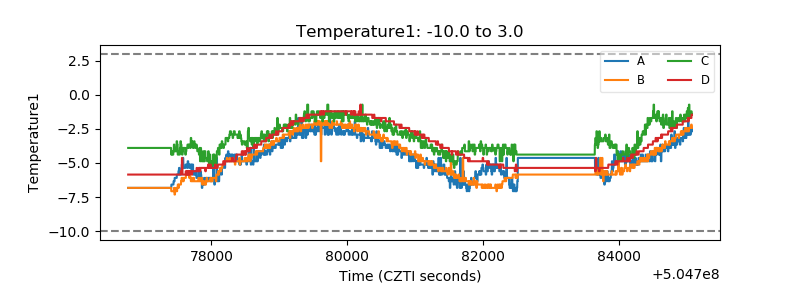

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

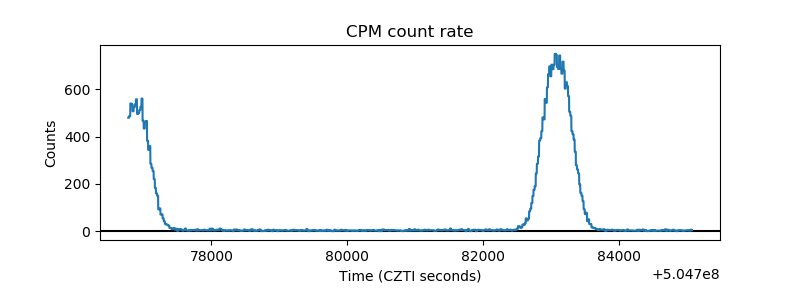

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

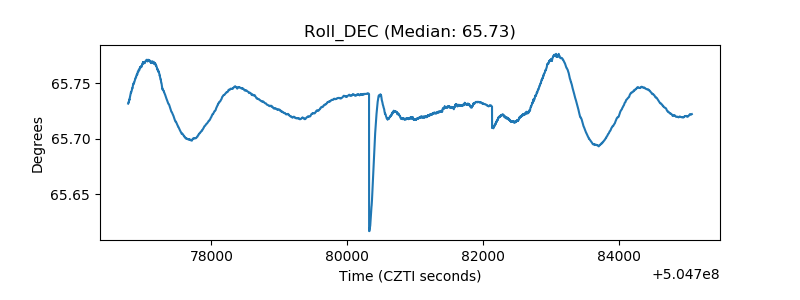

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
