| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55514cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55514cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,740,480 | 78,641,280 |
| Size | 622.5 MB | 75.0 MB |
| Events in quadrant A | 3,104,235 | 593,084 |
| Events in quadrant B | 11,651,140 | 277,315 |
| Events in quadrant C | 4,646,747 | 529,555 |
| Events in quadrant D | 4,252,001 | 524,927 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14286 | 1 |
| B | 0 | 39036 | 1 |
| C | 0 | 18703 | 1 |
| D | 0 | 17346 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6535 | 115 | 1.759755% |
| B | 6535 | 3880 | 59.372609% |
| C | 6536 | 621 | 9.501224% |
| D | 6536 | 256 | 3.916769% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

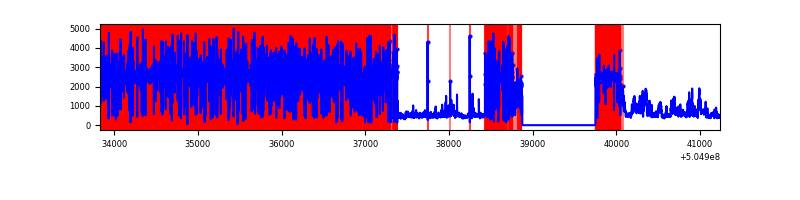

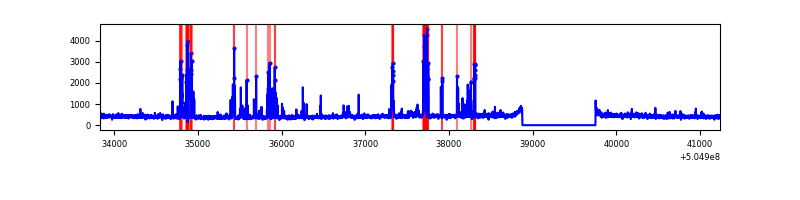

| A | 7410 | 6536 | 70 | 70 | 0.94% | 1.07% |  |
| B | 7410 | 6536 | 3385 | 3385 | 45.68% | 51.79% |  |
| C | 7411 | 6537 | 438 | 438 | 5.91% | 6.70% |  |
| D | 7411 | 6537 | 206 | 206 | 2.78% | 3.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 436128 | 2628.68 | 674 | 658 | 165.7 |
| A | 4 | 159 | 14351 | 82.66 | 674 | 658 | 165.7 |
| A | 13 | 254 | 12117 | 69.17 | 674 | 658 | 165.7 |
| B | 5 | 172 | 9975199 | 110284.21 | 410 | 394 | 90.4 |
| B | 10 | 247 | 24000 | 260.99 | 410 | 394 | 90.4 |
| B | 12 | 111 | 10683 | 113.76 | 410 | 394 | 90.4 |
| C | 9 | 38 | 1855156 | 10518.07 | 638 | 631 | 176.3 |
| C | 13 | 3 | 84337 | 474.74 | 638 | 631 | 176.3 |
| C | 1 | 16 | 77808 | 437.71 | 638 | 631 | 176.3 |
| D | 11 | 129 | 542644 | 2970.18 | 643 | 615 | 182.5 |
| D | 8 | 160 | 484176 | 2649.79 | 643 | 615 | 182.5 |
| D | 2 | 153 | 295539 | 1616.11 | 643 | 615 | 182.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

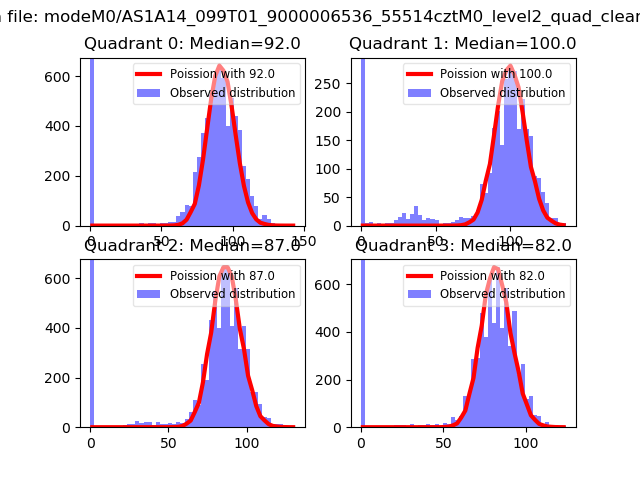

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

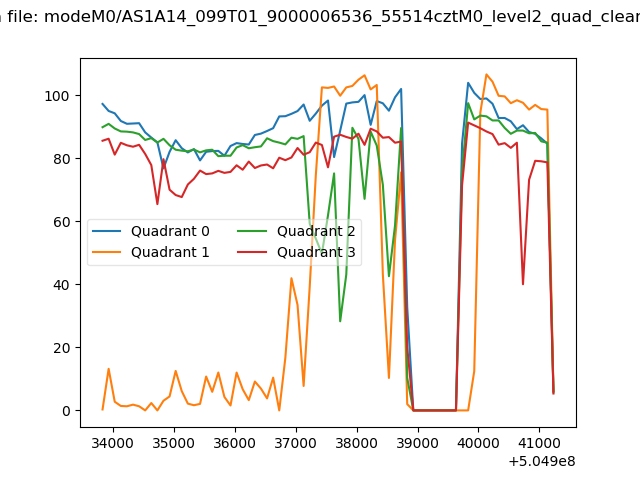

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

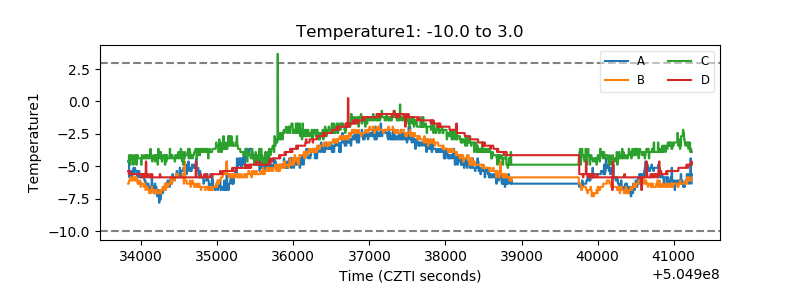

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

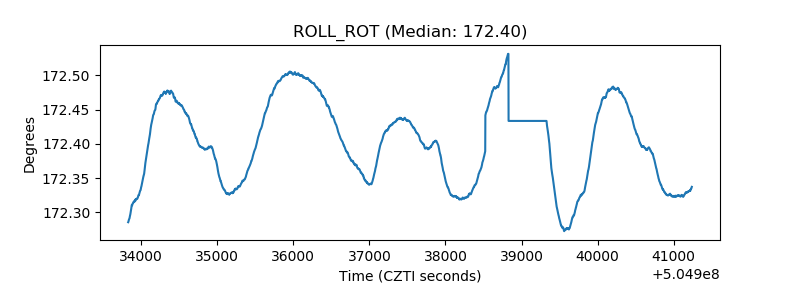

| _ROLL_ROT |  |
| _Roll_DEC |  |

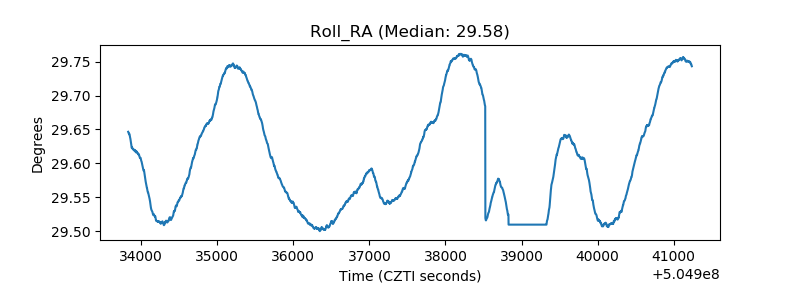

| _Roll_RA |  |

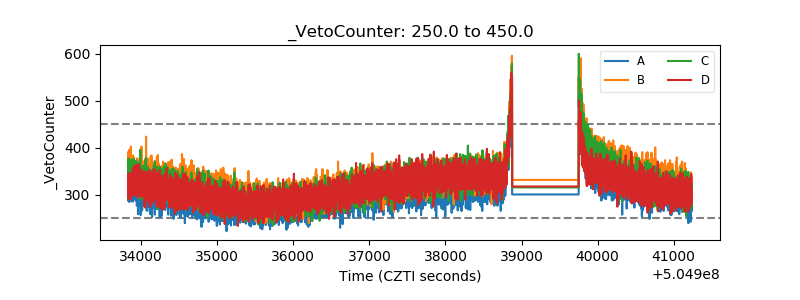

| Veto Counter |  |
