| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55518cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55518cztM0_level2_quad_clean.evt |
| Size (bytes) | 398,183,040 | 91,382,400 |
| Size | 379.7 MB | 87.1 MB |
| Events in quadrant A | 3,572,477 | 591,832 |
| Events in quadrant B | 2,815,083 | 647,789 |
| Events in quadrant C | 3,138,264 | 567,112 |
| Events in quadrant D | 4,737,172 | 533,012 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14953 | 1 |
| B | 0 | 12972 | 1 |
| C | 0 | 13869 | 1 |
| D | 0 | 18216 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6123 | 268 | 4.376939% |
| B | 6122 | 122 | 1.992813% |
| C | 6123 | 155 | 2.531439% |
| D | 6123 | 217 | 3.544014% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7233 | 6124 | 137 | 137 | 1.89% | 2.24% |  |
| B | 7232 | 6123 | 4 | 4 | 0.06% | 0.07% |  |
| C | 7233 | 6124 | 75 | 75 | 1.04% | 1.22% |  |
| D | 7233 | 6124 | 112 | 112 | 1.55% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 603212 | 3651.18 | 664 | 649 | 165.0 |
| A | 0 | 31 | 311958 | 1886.35 | 664 | 649 | 165.0 |
| A | 4 | 159 | 45104 | 269.37 | 664 | 649 | 165.0 |
| B | 5 | 172 | 79089 | 556.51 | 657 | 631 | 141.0 |
| B | 10 | 247 | 34647 | 241.28 | 657 | 631 | 141.0 |
| B | 4 | 206 | 27257 | 188.86 | 657 | 631 | 141.0 |
| C | 13 | 3 | 395444 | 2254.21 | 640 | 634 | 175.1 |
| C | 12 | 252 | 100831 | 572.08 | 640 | 634 | 175.1 |
| C | 14 | 254 | 42418 | 238.57 | 640 | 634 | 175.1 |
| D | 7 | 70 | 1152221 | 6376.97 | 640 | 613 | 180.6 |
| D | 11 | 129 | 242172 | 1337.62 | 640 | 613 | 180.6 |
| D | 2 | 153 | 213666 | 1179.77 | 640 | 613 | 180.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

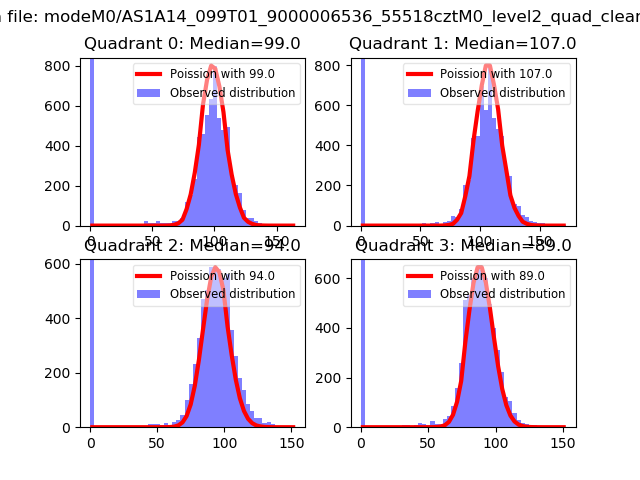

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

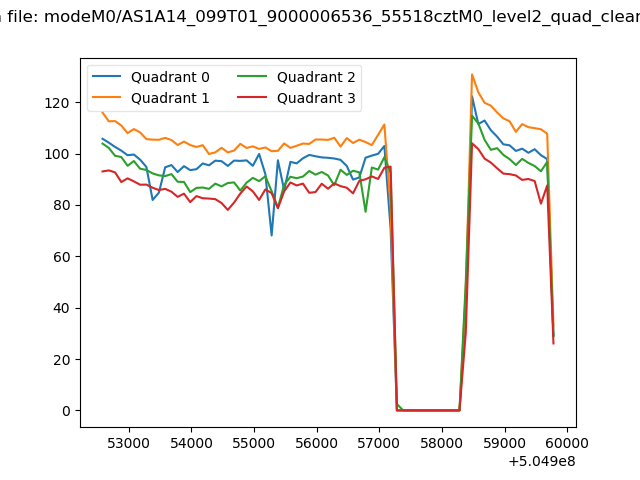

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

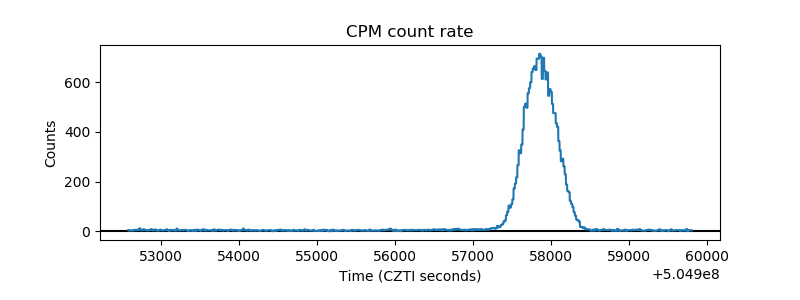

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

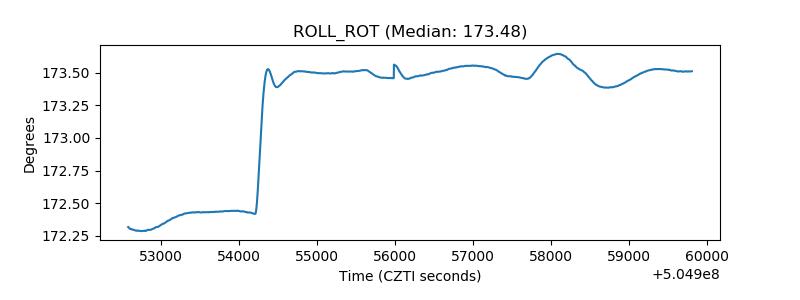

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

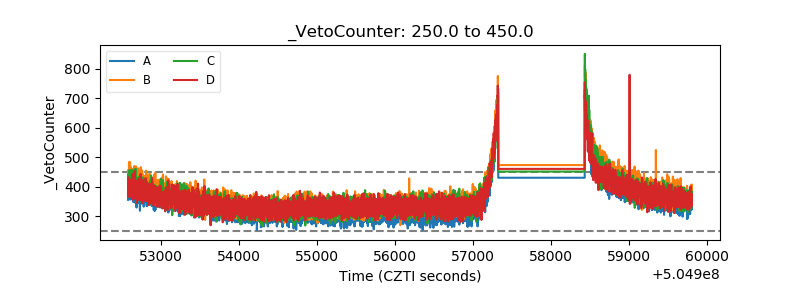

| Veto Counter |  |
