| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55521cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55521cztM0_level2_quad_clean.evt |
| Size (bytes) | 400,495,680 | 88,329,600 |
| Size | 381.9 MB | 84.2 MB |
| Events in quadrant A | 2,661,197 | 592,495 |
| Events in quadrant B | 3,225,479 | 617,968 |
| Events in quadrant C | 2,929,287 | 553,827 |
| Events in quadrant D | 5,527,721 | 478,720 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12777 | 1 |
| B | 0 | 14221 | 1 |
| C | 0 | 13582 | 1 |
| D | 0 | 20776 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 56 | 0.906002% |
| B | 6181 | 193 | 3.122472% |
| C | 6181 | 83 | 1.342825% |
| D | 6182 | 759 | 12.277580% |

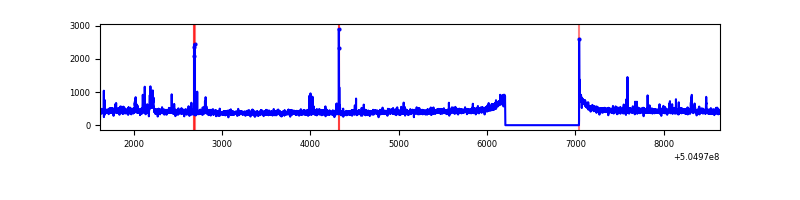

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7017 | 6182 | 6 | 6 | 0.09% | 0.10% |  |
| B | 7017 | 6182 | 135 | 135 | 1.92% | 2.18% |  |
| C | 7017 | 6181 | 68 | 68 | 0.97% | 1.10% |  |
| D | 7018 | 6183 | 625 | 625 | 8.91% | 10.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 29209 | 175.67 | 651 | 632 | 162.7 |
| A | 3 | 62 | 22159 | 132.33 | 651 | 632 | 162.7 |
| A | 13 | 254 | 14358 | 84.38 | 651 | 632 | 162.7 |
| B | 5 | 236 | 344533 | 2529.61 | 635 | 612 | 136.0 |
| B | 5 | 172 | 94061 | 687.34 | 635 | 612 | 136.0 |
| B | 10 | 247 | 83385 | 608.81 | 635 | 612 | 136.0 |
| C | 13 | 3 | 169652 | 985.31 | 630 | 624 | 171.5 |
| C | 10 | 19 | 141828 | 823.11 | 630 | 624 | 171.5 |
| C | 14 | 254 | 70961 | 410.01 | 630 | 624 | 171.5 |
| D | 11 | 129 | 1142240 | 6678.5 | 604 | 578 | 170.9 |
| D | 8 | 160 | 994889 | 5816.52 | 604 | 578 | 170.9 |
| D | 2 | 31 | 270021 | 1576.19 | 604 | 578 | 170.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

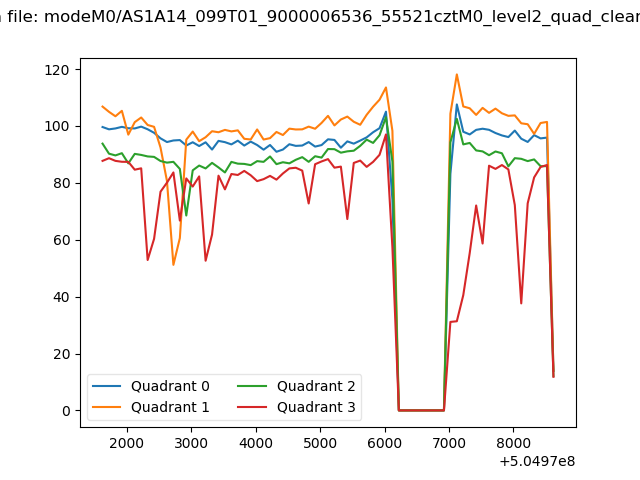

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

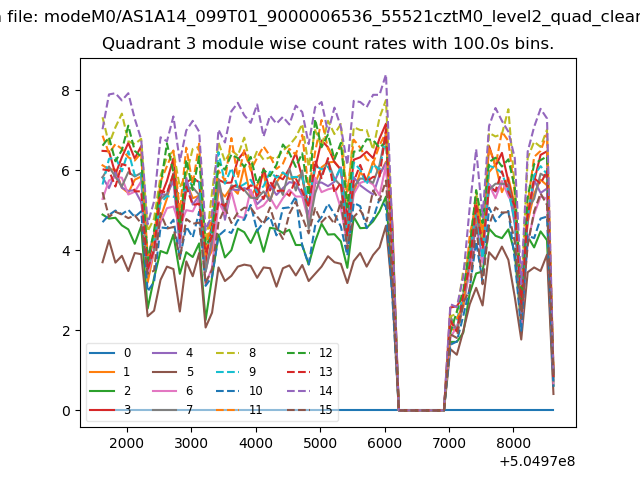

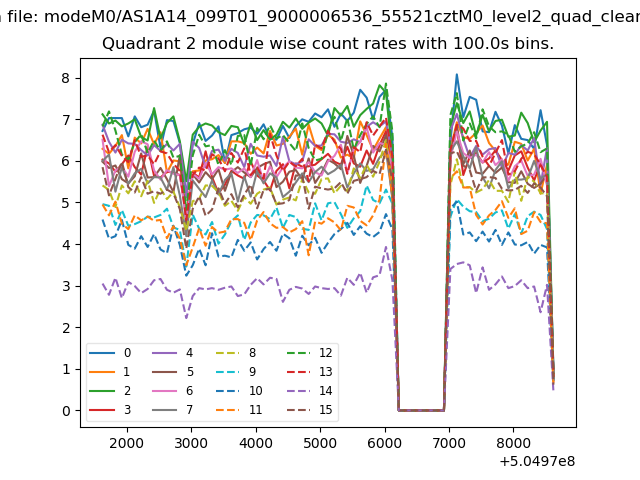

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

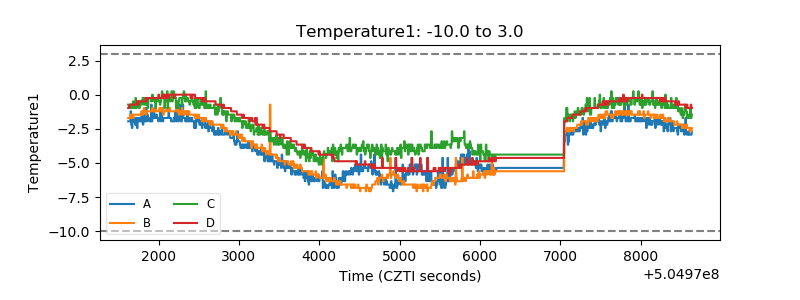

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

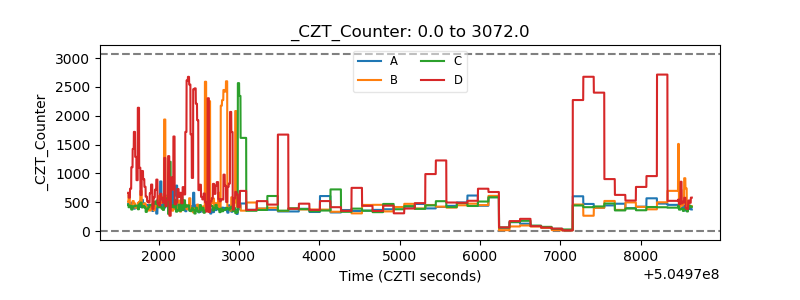

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

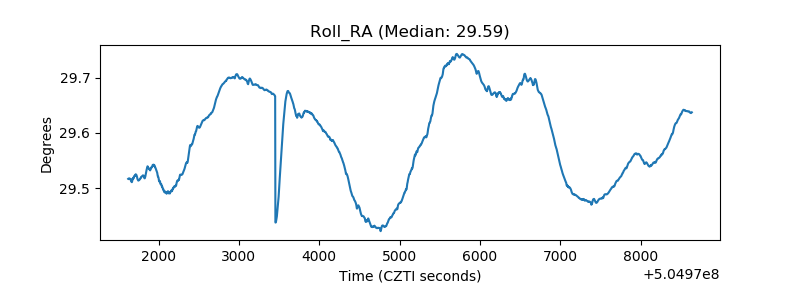

| _Roll_RA |  |
| Veto Counter |  |
