| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55534cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55534cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,881,600 | 92,266,560 |
| Size | 459.6 MB | 88.0 MB |
| Events in quadrant A | 3,002,500 | 626,063 |
| Events in quadrant B | 3,247,715 | 664,304 |
| Events in quadrant C | 2,989,852 | 584,349 |
| Events in quadrant D | 8,106,907 | 478,035 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13314 | 2 |
| B | 0 | 14054 | 2 |
| C | 0 | 13596 | 2 |
| D | 0 | 28507 | 12 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6317 | 70 | 1.108121% |
| B | 6317 | 123 | 1.947127% |
| C | 6317 | 71 | 1.123951% |
| D | 6314 | 1119 | 17.722521% |

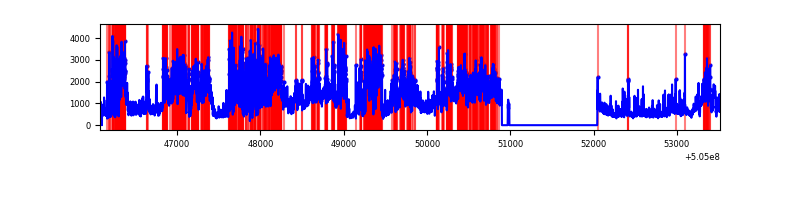

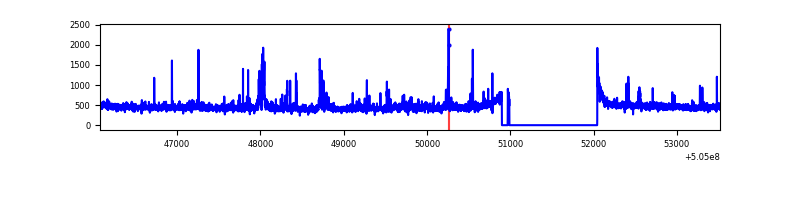

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7442 | 6318 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7442 | 6318 | 38 | 38 | 0.51% | 0.60% |  |
| C | 7442 | 6318 | 28 | 28 | 0.38% | 0.44% |  |
| D | 7442 | 6316 | 1079 | 1079 | 14.50% | 17.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 205 | 108370 | 628.31 | 684 | 666 | 171.4 |
| A | 3 | 14 | 102021 | 591.27 | 684 | 666 | 171.4 |
| A | 7 | 14 | 39942 | 229.12 | 684 | 666 | 171.4 |
| B | 4 | 206 | 192716 | 1350.66 | 666 | 644 | 142.2 |
| B | 5 | 236 | 165237 | 1157.42 | 666 | 644 | 142.2 |
| B | 10 | 247 | 66652 | 464.17 | 666 | 644 | 142.2 |
| C | 15 | 178 | 176405 | 984.54 | 653 | 644 | 178.5 |
| C | 13 | 3 | 100708 | 560.52 | 653 | 644 | 178.5 |
| C | 9 | 38 | 88884 | 494.28 | 653 | 644 | 178.5 |
| D | 11 | 129 | 5024413 | 28203.03 | 625 | 597 | 178.1 |
| D | 6 | 239 | 133272 | 744.82 | 625 | 597 | 178.1 |
| D | 2 | 153 | 107637 | 600.91 | 625 | 597 | 178.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

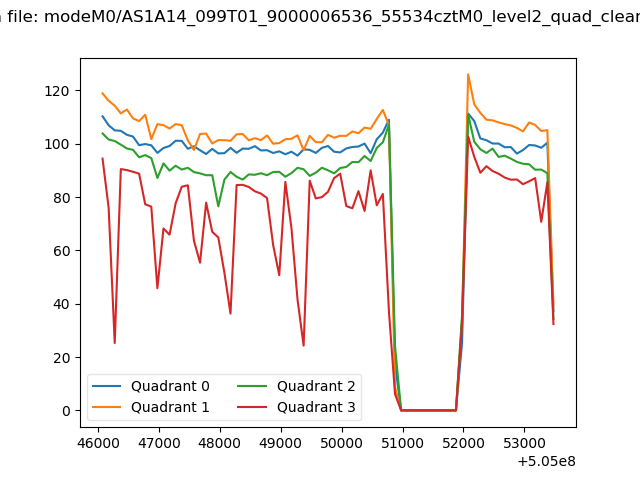

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

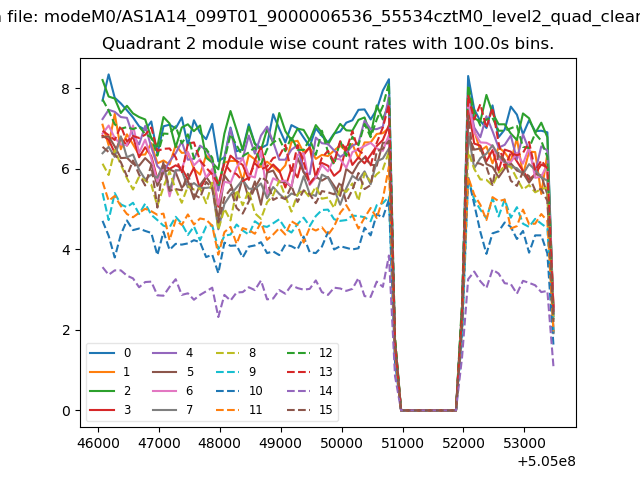

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

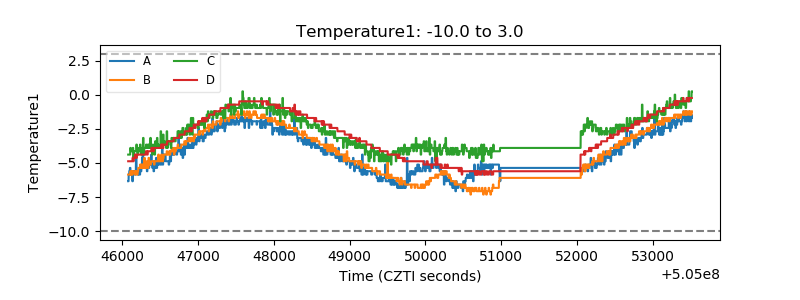

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

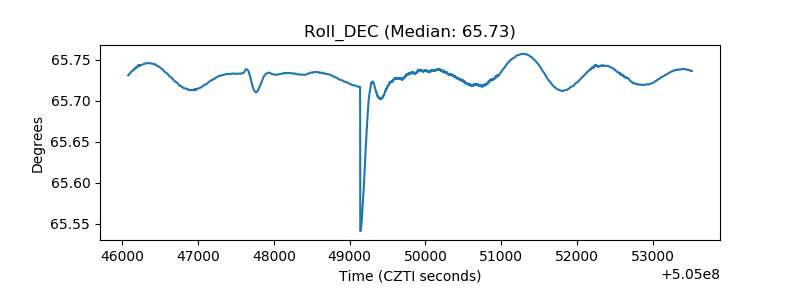

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
