| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T01_9000006536_55536cztM0_level2.fits | modeM0/AS1A14_099T01_9000006536_55536cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,521,280 | 94,769,280 |
| Size | 464.0 MB | 90.4 MB |
| Events in quadrant A | 3,537,521 | 636,517 |
| Events in quadrant B | 3,996,408 | 663,151 |
| Events in quadrant C | 3,198,701 | 598,110 |
| Events in quadrant D | 6,753,974 | 502,654 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 2 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15369 | 103 |
| B | 0 | 16730 | 112 |
| C | 0 | 14766 | 132 |
| D | 0 | 24895 | 124 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6734 | 126 | 1.871102% |
| B | 6726 | 286 | 4.252156% |
| C | 6724 | 77 | 1.145152% |
| D | 6722 | 1010 | 15.025290% |

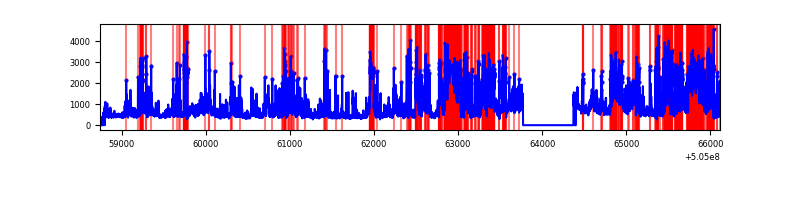

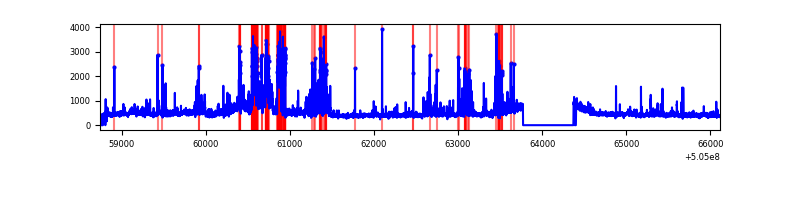

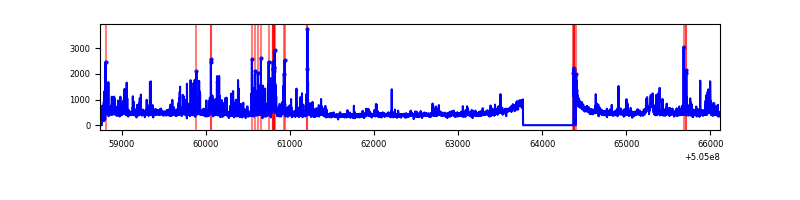

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7375 | 6745 | 30 | 30 | 0.41% | 0.44% |  |
| B | 7378 | 6736 | 172 | 172 | 2.33% | 2.55% |  |
| C | 7378 | 6737 | 22 | 22 | 0.30% | 0.33% |  |
| D | 7372 | 6735 | 847 | 847 | 11.49% | 12.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 161 | 379422 | 2118.59 | 713 | 694 | 178.8 |
| A | 4 | 205 | 86884 | 482.14 | 713 | 694 | 178.8 |
| A | 3 | 14 | 75037 | 415.87 | 713 | 694 | 178.8 |
| B | 4 | 206 | 607798 | 4120.5 | 691 | 666 | 147.3 |
| B | 7 | 0 | 187970 | 1271.2 | 691 | 666 | 147.3 |
| B | 1 | 207 | 167529 | 1132.47 | 691 | 666 | 147.3 |
| C | 15 | 178 | 216819 | 1157.8 | 692 | 685 | 186.7 |
| C | 12 | 252 | 79229 | 420.75 | 692 | 685 | 186.7 |
| C | 9 | 38 | 45088 | 237.86 | 692 | 685 | 186.7 |
| D | 11 | 129 | 3073391 | 16464.88 | 656 | 625 | 186.6 |
| D | 6 | 239 | 633117 | 3389.1 | 656 | 625 | 186.6 |
| D | 2 | 31 | 156430 | 834.85 | 656 | 625 | 186.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

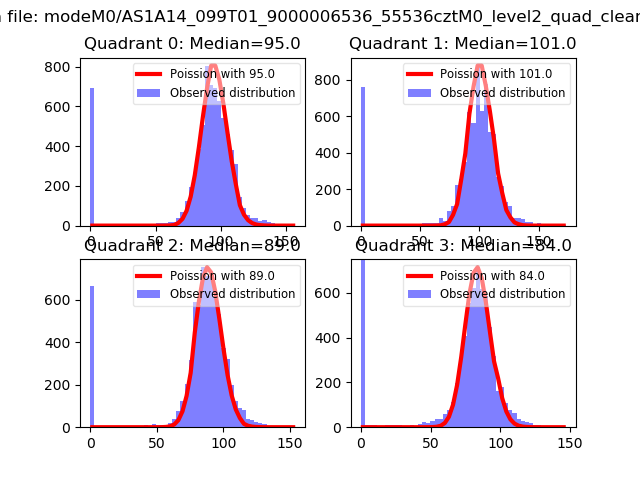

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

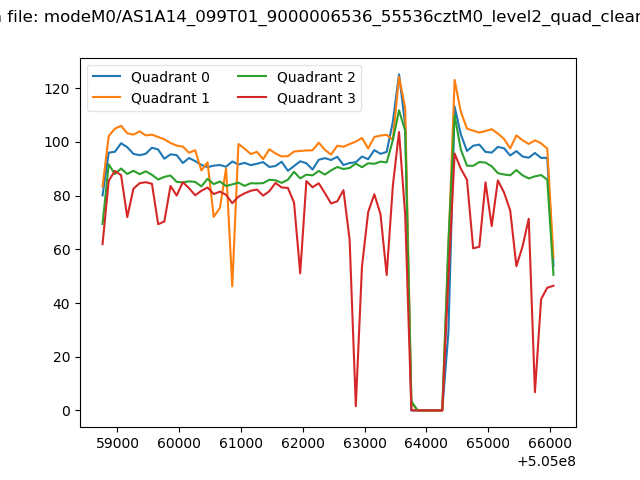

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

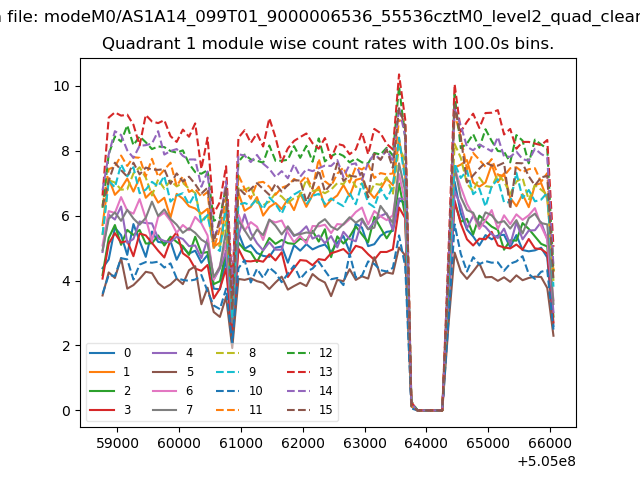

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

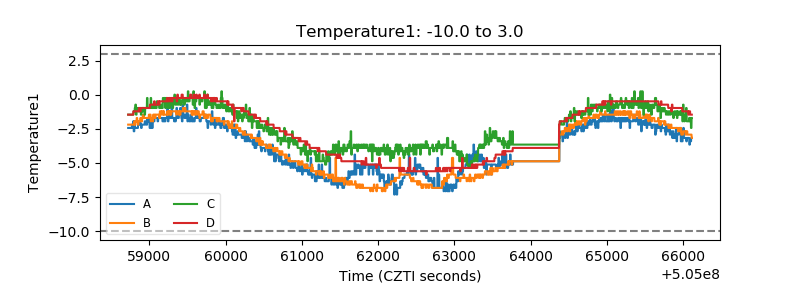

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

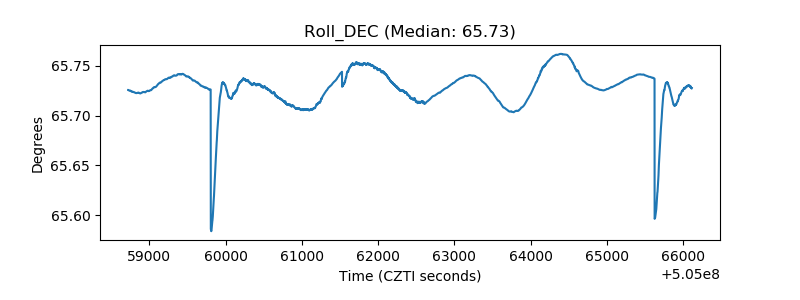

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
