| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55558cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55558cztM0_level2_quad_clean.evt |
| Size (bytes) | 357,937,920 | 88,966,080 |
| Size | 341.4 MB | 84.8 MB |
| Events in quadrant A | 2,597,637 | 575,516 |
| Events in quadrant B | 2,641,373 | 616,075 |
| Events in quadrant C | 3,419,949 | 546,545 |
| Events in quadrant D | 4,098,141 | 514,571 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12813 | 1 |
| B | 0 | 13001 | 1 |
| C | 0 | 14785 | 1 |
| D | 0 | 17031 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 32 | 0.506169% |
| B | 6322 | 69 | 1.091427% |
| C | 6322 | 143 | 2.261942% |
| D | 6322 | 164 | 2.594116% |

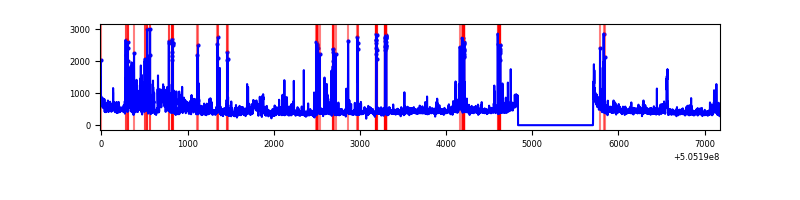

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7193 | 6323 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7193 | 6322 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7193 | 6322 | 104 | 104 | 1.45% | 1.65% |  |
| D | 7193 | 6322 | 180 | 180 | 2.50% | 2.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 159 | 27309 | 168.22 | 642 | 627 | 158.6 |
| A | 4 | 3 | 21375 | 130.81 | 642 | 627 | 158.6 |
| A | 0 | 8 | 17003 | 103.24 | 642 | 627 | 158.6 |
| B | 7 | 252 | 60828 | 441.62 | 635 | 614 | 136.3 |
| B | 10 | 247 | 17473 | 123.65 | 635 | 614 | 136.3 |
| B | 12 | 111 | 16827 | 118.91 | 635 | 614 | 136.3 |
| C | 9 | 38 | 373534 | 2182.63 | 618 | 612 | 170.9 |
| C | 13 | 3 | 249193 | 1454.89 | 618 | 612 | 170.9 |
| C | 15 | 199 | 231965 | 1354.06 | 618 | 612 | 170.9 |
| D | 8 | 245 | 746162 | 4243.35 | 613 | 586 | 175.7 |
| D | 11 | 129 | 503480 | 2862.16 | 613 | 586 | 175.7 |
| D | 2 | 172 | 270759 | 1537.65 | 613 | 586 | 175.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

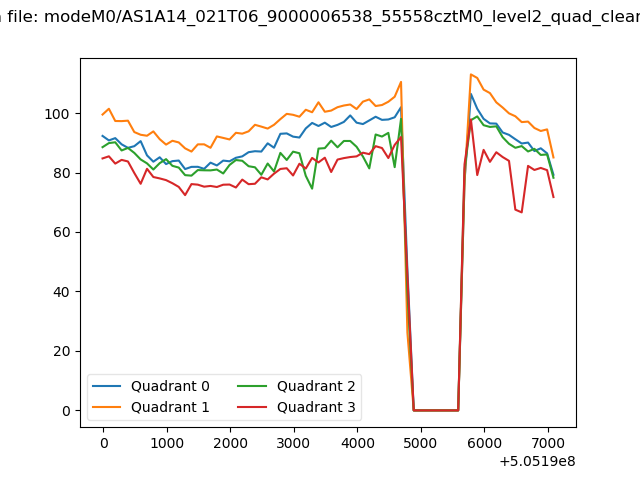

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

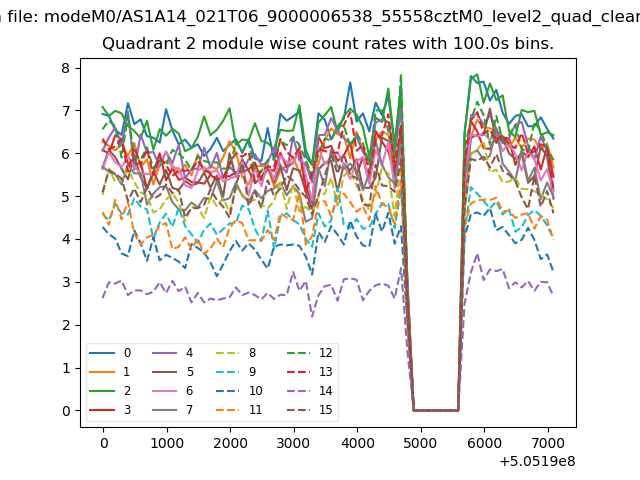

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

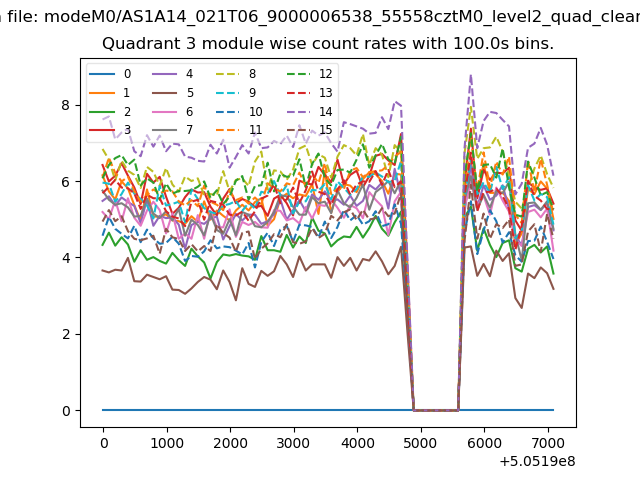

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

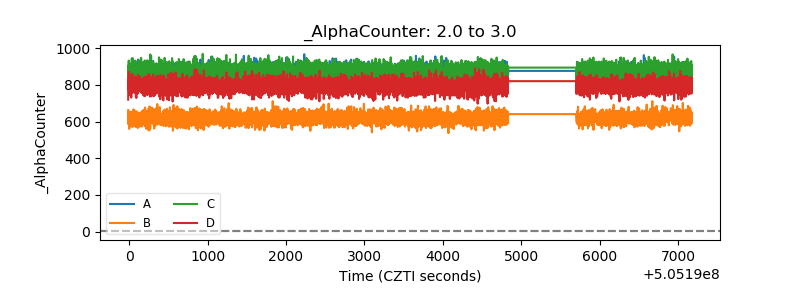

| Alpha Counter |  |

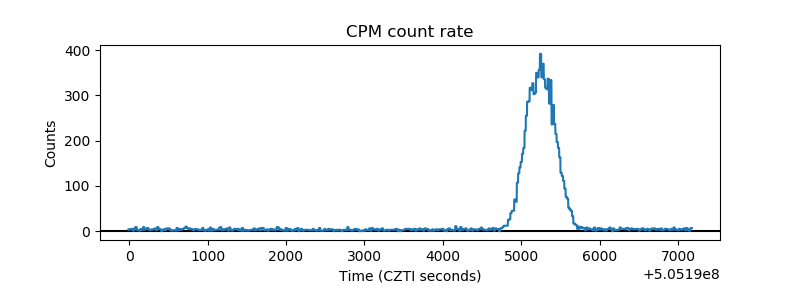

| _CPM_Rate |  |

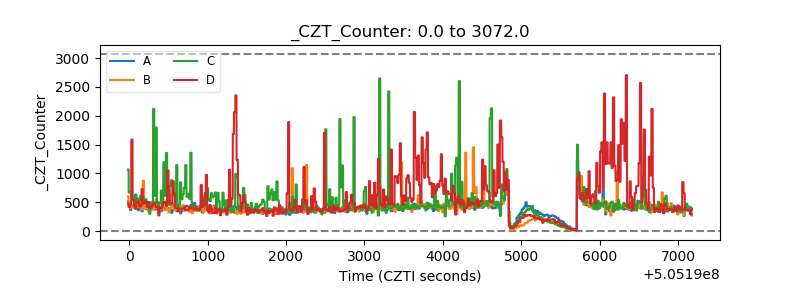

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

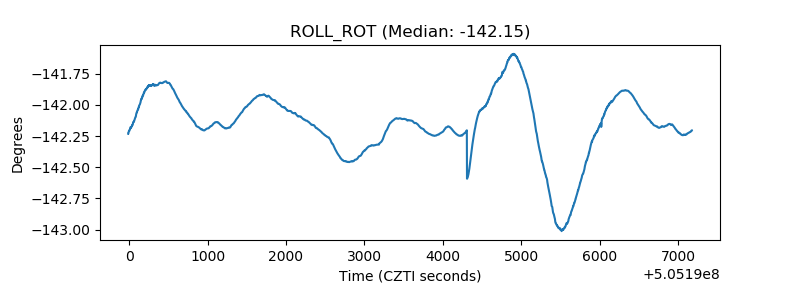

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
