| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55561cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55561cztM0_level2_quad_clean.evt |
| Size (bytes) | 371,626,560 | 91,200,960 |
| Size | 354.4 MB | 87.0 MB |
| Events in quadrant A | 2,674,031 | 597,640 |
| Events in quadrant B | 2,658,259 | 643,050 |
| Events in quadrant C | 3,962,207 | 552,211 |
| Events in quadrant D | 3,974,355 | 531,457 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12846 | 14 |
| B | 0 | 12877 | 7 |
| C | 0 | 16250 | 19 |
| D | 0 | 16397 | 24 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6263 | 64 | 1.021875% |
| B | 6264 | 78 | 1.245211% |
| C | 6260 | 200 | 3.194888% |
| D | 6260 | 81 | 1.293930% |

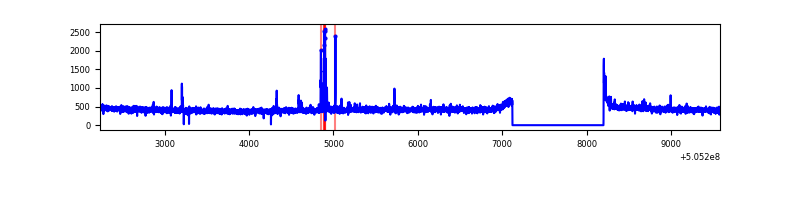

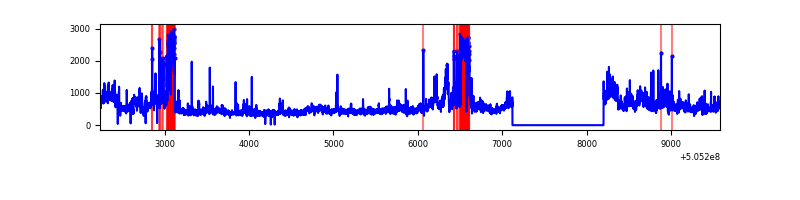

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7347 | 6267 | 7 | 7 | 0.10% | 0.11% |  |
| B | 7347 | 6267 | 10 | 10 | 0.14% | 0.16% |  |
| C | 7347 | 6267 | 171 | 171 | 2.33% | 2.73% |  |
| D | 7347 | 6267 | 40 | 40 | 0.54% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 55956 | 342.25 | 653 | 636 | 161.6 |
| A | 3 | 14 | 43090 | 262.65 | 653 | 636 | 161.6 |
| A | 8 | 6 | 21647 | 129.99 | 653 | 636 | 161.6 |
| B | 7 | 252 | 30127 | 216.02 | 642 | 620 | 136.6 |
| B | 4 | 206 | 21790 | 154.98 | 642 | 620 | 136.6 |
| B | 12 | 111 | 16701 | 117.73 | 642 | 620 | 136.6 |
| C | 13 | 3 | 1225669 | 7082.32 | 619 | 611 | 173.0 |
| C | 9 | 38 | 202650 | 1168.03 | 619 | 611 | 173.0 |
| C | 15 | 178 | 48149 | 274.83 | 619 | 611 | 173.0 |
| D | 11 | 129 | 687102 | 3868.61 | 624 | 597 | 177.5 |
| D | 8 | 160 | 558777 | 3145.47 | 624 | 597 | 177.5 |
| D | 2 | 172 | 80985 | 453.0 | 624 | 597 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

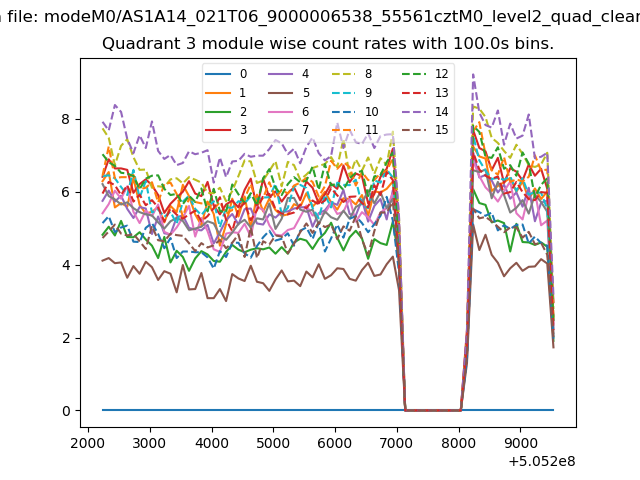

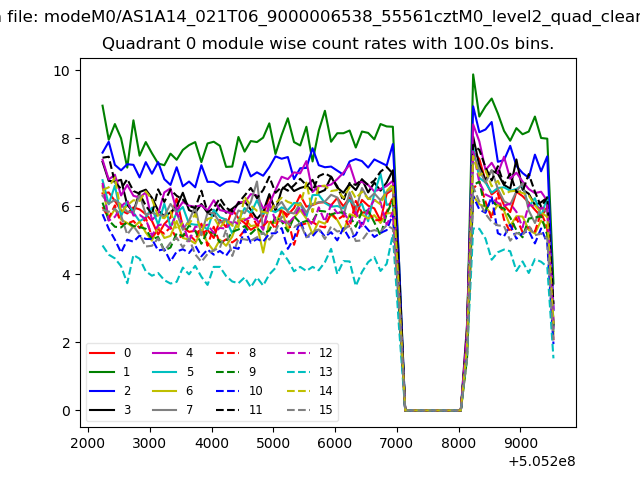

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

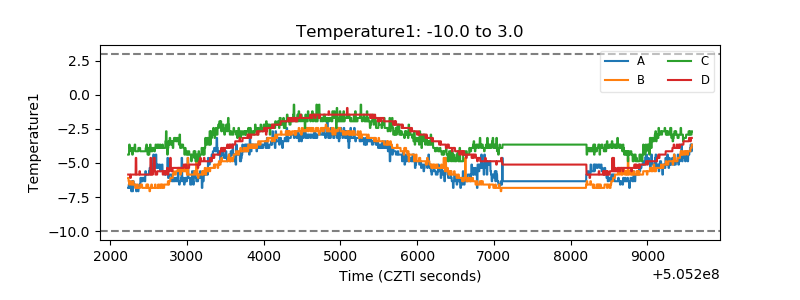

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

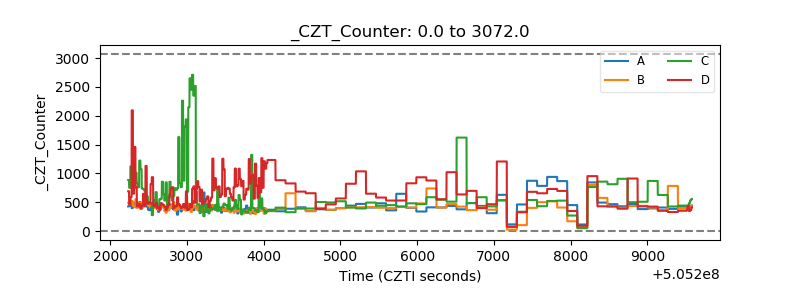

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

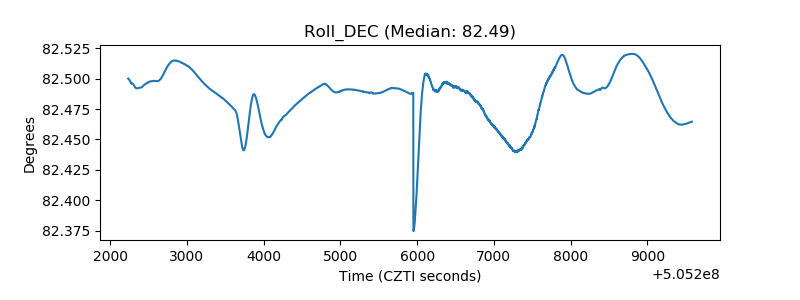

| _Roll_DEC |  |

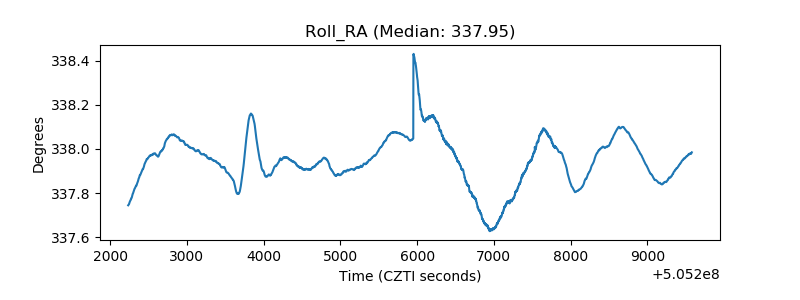

| _Roll_RA |  |
| Veto Counter |  |
