| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55576cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55576cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,317,120 | 82,748,160 |
| Size | 562.0 MB | 78.9 MB |
| Events in quadrant A | 2,961,122 | 592,940 |
| Events in quadrant B | 4,447,569 | 589,570 |
| Events in quadrant C | 7,084,719 | 481,329 |
| Events in quadrant D | 6,844,578 | 412,948 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13207 | 1 |
| B | 0 | 17752 | 1 |
| C | 0 | 25382 | 1 |
| D | 0 | 24588 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6141 | 36 | 0.586224% |
| B | 6141 | 602 | 9.802964% |
| C | 6142 | 952 | 15.499837% |
| D | 6142 | 1458 | 23.738196% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

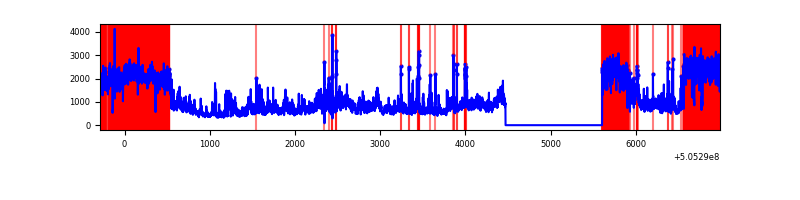

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7276 | 6142 | 14 | 14 | 0.19% | 0.23% |  |
| B | 7276 | 6142 | 562 | 562 | 7.72% | 9.15% |  |
| C | 7277 | 6143 | 1127 | 1127 | 15.49% | 18.35% |  |
| D | 7277 | 6143 | 1238 | 1238 | 17.01% | 20.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 249132 | 1563.1 | 640 | 624 | 159.0 |
| A | 15 | 32 | 82789 | 516.81 | 640 | 624 | 159.0 |
| A | 0 | 8 | 75835 | 473.07 | 640 | 624 | 159.0 |
| B | 5 | 172 | 1922253 | 14827.8 | 609 | 589 | 129.6 |
| B | 4 | 169 | 34814 | 264.08 | 609 | 589 | 129.6 |
| B | 10 | 247 | 17273 | 128.74 | 609 | 589 | 129.6 |
| C | 9 | 38 | 4498806 | 28243.72 | 581 | 575 | 159.3 |
| C | 13 | 3 | 85701 | 534.49 | 581 | 575 | 159.3 |
| C | 6 | 223 | 71413 | 444.78 | 581 | 575 | 159.3 |
| D | 15 | 125 | 2334293 | 15276.07 | 538 | 513 | 152.8 |
| D | 11 | 129 | 2115924 | 13846.7 | 538 | 513 | 152.8 |
| D | 2 | 249 | 93335 | 607.58 | 538 | 513 | 152.8 |

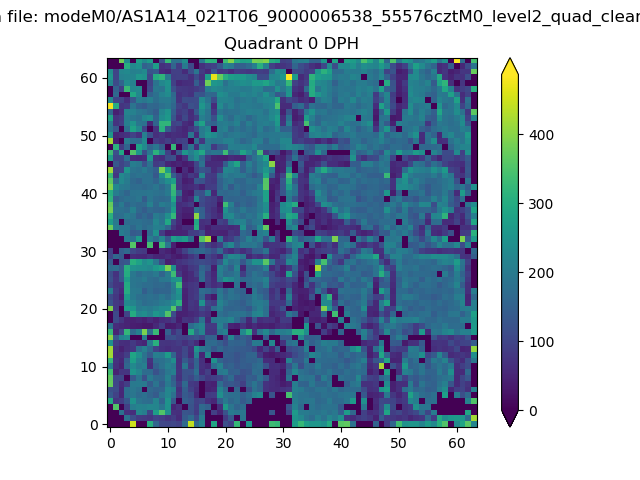

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

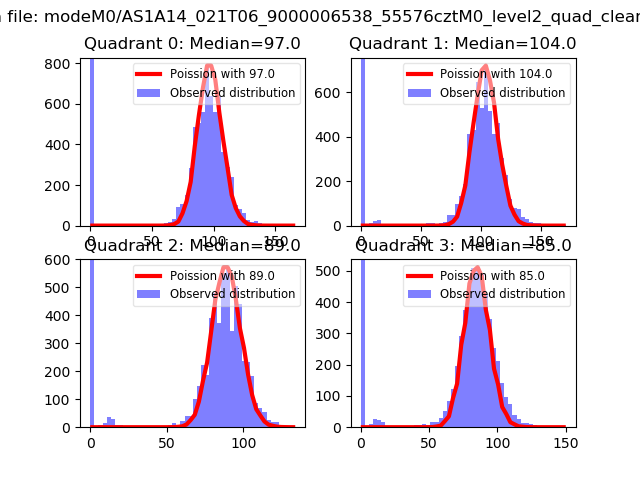

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

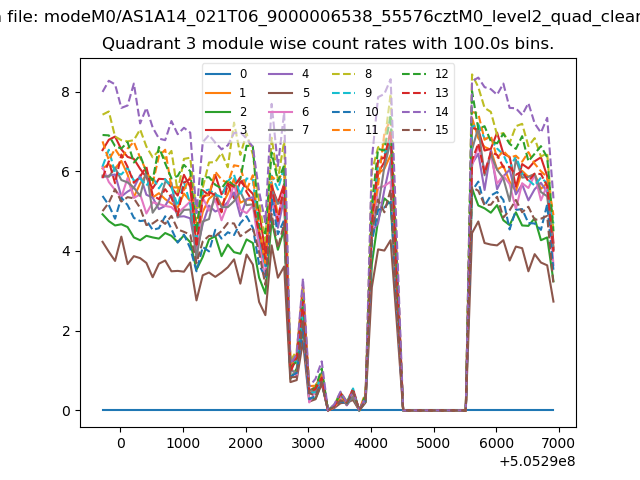

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

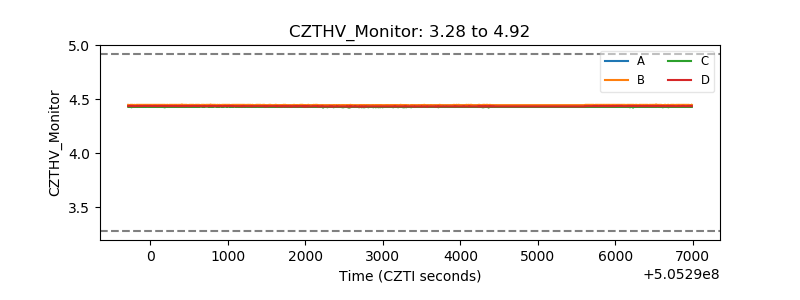

| CZT HV Monitor |  |
| D_VDD |  |

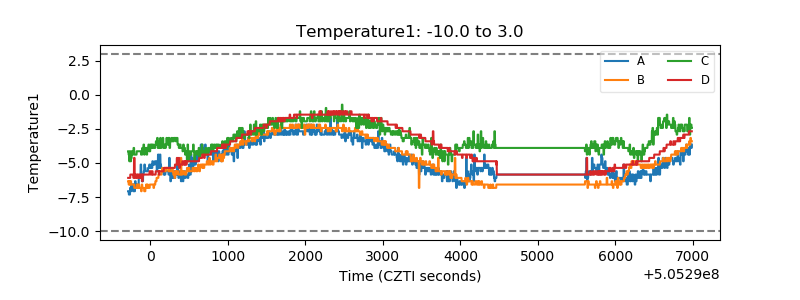

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

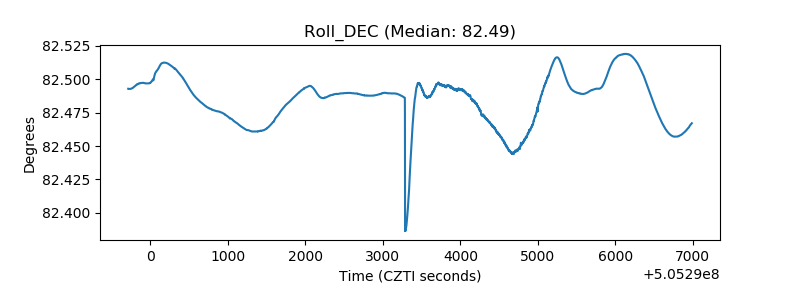

| _Roll_DEC |  |
| _Roll_RA |  |

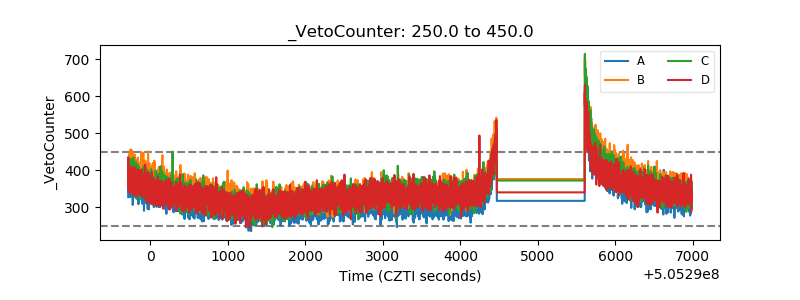

| Veto Counter |  |
