| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55579cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55579cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,958,080 | 97,344,000 |
| Size | 410.0 MB | 92.8 MB |
| Events in quadrant A | 4,756,002 | 623,359 |
| Events in quadrant B | 3,073,106 | 684,361 |
| Events in quadrant C | 3,527,932 | 604,051 |
| Events in quadrant D | 4,036,508 | 567,937 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18944 | 1 |
| B | 0 | 14076 | 1 |
| C | 0 | 15621 | 1 |
| D | 0 | 16887 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6711 | 347 | 5.170615% |
| B | 6711 | 84 | 1.251676% |
| C | 6712 | 117 | 1.743147% |
| D | 6712 | 217 | 3.233015% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

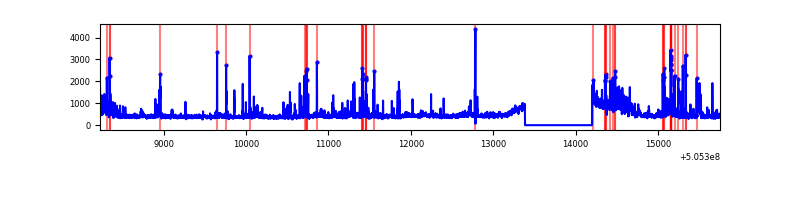

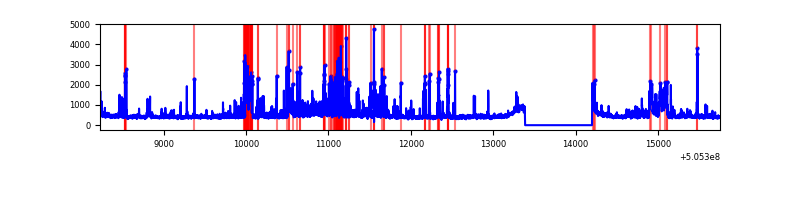

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6712 | 210 | 210 | 2.79% | 3.13% |  |
| B | 7526 | 6712 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7527 | 6713 | 49 | 49 | 0.65% | 0.73% |  |
| D | 7527 | 6713 | 138 | 138 | 1.83% | 2.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 1314372 | 7578.7 | 693 | 677 | 173.3 |
| A | 0 | 8 | 415991 | 2395.95 | 693 | 677 | 173.3 |
| A | 12 | 115 | 252796 | 1454.47 | 693 | 677 | 173.3 |
| B | 7 | 0 | 120055 | 813.85 | 685 | 661 | 146.7 |
| B | 10 | 247 | 73697 | 497.85 | 685 | 661 | 146.7 |
| B | 4 | 169 | 72957 | 492.81 | 685 | 661 | 146.7 |
| C | 9 | 38 | 383607 | 2068.85 | 672 | 665 | 185.1 |
| C | 12 | 252 | 192183 | 1034.68 | 672 | 665 | 185.1 |
| C | 6 | 223 | 51027 | 272.08 | 672 | 665 | 185.1 |
| D | 15 | 125 | 370035 | 1934.62 | 676 | 645 | 190.9 |
| D | 11 | 129 | 355214 | 1856.99 | 676 | 645 | 190.9 |
| D | 3 | 12 | 145873 | 760.61 | 676 | 645 | 190.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

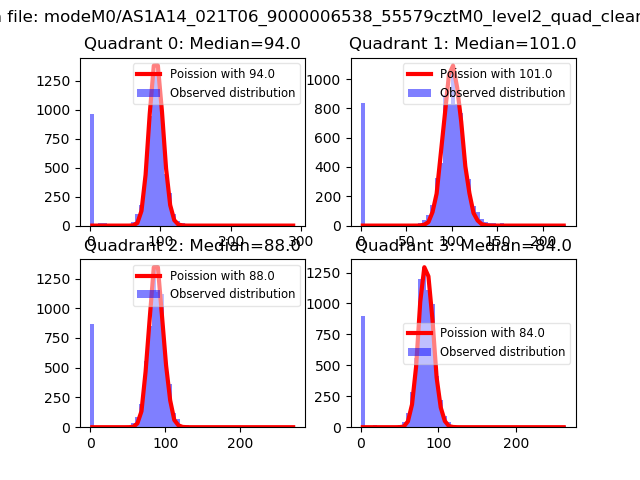

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

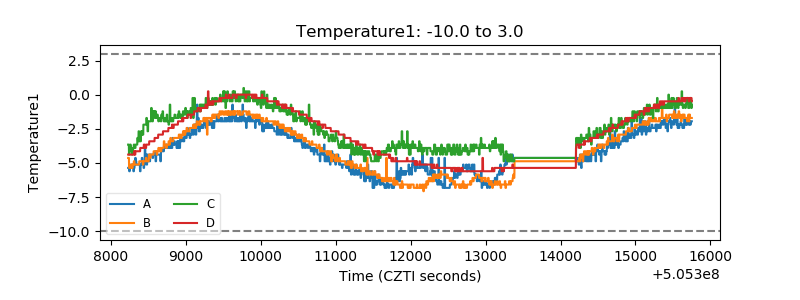

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

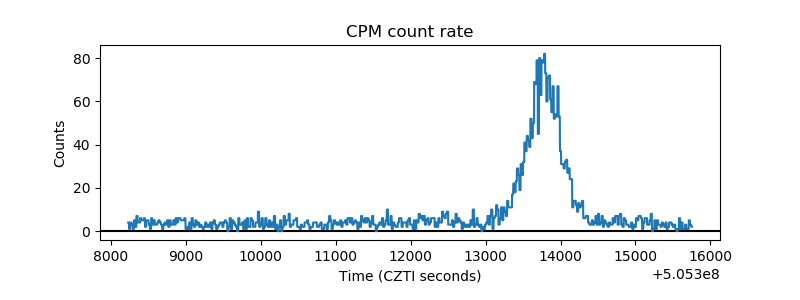

| _CPM_Rate |  |

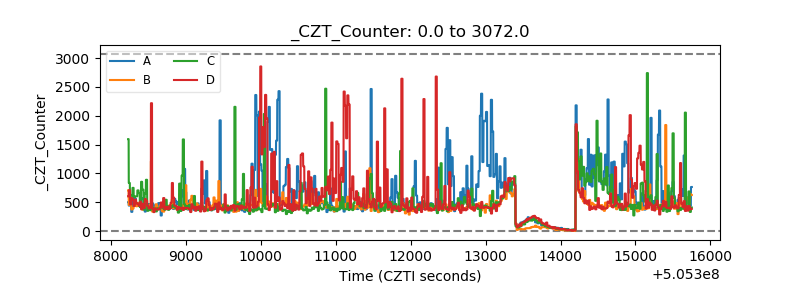

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

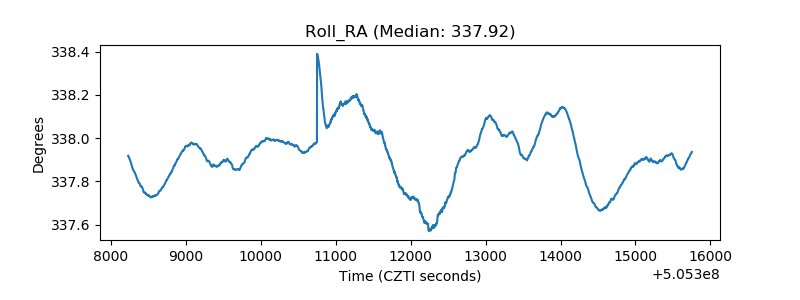

| _Roll_RA |  |
| Veto Counter |  |
