| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55593cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55593cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,019,840 | 96,929,280 |
| Size | 365.3 MB | 92.4 MB |
| Events in quadrant A | 3,431,513 | 632,989 |
| Events in quadrant B | 2,863,887 | 686,177 |
| Events in quadrant C | 3,635,110 | 592,250 |
| Events in quadrant D | 3,727,234 | 558,146 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15174 | 2 |
| B | 0 | 13773 | 2 |
| C | 0 | 16079 | 7 |
| D | 0 | 15905 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6682 | 120 | 1.795870% |
| B | 6682 | 84 | 1.257109% |
| C | 6681 | 171 | 2.559497% |
| D | 6681 | 168 | 2.514594% |

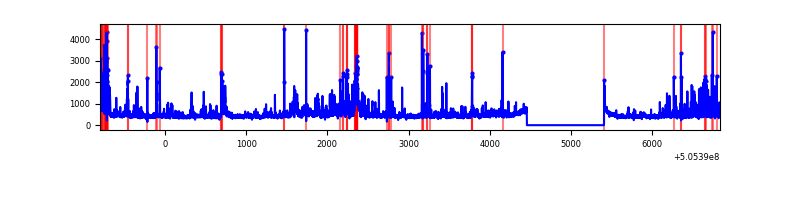

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6683 | 24 | 24 | 0.31% | 0.36% |  |
| B | 7632 | 6683 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7631 | 6682 | 128 | 128 | 1.68% | 1.92% |  |
| D | 7631 | 6682 | 85 | 85 | 1.11% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 481472 | 2775.98 | 698 | 681 | 173.2 |
| A | 0 | 8 | 85516 | 489.82 | 698 | 681 | 173.2 |
| A | 3 | 14 | 42929 | 243.93 | 698 | 681 | 173.2 |
| B | 10 | 247 | 41550 | 280.46 | 686 | 661 | 145.8 |
| B | 7 | 252 | 25160 | 168.04 | 686 | 661 | 145.8 |
| B | 5 | 172 | 20731 | 137.66 | 686 | 661 | 145.8 |
| C | 9 | 38 | 646651 | 3524.55 | 666 | 657 | 183.3 |
| C | 6 | 223 | 156811 | 851.98 | 666 | 657 | 183.3 |
| C | 13 | 3 | 78879 | 426.78 | 666 | 657 | 183.3 |
| D | 11 | 129 | 221232 | 1160.95 | 670 | 640 | 190.0 |
| D | 15 | 125 | 179025 | 938.82 | 670 | 640 | 190.0 |
| D | 8 | 160 | 163419 | 856.69 | 670 | 640 | 190.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

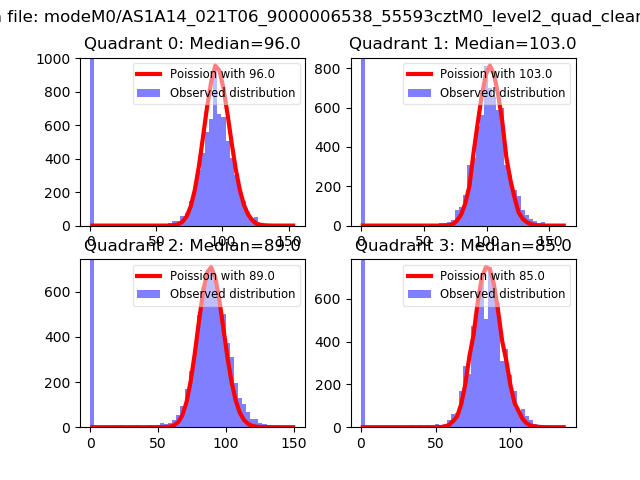

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

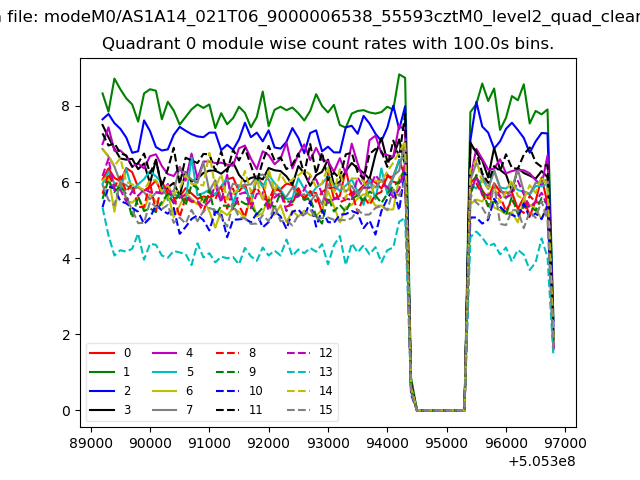

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

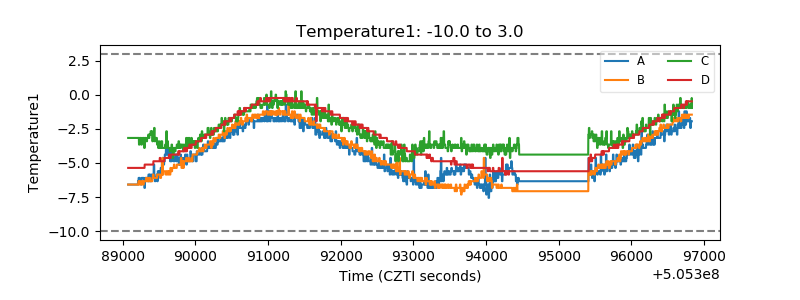

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

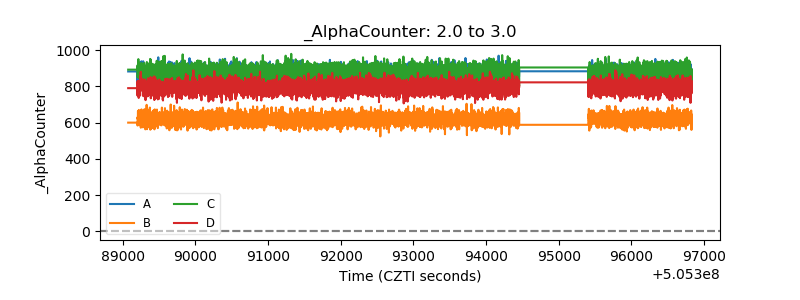

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

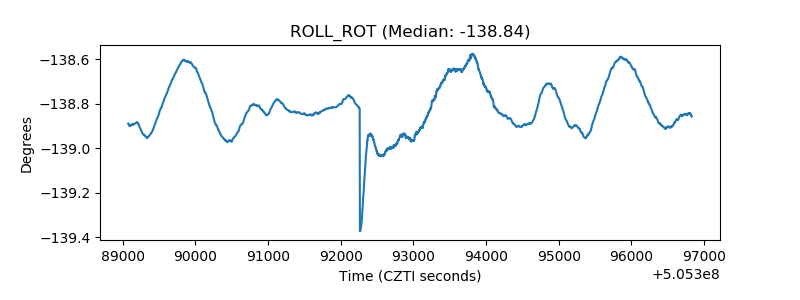

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

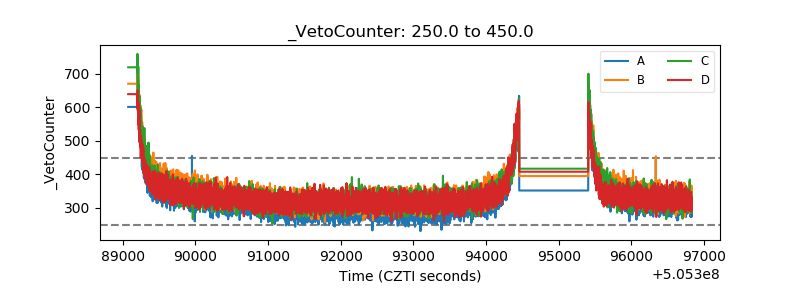

| Veto Counter |  |
