| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55603cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55603cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,586,560 | 101,928,960 |
| Size | 409.7 MB | 97.2 MB |
| Events in quadrant A | 4,376,941 | 658,846 |
| Events in quadrant B | 3,384,204 | 708,657 |
| Events in quadrant C | 3,437,729 | 627,520 |
| Events in quadrant D | 4,145,330 | 592,388 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18010 | 3 |
| B | 0 | 15599 | 2 |
| C | 0 | 15837 | 2 |
| D | 0 | 17903 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7169 | 110 | 1.534384% |
| B | 7169 | 130 | 1.813363% |
| C | 7169 | 127 | 1.771516% |
| D | 7169 | 117 | 1.632027% |

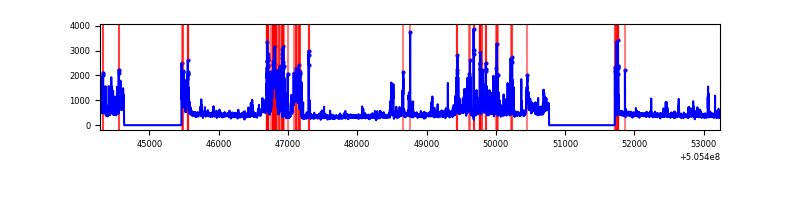

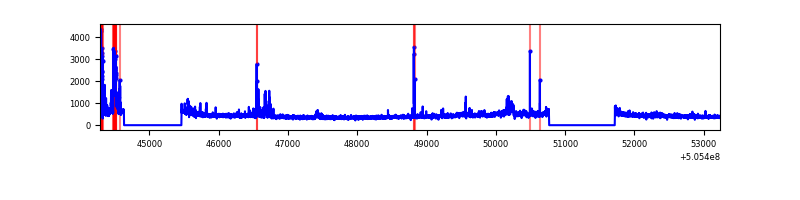

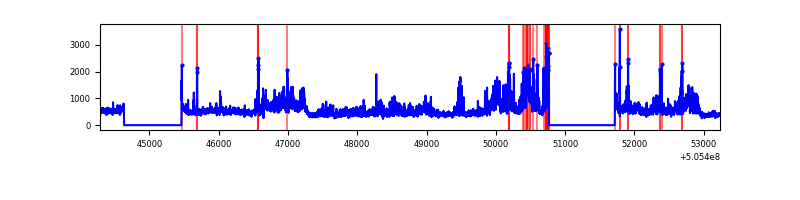

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

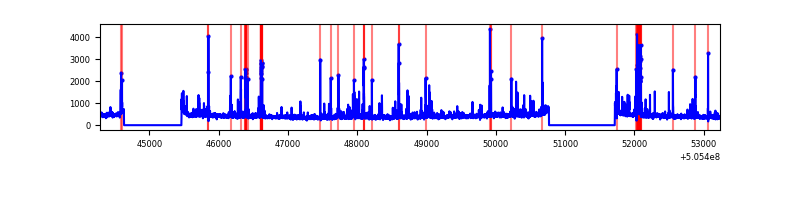

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8949 | 7170 | 54 | 54 | 0.60% | 0.75% |  |
| B | 8949 | 7171 | 52 | 52 | 0.58% | 0.73% |  |
| C | 8949 | 7171 | 79 | 79 | 0.88% | 1.10% |  |
| D | 8949 | 7171 | 121 | 121 | 1.35% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 536421 | 2928.13 | 735 | 716 | 183.0 |
| A | 3 | 14 | 474679 | 2590.66 | 735 | 716 | 183.0 |
| A | 4 | 159 | 360958 | 1969.06 | 735 | 716 | 183.0 |
| B | 5 | 236 | 254039 | 1618.99 | 731 | 704 | 156.5 |
| B | 7 | 0 | 84525 | 535.68 | 731 | 704 | 156.5 |
| B | 5 | 185 | 63656 | 402.31 | 731 | 704 | 156.5 |
| C | 15 | 178 | 207665 | 1051.05 | 718 | 710 | 196.9 |
| C | 13 | 3 | 143926 | 727.34 | 718 | 710 | 196.9 |
| C | 15 | 200 | 72995 | 367.11 | 718 | 710 | 196.9 |
| D | 8 | 160 | 508561 | 2510.68 | 712 | 679 | 202.3 |
| D | 2 | 153 | 293276 | 1446.43 | 712 | 679 | 202.3 |
| D | 11 | 129 | 224110 | 1104.51 | 712 | 679 | 202.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

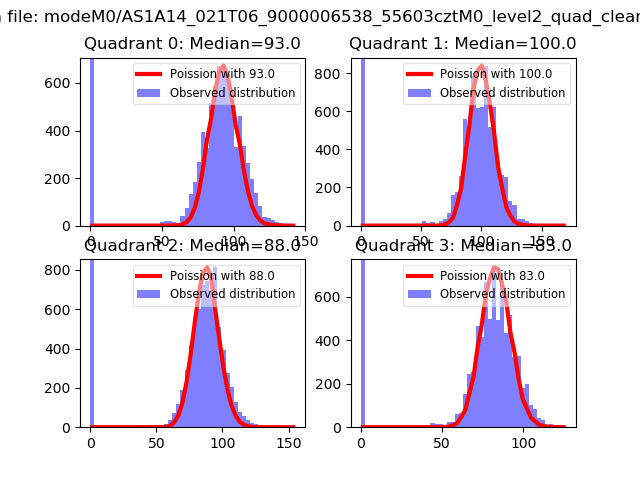

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

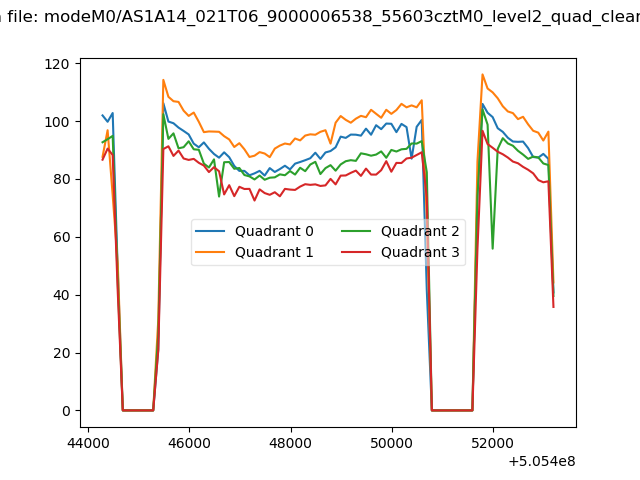

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

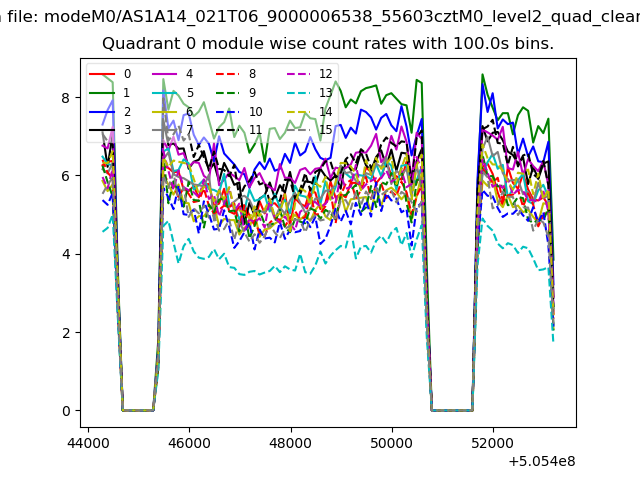

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

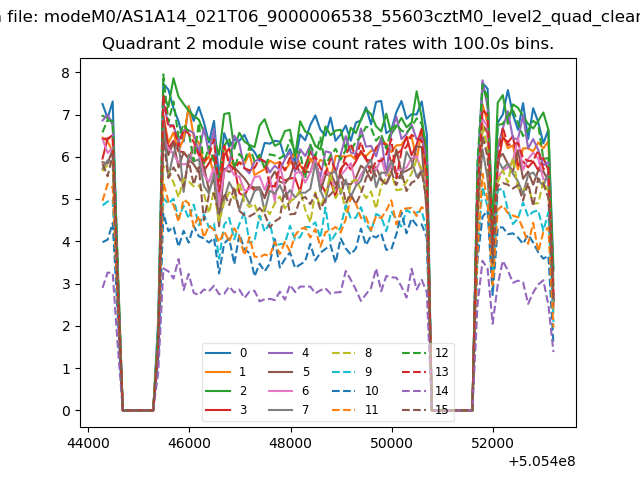

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

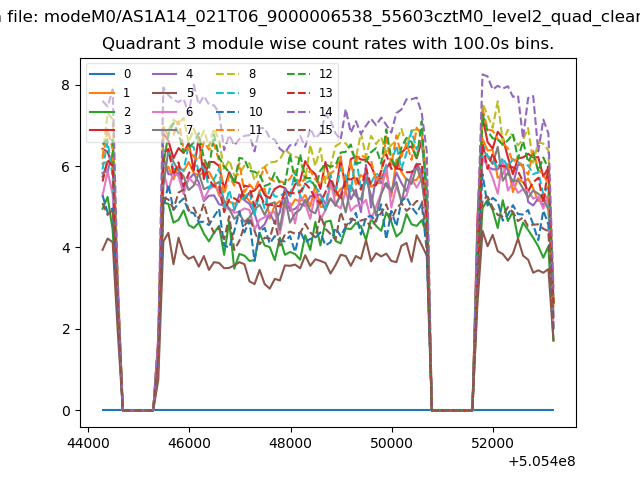

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

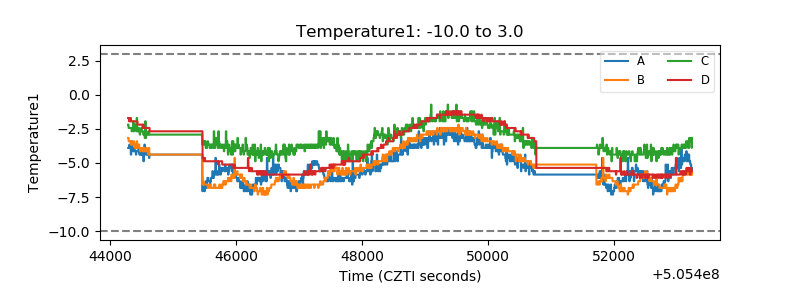

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

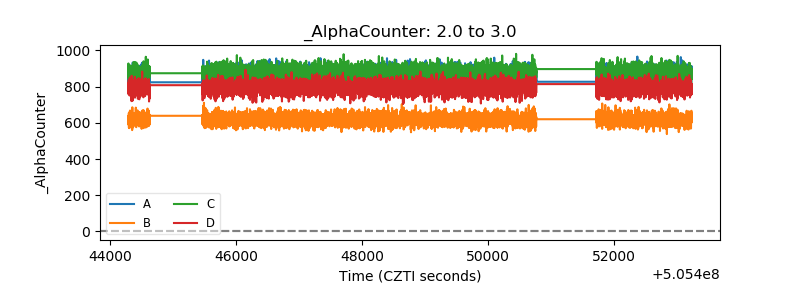

| Alpha Counter |  |

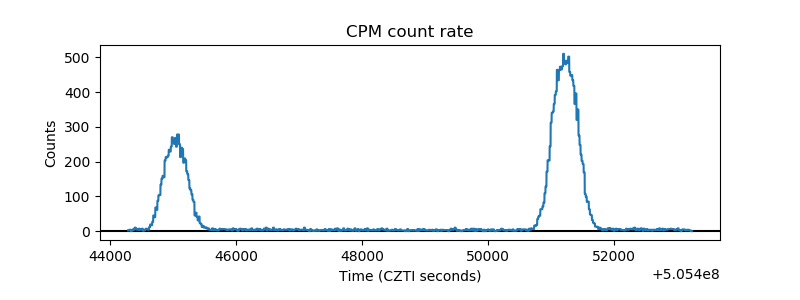

| _CPM_Rate |  |

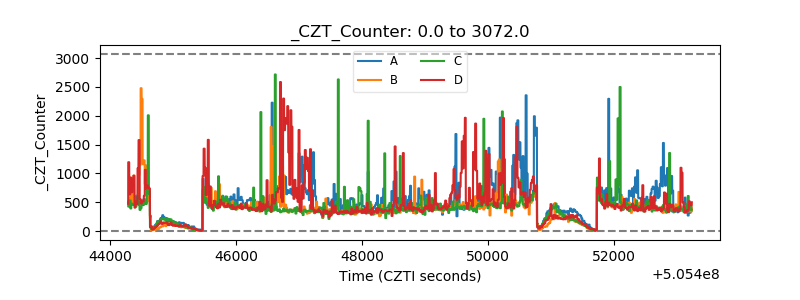

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

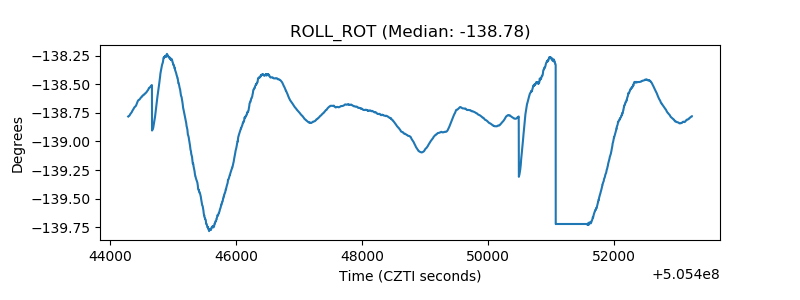

| _ROLL_ROT |  |

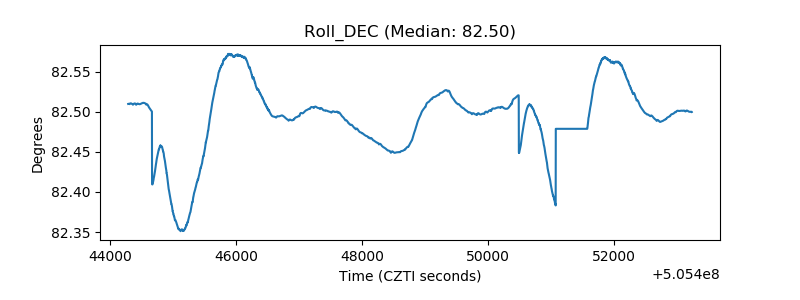

| _Roll_DEC |  |

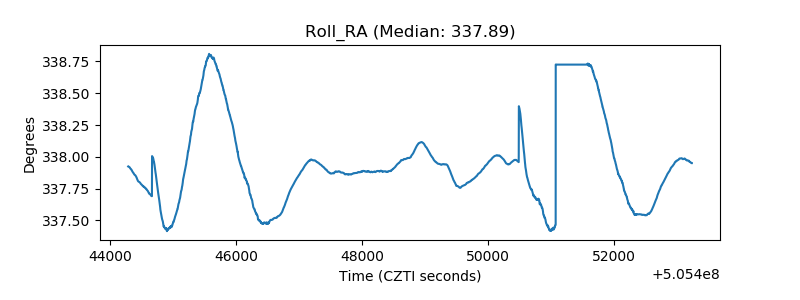

| _Roll_RA |  |

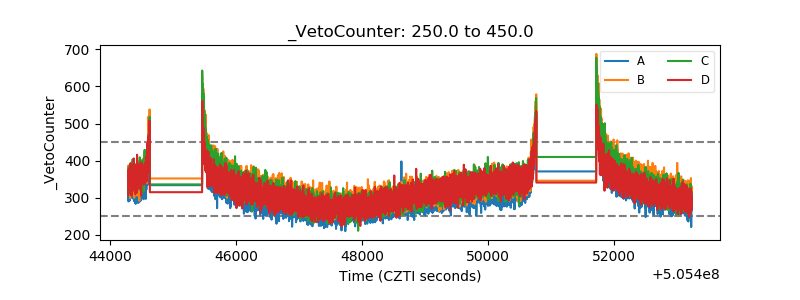

| Veto Counter |  |
