| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55609cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55609cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,426,240 | 94,665,600 |
| Size | 438.1 MB | 90.3 MB |
| Events in quadrant A | 5,389,926 | 581,446 |
| Events in quadrant B | 3,041,391 | 674,311 |
| Events in quadrant C | 3,242,781 | 585,695 |
| Events in quadrant D | 4,801,623 | 549,442 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20609 | 1 |
| B | 0 | 14403 | 1 |
| C | 0 | 15101 | 1 |
| D | 0 | 19100 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6822 | 635 | 9.308121% |
| B | 6822 | 126 | 1.846966% |
| C | 6822 | 188 | 2.755790% |
| D | 6823 | 305 | 4.470174% |

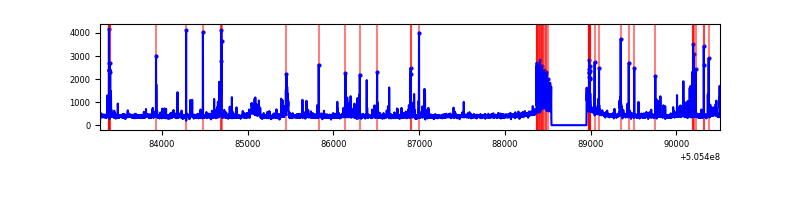

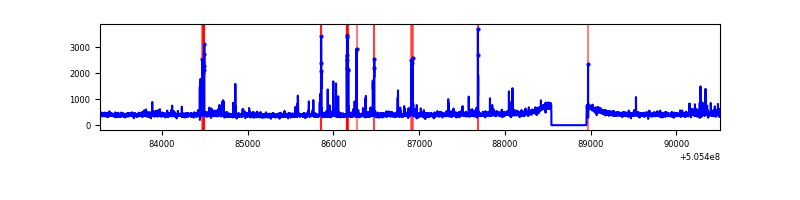

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7232 | 6823 | 392 | 392 | 5.42% | 5.75% |  |
| B | 7232 | 6823 | 26 | 26 | 0.36% | 0.38% |  |
| C | 7232 | 6823 | 59 | 59 | 0.82% | 0.86% |  |
| D | 7233 | 6824 | 218 | 218 | 3.01% | 3.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 2033355 | 11925.65 | 687 | 668 | 170.4 |
| A | 3 | 14 | 217450 | 1271.85 | 687 | 668 | 170.4 |
| A | 8 | 249 | 145767 | 851.29 | 687 | 668 | 170.4 |
| B | 7 | 252 | 93521 | 627.09 | 696 | 670 | 148.1 |
| B | 5 | 185 | 81913 | 548.69 | 696 | 670 | 148.1 |
| B | 0 | 171 | 41952 | 278.81 | 696 | 670 | 148.1 |
| C | 13 | 3 | 197503 | 1053.71 | 680 | 673 | 186.8 |
| C | 12 | 250 | 124508 | 662.94 | 680 | 673 | 186.8 |
| C | 10 | 19 | 60304 | 319.23 | 680 | 673 | 186.8 |
| D | 2 | 62 | 620594 | 3207.31 | 687 | 655 | 193.3 |
| D | 11 | 129 | 479959 | 2479.72 | 687 | 655 | 193.3 |
| D | 2 | 31 | 276524 | 1427.23 | 687 | 655 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

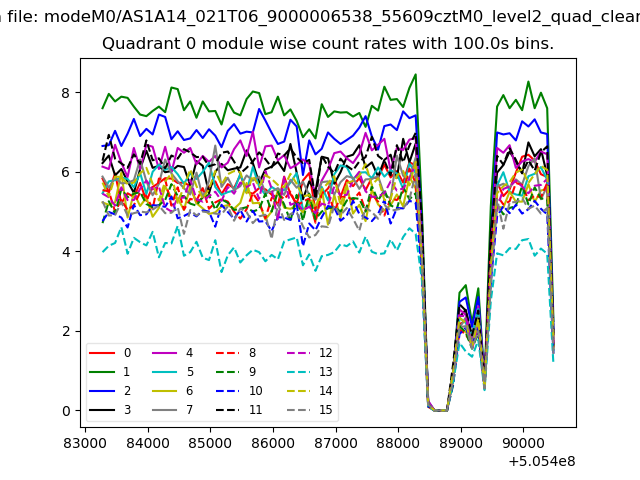

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

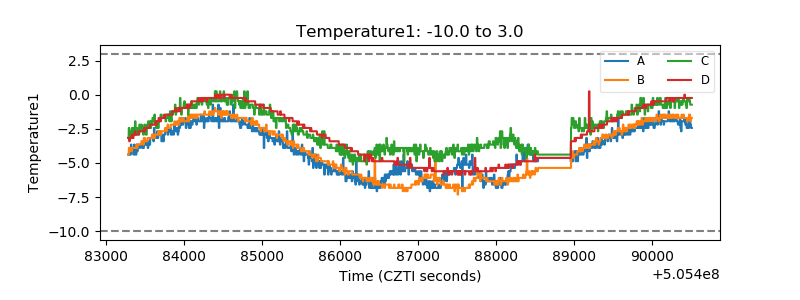

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

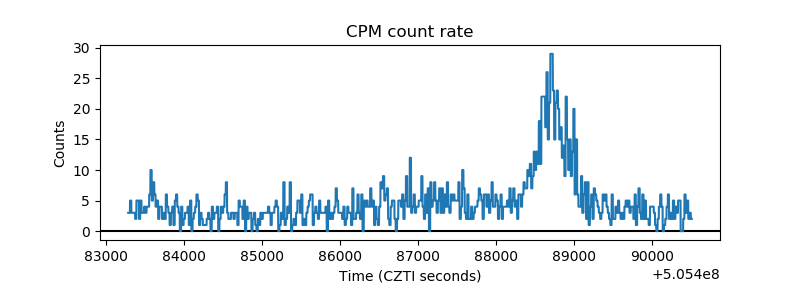

| _CPM_Rate |  |

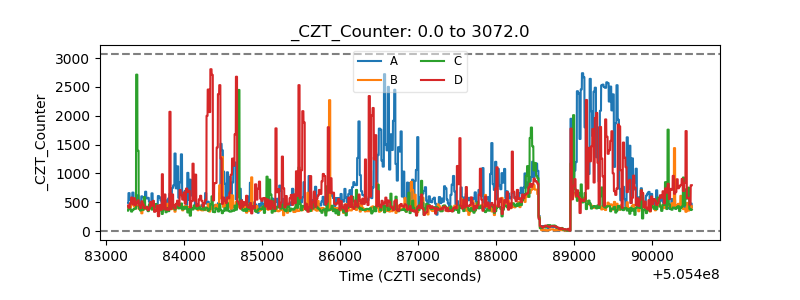

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

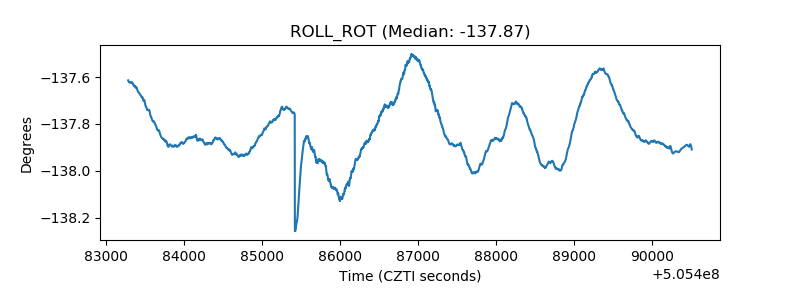

| _ROLL_ROT |  |
| _Roll_DEC |  |

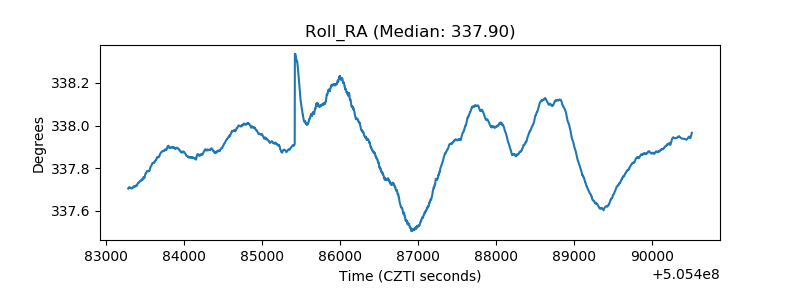

| _Roll_RA |  |
| Veto Counter |  |
