| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55615cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55615cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,825,427,520 | 338,451,840 |
| Size | 1.7 GB | 322.8 MB |
| Events in quadrant A | 24,888,316 | 1,998,744 |
| Events in quadrant B | 10,783,171 | 2,429,110 |
| Events in quadrant C | 13,992,543 | 2,126,028 |
| Events in quadrant D | 16,003,777 | 1,997,776 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 91424 | 2 |
| B | 0 | 51439 | 2 |
| C | 0 | 60347 | 2 |
| D | 0 | 65426 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 502 | 0 |
| B | 0 | 502 | 0 |
| C | 0 | 502 | 0 |
| D | 0 | 502 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24630 | 3556 | 14.437678% |
| B | 24630 | 186 | 0.755177% |
| C | 24631 | 571 | 2.318217% |
| D | 24631 | 874 | 3.548374% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

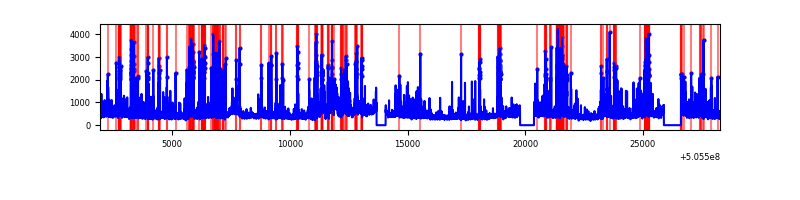

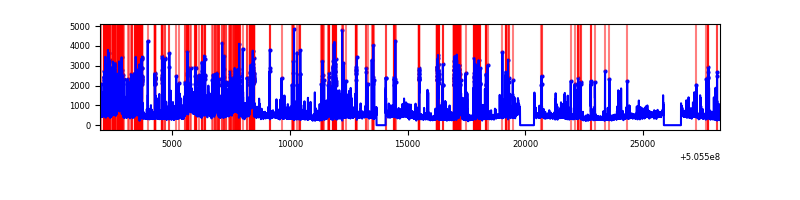

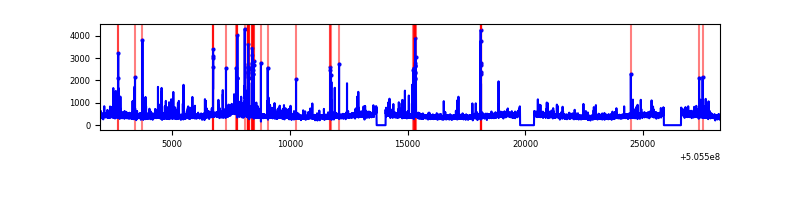

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26339 | 24632 | 2992 | 2992 | 11.36% | 12.15% |  |
| B | 26340 | 24633 | 67 | 67 | 0.25% | 0.27% |  |
| C | 26341 | 24634 | 461 | 461 | 1.75% | 1.87% |  |
| D | 26341 | 24634 | 854 | 854 | 3.24% | 3.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 13090243 | 22251.0 | 2378 | 2319 | 588.2 |
| A | 8 | 249 | 1461402 | 2480.61 | 2378 | 2319 | 588.2 |
| A | 12 | 115 | 332152 | 560.75 | 2378 | 2319 | 588.2 |
| B | 5 | 185 | 363877 | 680.5 | 2504 | 2408 | 531.2 |
| B | 10 | 247 | 115238 | 212.41 | 2504 | 2408 | 531.2 |
| B | 0 | 199 | 113569 | 209.27 | 2504 | 2408 | 531.2 |
| C | 9 | 38 | 2376960 | 3548.22 | 2453 | 2422 | 669.2 |
| C | 10 | 19 | 480881 | 714.95 | 2453 | 2422 | 669.2 |
| C | 12 | 252 | 433476 | 644.11 | 2453 | 2422 | 669.2 |
| D | 11 | 129 | 1715457 | 2492.85 | 2438 | 2330 | 687.2 |
| D | 8 | 245 | 1211993 | 1760.24 | 2438 | 2330 | 687.2 |
| D | 2 | 31 | 532850 | 771.98 | 2438 | 2330 | 687.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

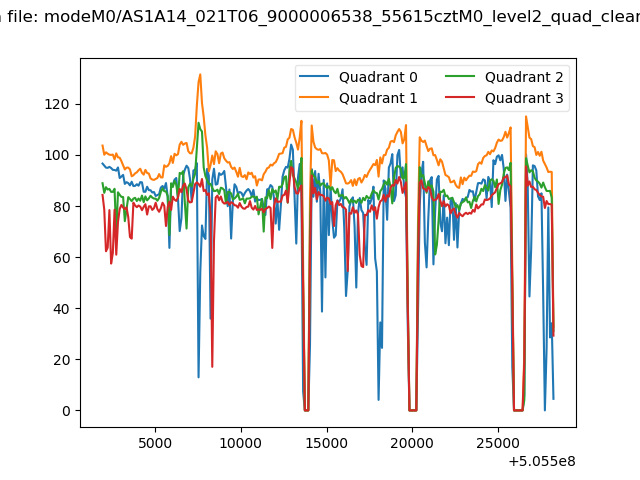

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

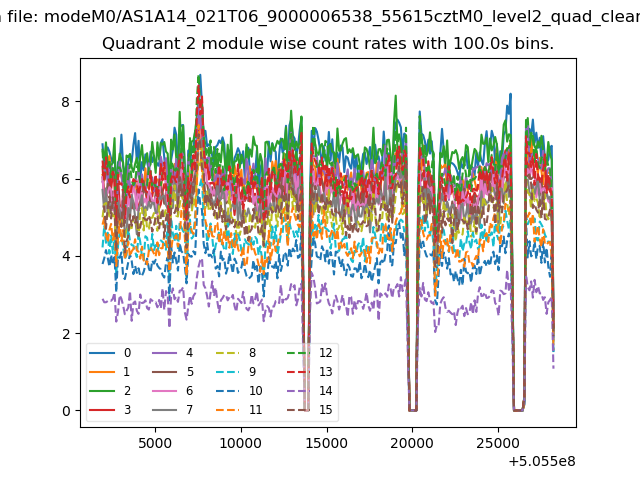

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

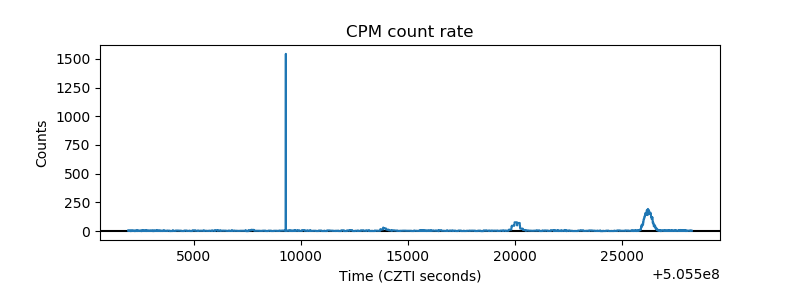

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

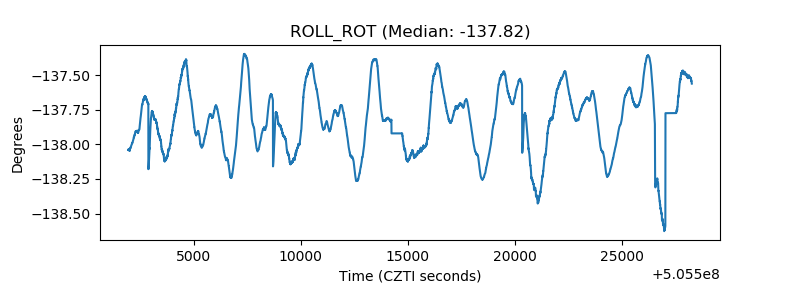

| _ROLL_ROT |  |

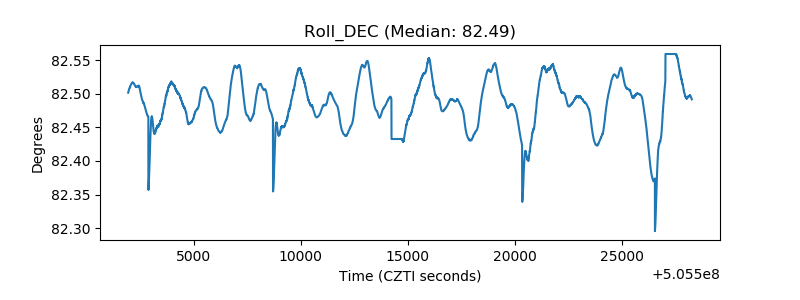

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
