| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006538_55677cztM0_level2.fits | modeM0/AS1A14_021T06_9000006538_55677cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,763,840 | 92,162,880 |
| Size | 420.3 MB | 87.9 MB |
| Events in quadrant A | 5,542,044 | 561,212 |
| Events in quadrant B | 2,710,948 | 668,157 |
| Events in quadrant C | 2,925,258 | 590,072 |
| Events in quadrant D | 4,623,527 | 510,760 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21300 | 1 |
| B | 0 | 13422 | 1 |
| C | 0 | 14111 | 2 |
| D | 0 | 18968 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6601 | 643 | 9.740948% |
| B | 6601 | 11 | 0.166641% |
| C | 6602 | 67 | 1.014844% |
| D | 6601 | 615 | 9.316770% |

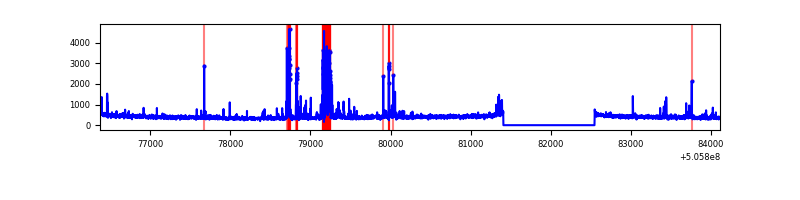

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7741 | 6602 | 608 | 608 | 7.85% | 9.21% |  |
| B | 7741 | 6602 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7742 | 6603 | 62 | 62 | 0.80% | 0.94% |  |
| D | 7741 | 6602 | 453 | 453 | 5.85% | 6.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 2403533 | 15213.0 | 635 | 620 | 158.0 |
| A | 15 | 32 | 571593 | 3614.87 | 635 | 620 | 158.0 |
| A | 3 | 95 | 32576 | 202.31 | 635 | 620 | 158.0 |
| B | 7 | 252 | 35828 | 251.5 | 656 | 632 | 139.9 |
| B | 10 | 247 | 32891 | 230.51 | 656 | 632 | 139.9 |
| B | 12 | 111 | 16770 | 115.32 | 656 | 632 | 139.9 |
| C | 13 | 3 | 142048 | 795.64 | 641 | 635 | 177.7 |
| C | 9 | 38 | 132005 | 739.13 | 641 | 635 | 177.7 |
| C | 10 | 19 | 88706 | 495.52 | 641 | 635 | 177.7 |
| D | 11 | 129 | 2032875 | 11604.05 | 612 | 584 | 175.1 |
| D | 7 | 129 | 69748 | 394.92 | 612 | 584 | 175.1 |
| D | 3 | 12 | 45998 | 259.31 | 612 | 584 | 175.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

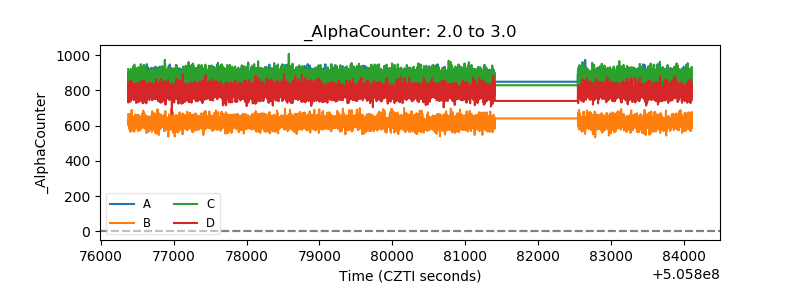

| Alpha Counter |  |

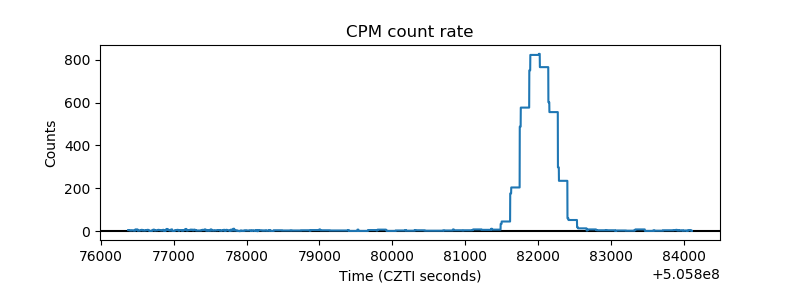

| _CPM_Rate |  |

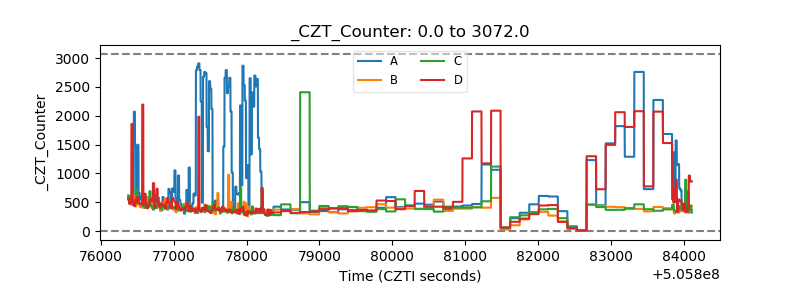

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

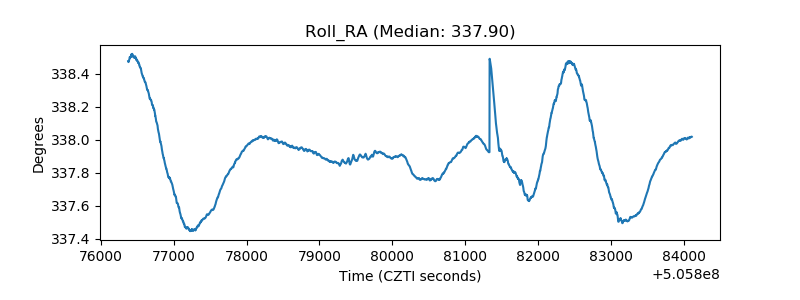

| _Roll_RA |  |
| Veto Counter |  |
