| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55694cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55694cztM0_level2_quad_clean.evt |
| Size (bytes) | 389,949,120 | 96,621,120 |
| Size | 371.9 MB | 92.1 MB |
| Events in quadrant A | 3,212,338 | 621,717 |
| Events in quadrant B | 3,136,647 | 676,447 |
| Events in quadrant C | 3,289,342 | 611,415 |
| Events in quadrant D | 4,283,360 | 556,729 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14462 | 2 |
| B | 0 | 13933 | 2 |
| C | 0 | 14609 | 2 |
| D | 0 | 17437 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6584 | 166 | 2.521264% |
| B | 6584 | 138 | 2.095990% |
| C | 6584 | 126 | 1.913730% |
| D | 6584 | 298 | 4.526124% |

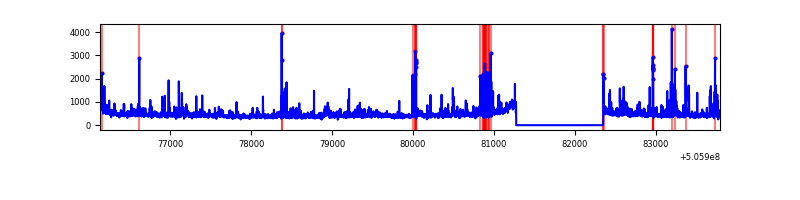

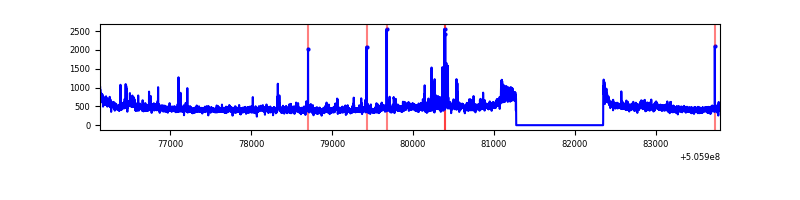

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 6584 | 77 | 77 | 1.01% | 1.17% |  |
| B | 7659 | 6584 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7659 | 6584 | 43 | 43 | 0.56% | 0.65% |  |
| D | 7659 | 6585 | 240 | 240 | 3.13% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 318059 | 1829.9 | 706 | 688 | 173.4 |
| A | 15 | 32 | 56124 | 319.63 | 706 | 688 | 173.4 |
| A | 12 | 115 | 22291 | 124.56 | 706 | 688 | 173.4 |
| B | 4 | 206 | 135153 | 894.36 | 700 | 674 | 150.4 |
| B | 5 | 236 | 76583 | 504.84 | 700 | 674 | 150.4 |
| B | 7 | 252 | 38077 | 248.75 | 700 | 674 | 150.4 |
| C | 9 | 38 | 228213 | 1211.05 | 687 | 681 | 187.9 |
| C | 13 | 3 | 101977 | 539.15 | 687 | 681 | 187.9 |
| C | 12 | 249 | 80809 | 426.48 | 687 | 681 | 187.9 |
| D | 11 | 129 | 1305742 | 6816.62 | 673 | 642 | 191.5 |
| D | 2 | 62 | 128488 | 667.75 | 673 | 642 | 191.5 |
| D | 3 | 12 | 95172 | 493.74 | 673 | 642 | 191.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

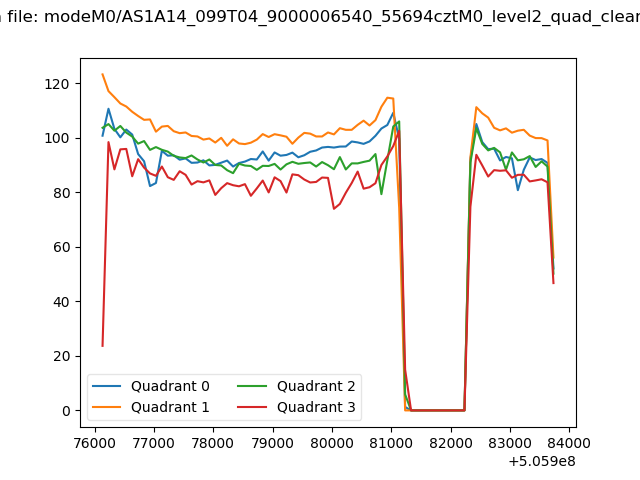

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

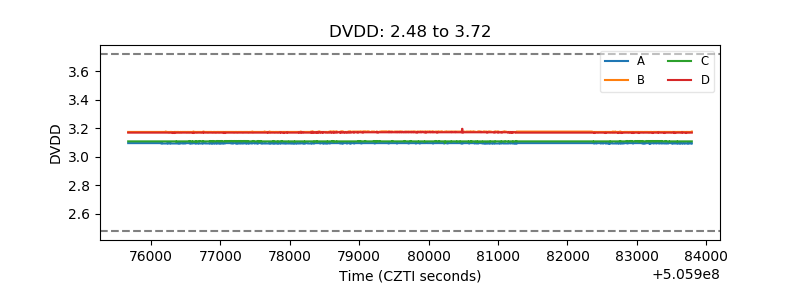

| D_VDD |  |

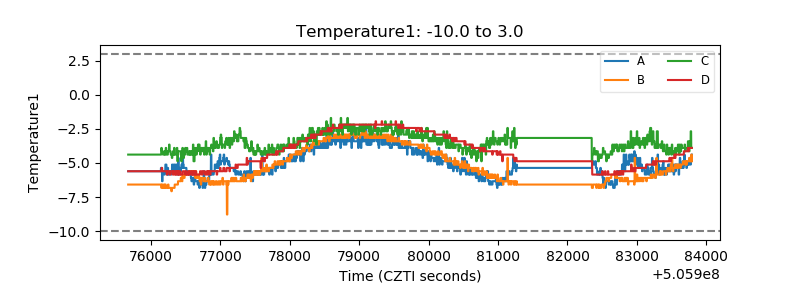

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

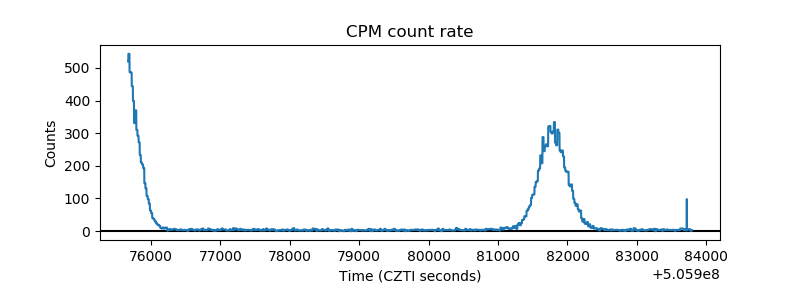

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

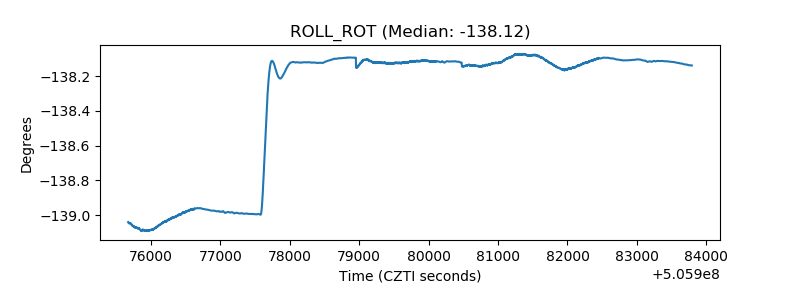

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

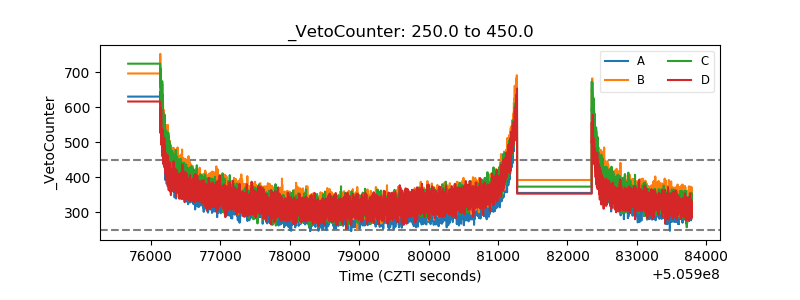

| Veto Counter |  |
