| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55703cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55703cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,962,560 | 95,261,760 |
| Size | 463.5 MB | 90.8 MB |
| Events in quadrant A | 7,303,213 | 544,496 |
| Events in quadrant B | 2,887,531 | 679,879 |
| Events in quadrant C | 3,468,276 | 610,721 |
| Events in quadrant D | 3,800,390 | 574,519 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26361 | 3 |
| B | 0 | 13916 | 2 |
| C | 0 | 15361 | 2 |
| D | 0 | 16166 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6812 | 1133 | 16.632413% |
| B | 6812 | 17 | 0.249560% |
| C | 6812 | 32 | 0.469759% |
| D | 6812 | 61 | 0.895479% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

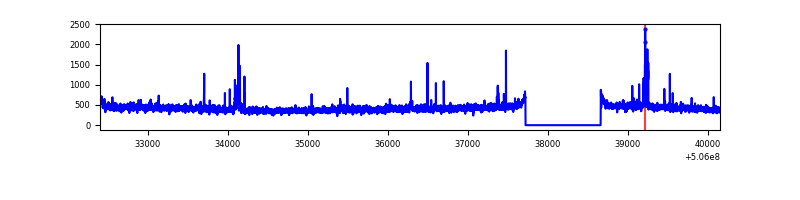

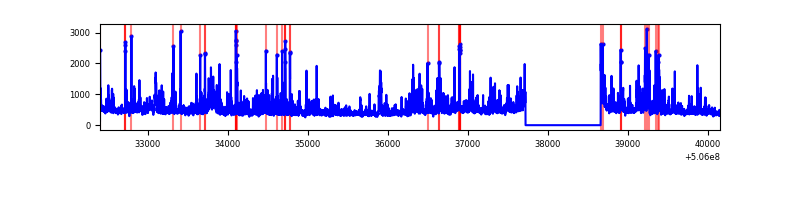

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7752 | 6813 | 974 | 974 | 12.56% | 14.30% |  |
| B | 7752 | 6813 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7752 | 6813 | 26 | 26 | 0.34% | 0.38% |  |
| D | 7752 | 6813 | 45 | 45 | 0.58% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 4083329 | 24922.32 | 657 | 641 | 163.8 |
| A | 7 | 64 | 282077 | 1718.0 | 657 | 641 | 163.8 |
| A | 5 | 241 | 169786 | 1032.53 | 657 | 641 | 163.8 |
| B | 0 | 171 | 47247 | 311.59 | 701 | 675 | 149.5 |
| B | 12 | 111 | 18487 | 119.17 | 701 | 675 | 149.5 |
| B | 11 | 111 | 17392 | 111.85 | 701 | 675 | 149.5 |
| C | 1 | 16 | 386251 | 2004.59 | 697 | 690 | 192.3 |
| C | 9 | 38 | 111533 | 576.29 | 697 | 690 | 192.3 |
| C | 6 | 223 | 98114 | 506.52 | 697 | 690 | 192.3 |
| D | 11 | 129 | 769787 | 3942.15 | 690 | 661 | 195.1 |
| D | 8 | 245 | 111161 | 566.37 | 690 | 661 | 195.1 |
| D | 2 | 62 | 60326 | 305.81 | 690 | 661 | 195.1 |

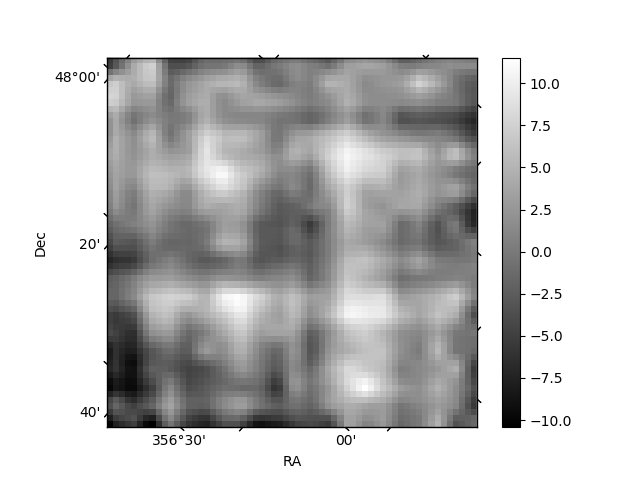

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

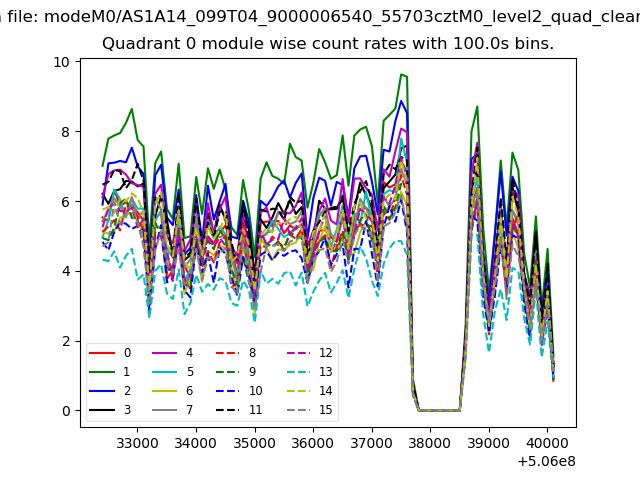

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

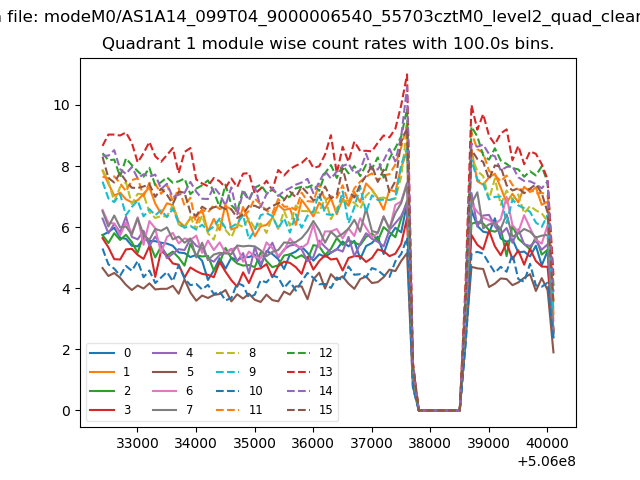

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

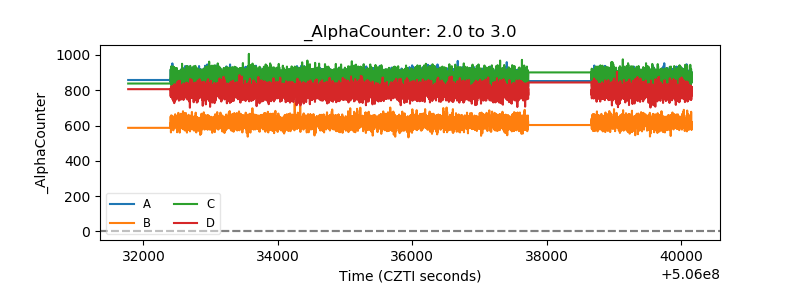

| Alpha Counter |  |
| _CPM_Rate |  |

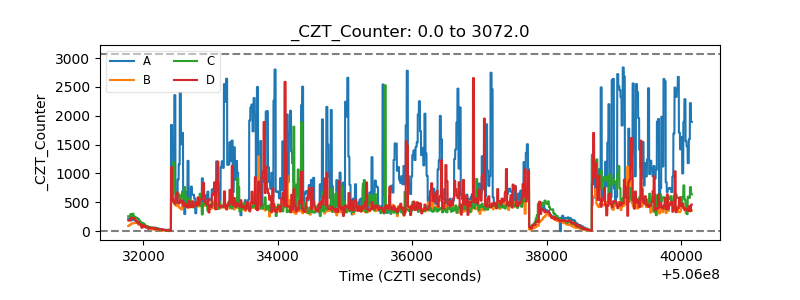

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

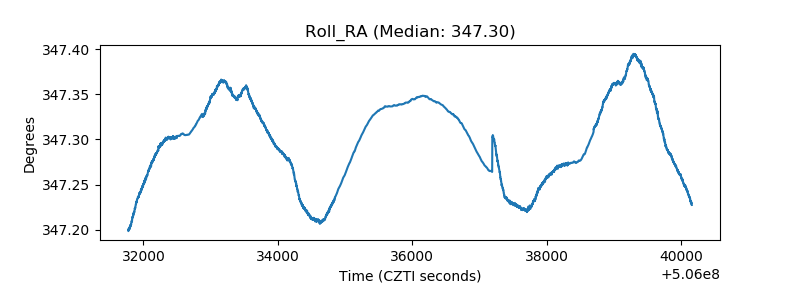

| _Roll_RA |  |
| Veto Counter |  |
