| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55707cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55707cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,648,320 | 95,509,440 |
| Size | 442.2 MB | 91.1 MB |
| Events in quadrant A | 6,535,921 | 550,703 |
| Events in quadrant B | 2,979,343 | 691,946 |
| Events in quadrant C | 2,975,208 | 625,703 |
| Events in quadrant D | 4,167,447 | 570,821 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24114 | 2 |
| B | 0 | 13714 | 2 |
| C | 0 | 13705 | 3 |
| D | 0 | 17144 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6495 | 983 | 15.134719% |
| B | 6495 | 60 | 0.923788% |
| C | 6494 | 23 | 0.354173% |
| D | 6494 | 202 | 3.110564% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

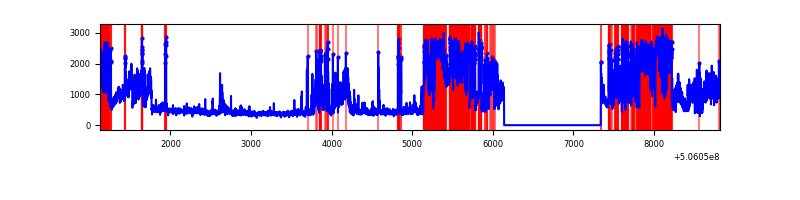

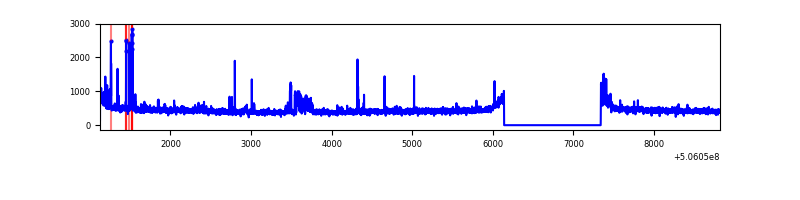

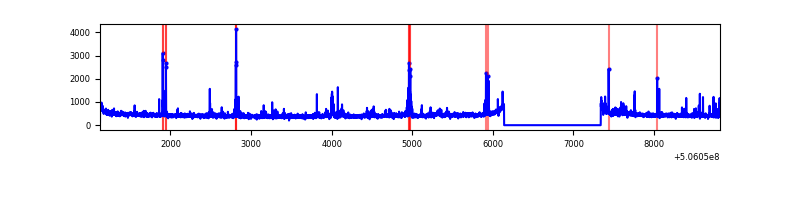

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 6496 | 922 | 922 | 11.98% | 14.19% |  |
| B | 7695 | 6495 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7694 | 6495 | 15 | 15 | 0.19% | 0.23% |  |
| D | 7694 | 6495 | 192 | 192 | 2.50% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 3171088 | 19634.56 | 662 | 645 | 161.5 |
| A | 8 | 62 | 317108 | 1959.86 | 662 | 645 | 161.5 |
| A | 5 | 241 | 289695 | 1790.09 | 662 | 645 | 161.5 |
| B | 0 | 199 | 128855 | 849.76 | 699 | 675 | 150.8 |
| B | 0 | 173 | 44257 | 288.92 | 699 | 675 | 150.8 |
| B | 12 | 111 | 18293 | 116.8 | 699 | 675 | 150.8 |
| C | 14 | 96 | 103020 | 539.89 | 688 | 683 | 189.6 |
| C | 12 | 252 | 77853 | 407.12 | 688 | 683 | 189.6 |
| C | 6 | 223 | 53944 | 280.99 | 688 | 683 | 189.6 |
| D | 11 | 129 | 1060326 | 5560.05 | 674 | 642 | 190.6 |
| D | 8 | 245 | 233201 | 1220.21 | 674 | 642 | 190.6 |
| D | 2 | 31 | 147418 | 770.12 | 674 | 642 | 190.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

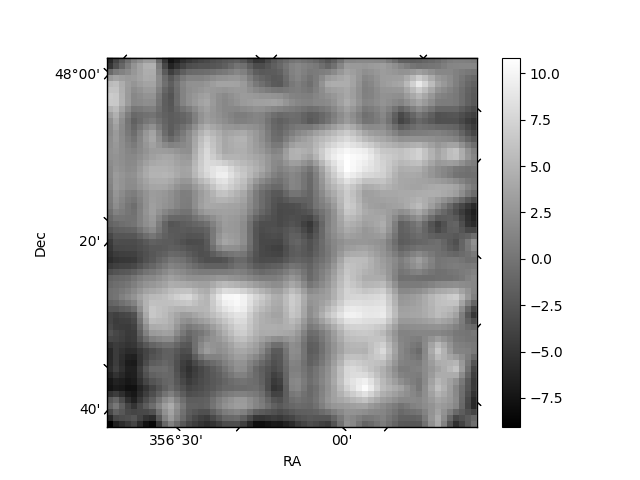

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

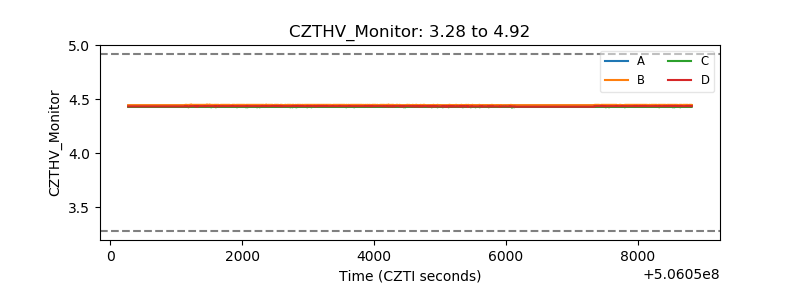

| CZT HV Monitor |  |

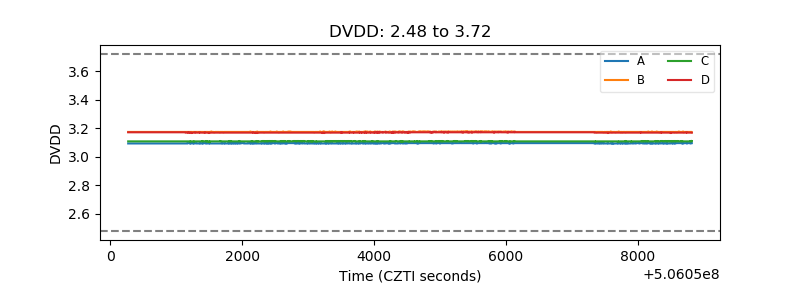

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

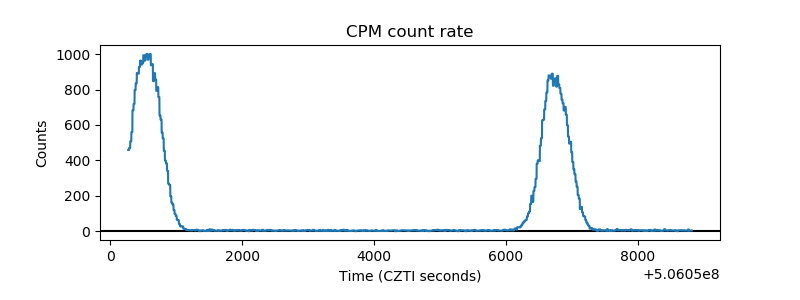

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

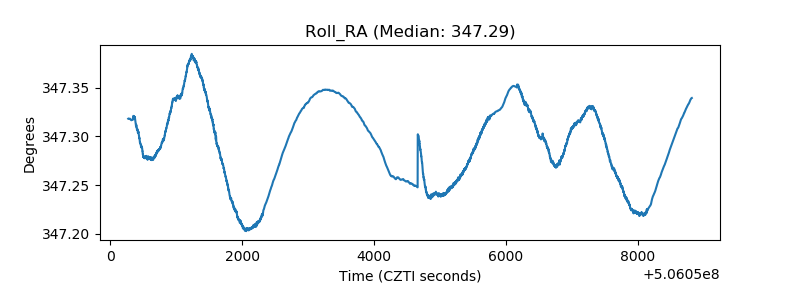

| _Roll_RA |  |
| Veto Counter |  |
