| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55710cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55710cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,901,120 | 96,923,520 |
| Size | 512.0 MB | 92.4 MB |
| Events in quadrant A | 8,764,960 | 508,186 |
| Events in quadrant B | 3,002,986 | 703,421 |
| Events in quadrant C | 3,444,136 | 644,882 |
| Events in quadrant D | 4,117,781 | 589,829 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30972 | 2 |
| B | 0 | 14458 | 2 |
| C | 0 | 15379 | 2 |
| D | 0 | 17379 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7004 | 1824 | 26.042262% |
| B | 7005 | 125 | 1.784440% |
| C | 7005 | 68 | 0.970735% |
| D | 7004 | 200 | 2.855511% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7764 | 7004 | 1580 | 1580 | 20.35% | 22.56% |  |
| B | 7765 | 7006 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7765 | 7007 | 31 | 31 | 0.40% | 0.44% |  |
| D | 7763 | 7003 | 134 | 134 | 1.73% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 4936380 | 29742.47 | 674 | 658 | 165.9 |
| A | 12 | 115 | 531435 | 3198.44 | 674 | 658 | 165.9 |
| A | 0 | 8 | 364878 | 2194.78 | 674 | 658 | 165.9 |
| B | 10 | 247 | 27561 | 166.76 | 735 | 705 | 161.0 |
| B | 5 | 248 | 21862 | 131.37 | 735 | 705 | 161.0 |
| B | 12 | 111 | 19385 | 115.99 | 735 | 705 | 161.0 |
| C | 6 | 223 | 234911 | 1179.44 | 722 | 715 | 198.6 |
| C | 9 | 38 | 171824 | 861.73 | 722 | 715 | 198.6 |
| C | 12 | 252 | 74077 | 369.46 | 722 | 715 | 198.6 |
| D | 10 | 181 | 488568 | 2437.58 | 713 | 681 | 200.2 |
| D | 11 | 129 | 324041 | 1615.57 | 713 | 681 | 200.2 |
| D | 6 | 239 | 280473 | 1397.89 | 713 | 681 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

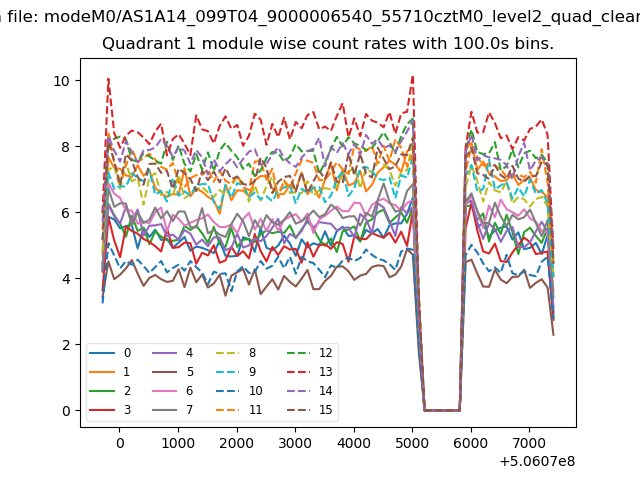

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

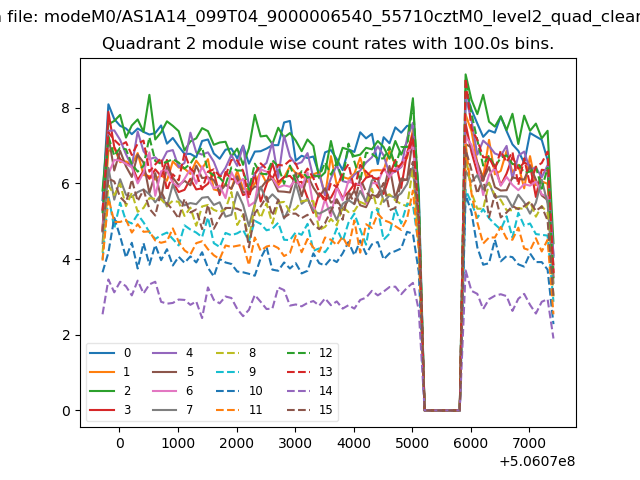

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

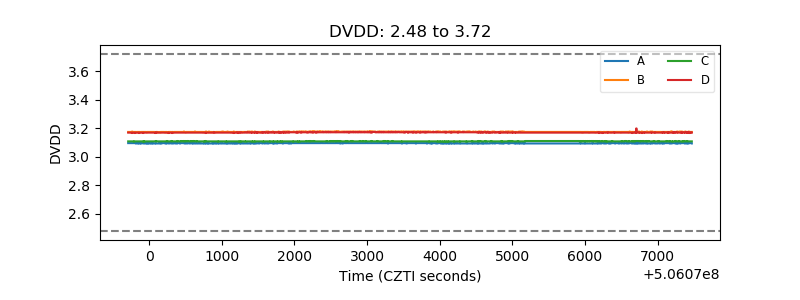

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

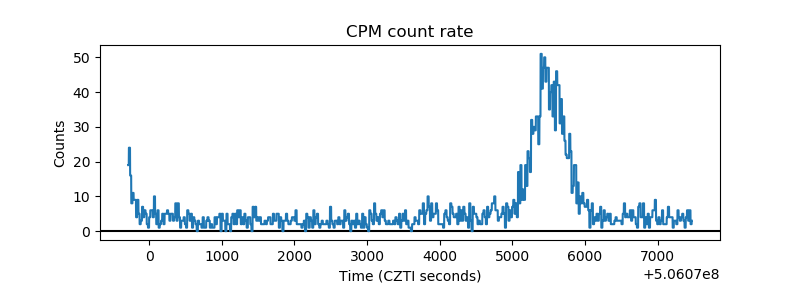

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

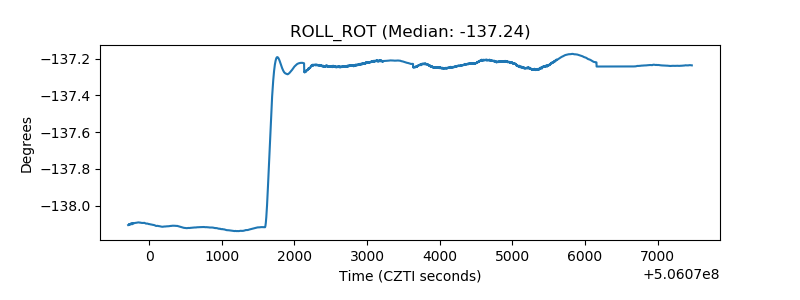

| _ROLL_ROT |  |

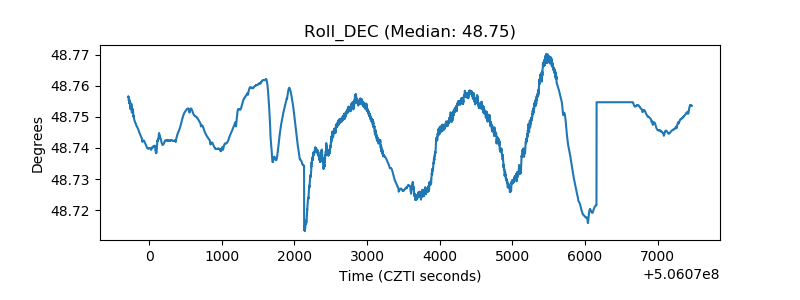

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
