| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55736cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55736cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,293,760 | 90,241,920 |
| Size | 618.3 MB | 86.1 MB |
| Events in quadrant A | 6,030,546 | 565,062 |
| Events in quadrant B | 6,246,984 | 611,792 |
| Events in quadrant C | 6,314,873 | 542,625 |
| Events in quadrant D | 4,900,943 | 559,369 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22252 | 2 |
| B | 0 | 23030 | 2 |
| C | 0 | 23217 | 2 |
| D | 0 | 19193 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6504 | 924 | 14.206642% |
| B | 6503 | 1063 | 16.346302% |
| C | 6503 | 1049 | 16.131016% |
| D | 6503 | 425 | 6.535445% |

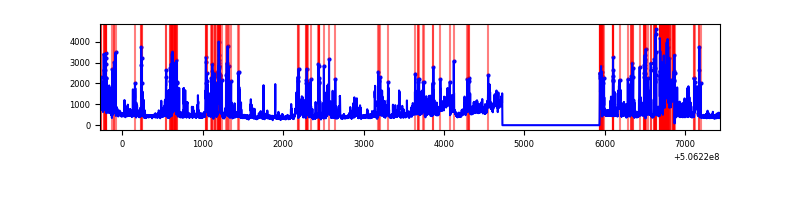

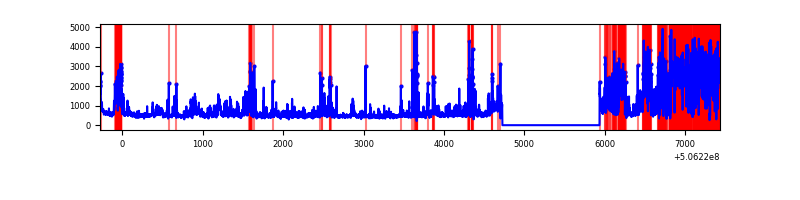

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7713 | 6504 | 770 | 770 | 9.98% | 11.84% |  |
| B | 7713 | 6504 | 893 | 893 | 11.58% | 13.73% |  |
| C | 7713 | 6504 | 829 | 829 | 10.75% | 12.75% |  |
| D | 7713 | 6504 | 246 | 246 | 3.19% | 3.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 2194973 | 13599.98 | 658 | 641 | 161.3 |
| A | 12 | 115 | 550116 | 3405.52 | 658 | 641 | 161.3 |
| A | 0 | 8 | 247096 | 1527.47 | 658 | 641 | 161.3 |
| B | 4 | 206 | 3436507 | 23619.16 | 680 | 657 | 145.5 |
| B | 7 | 0 | 67373 | 458.63 | 680 | 657 | 145.5 |
| B | 5 | 172 | 20563 | 136.84 | 680 | 657 | 145.5 |
| C | 15 | 199 | 2411838 | 13403.65 | 650 | 643 | 179.9 |
| C | 9 | 38 | 805170 | 4472.3 | 650 | 643 | 179.9 |
| C | 14 | 254 | 277090 | 1536.75 | 650 | 643 | 179.9 |
| D | 11 | 129 | 2081478 | 10957.71 | 667 | 638 | 189.9 |
| D | 10 | 181 | 61021 | 317.98 | 667 | 638 | 189.9 |
| D | 2 | 31 | 60262 | 313.98 | 667 | 638 | 189.9 |

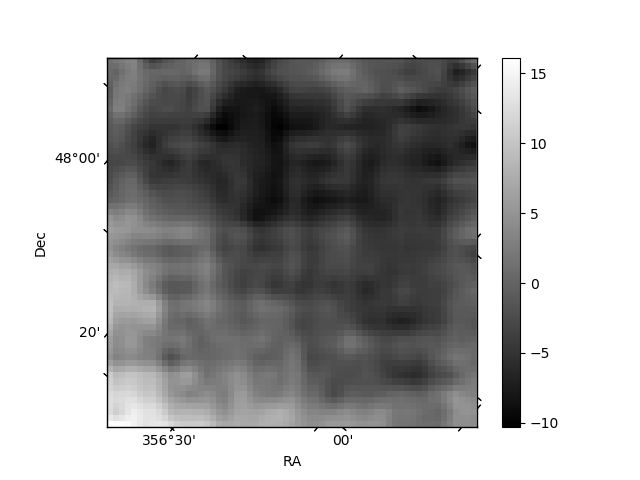

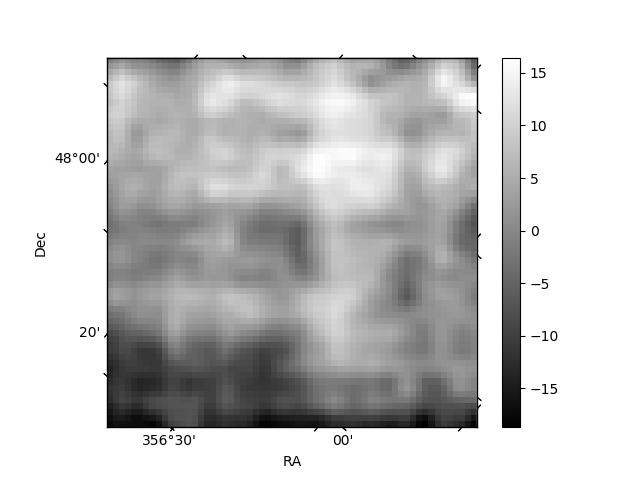

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

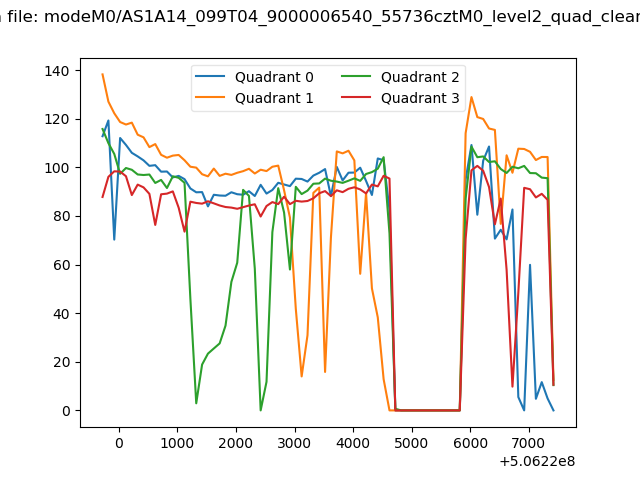

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

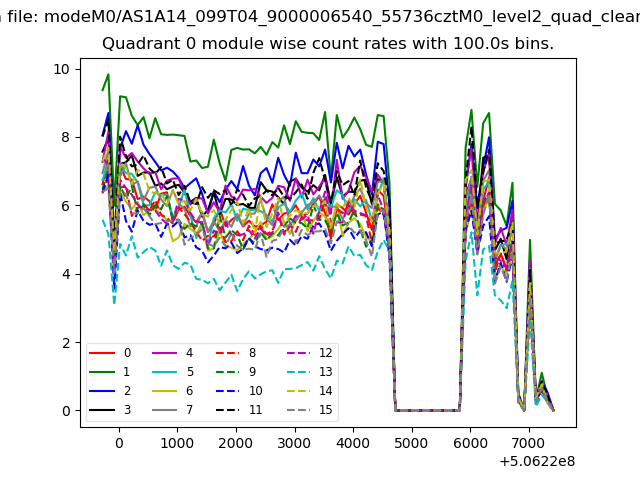

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

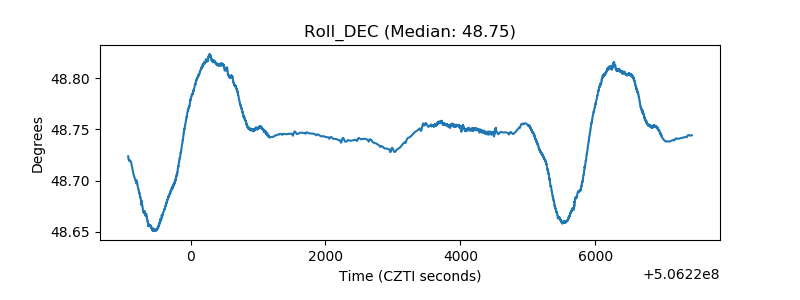

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

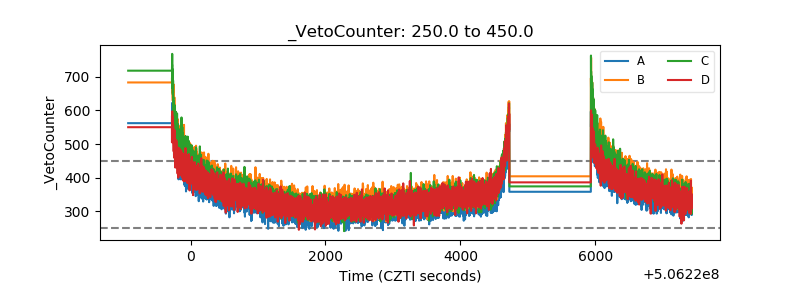

| Veto Counter |  |
