| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55774cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55774cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,790,596,800 | 234,982,080 |
| Size | 1.7 GB | 224.1 MB |
| Events in quadrant A | 24,036,968 | 1,295,815 |
| Events in quadrant B | 9,530,533 | 1,824,841 |
| Events in quadrant C | 9,332,408 | 1,634,735 |
| Events in quadrant D | 21,929,554 | 1,062,647 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84219 | 10 |
| B | 0 | 42266 | 3 |
| C | 0 | 42623 | 3 |
| D | 0 | 78402 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18795 | 4799 | 25.533387% |
| B | 18795 | 503 | 2.676244% |
| C | 18795 | 499 | 2.654961% |
| D | 18795 | 5936 | 31.582868% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

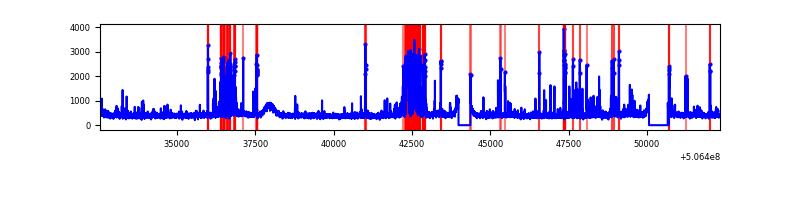

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19789 | 18795 | 4580 | 4580 | 23.14% | 24.37% |  |
| B | 19790 | 18796 | 142 | 142 | 0.72% | 0.76% |  |
| C | 19790 | 18797 | 376 | 376 | 1.90% | 2.00% |  |
| D | 19789 | 18794 | 4738 | 4738 | 23.94% | 25.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 10204501 | 23340.27 | 1779 | 1737 | 437.1 |
| A | 15 | 32 | 4575406 | 10462.92 | 1779 | 1737 | 437.1 |
| A | 8 | 192 | 593990 | 1354.86 | 1779 | 1737 | 437.1 |
| B | 5 | 172 | 1062741 | 2563.14 | 1940 | 1865 | 413.9 |
| B | 7 | 0 | 400155 | 962.29 | 1940 | 1865 | 413.9 |
| B | 4 | 206 | 115114 | 273.62 | 1940 | 1865 | 413.9 |
| C | 9 | 38 | 785626 | 1501.66 | 1923 | 1904 | 521.9 |
| C | 10 | 22 | 408603 | 779.26 | 1923 | 1904 | 521.9 |
| C | 13 | 3 | 204645 | 388.46 | 1923 | 1904 | 521.9 |
| D | 11 | 129 | 12779224 | 28804.0 | 1566 | 1495 | 443.6 |
| D | 7 | 70 | 893297 | 2010.33 | 1566 | 1495 | 443.6 |
| D | 7 | 96 | 484724 | 1089.31 | 1566 | 1495 | 443.6 |

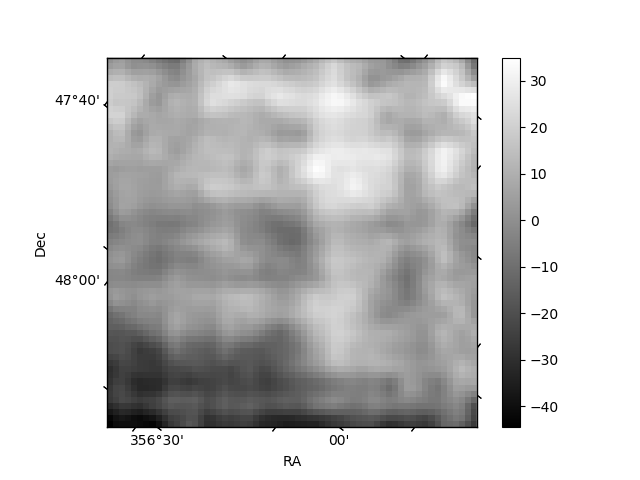

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

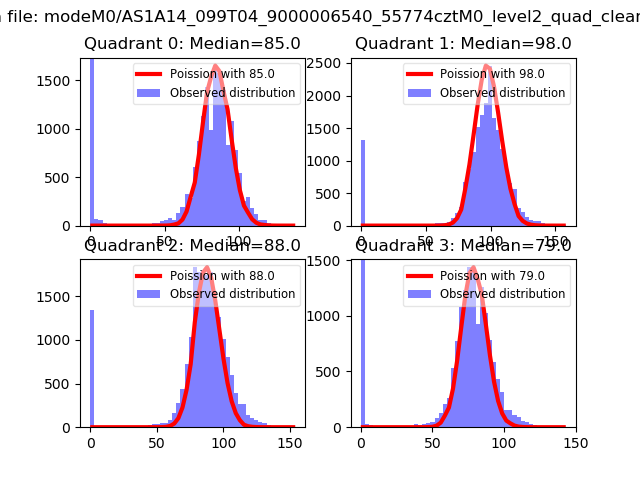

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

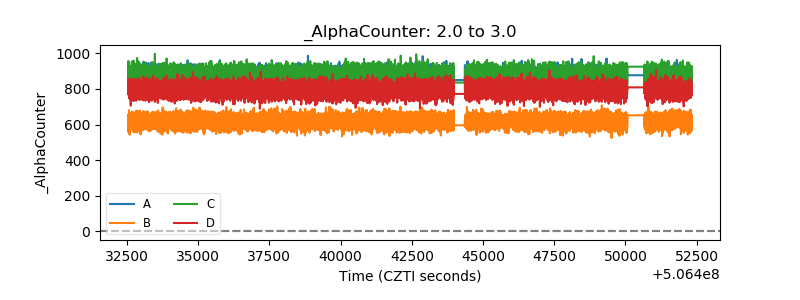

| Alpha Counter |  |
| _CPM_Rate |  |

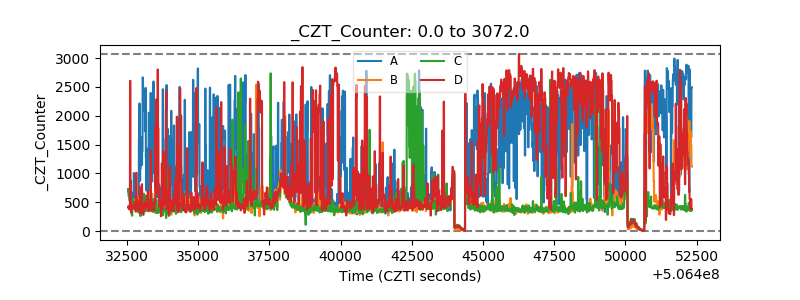

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

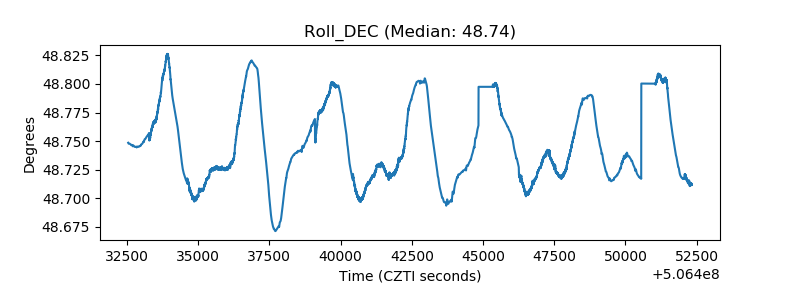

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
