| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55776cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55776cztM0_level2_quad_clean.evt |
| Size (bytes) | 838,990,080 | 80,936,640 |
| Size | 800.1 MB | 77.2 MB |
| Events in quadrant A | 11,305,623 | 440,127 |
| Events in quadrant B | 3,867,455 | 662,644 |
| Events in quadrant C | 2,982,049 | 602,179 |
| Events in quadrant D | 12,392,618 | 286,673 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38163 | 1 |
| B | 0 | 15570 | 1 |
| C | 0 | 13900 | 1 |
| D | 0 | 41386 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6579 | 2489 | 37.832497% |
| B | 6580 | 62 | 0.942249% |
| C | 6580 | 51 | 0.775076% |
| D | 6579 | 3501 | 53.214774% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7569 | 6579 | 2333 | 2333 | 30.82% | 35.46% |  |
| B | 7570 | 6580 | 28 | 28 | 0.37% | 0.43% |  |
| C | 7570 | 6580 | 33 | 33 | 0.44% | 0.50% |  |
| D | 7568 | 6578 | 3483 | 3483 | 46.02% | 52.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 6309976 | 42253.5 | 596 | 581 | 149.3 |
| A | 15 | 32 | 984624 | 6590.06 | 596 | 581 | 149.3 |
| A | 12 | 115 | 810011 | 5420.69 | 596 | 581 | 149.3 |
| B | 5 | 172 | 973256 | 6648.88 | 679 | 653 | 146.3 |
| B | 7 | 0 | 64275 | 434.93 | 679 | 653 | 146.3 |
| B | 2 | 249 | 59472 | 402.1 | 679 | 653 | 146.3 |
| C | 13 | 3 | 123050 | 656.11 | 679 | 675 | 186.5 |
| C | 12 | 250 | 80266 | 426.73 | 679 | 675 | 186.5 |
| C | 10 | 22 | 47058 | 248.68 | 679 | 675 | 186.5 |
| D | 11 | 129 | 9815126 | 72128.72 | 474 | 454 | 136.1 |
| D | 7 | 70 | 324431 | 2380.93 | 474 | 454 | 136.1 |
| D | 8 | 245 | 169691 | 1243.73 | 474 | 454 | 136.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

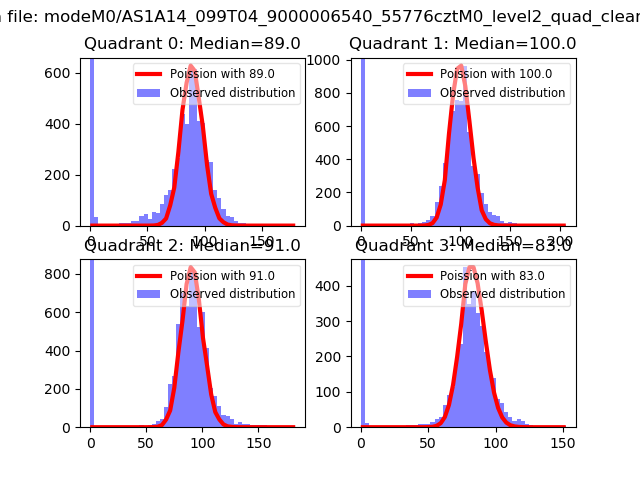

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

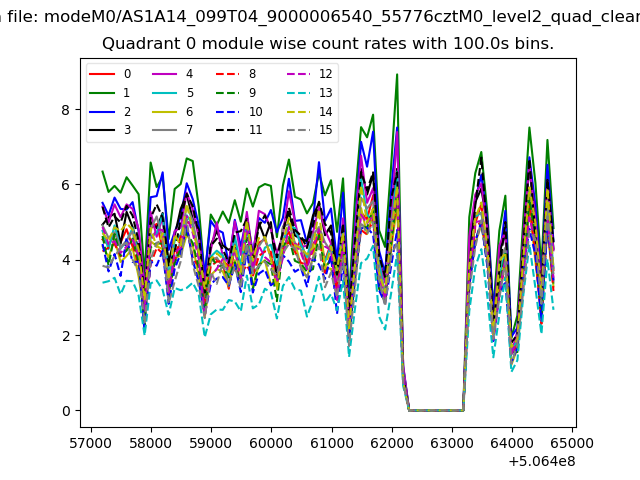

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

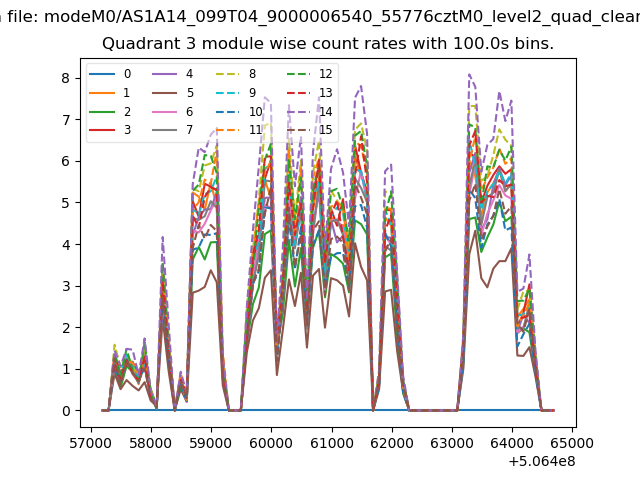

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

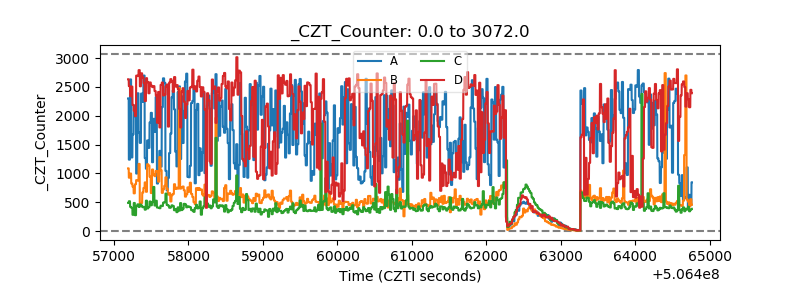

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

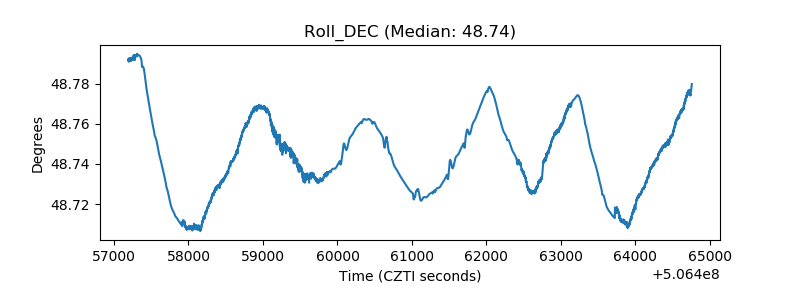

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
