| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55778cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55778cztM0_level2_quad_clean.evt |
| Size (bytes) | 852,609,600 | 82,028,160 |
| Size | 813.1 MB | 78.2 MB |
| Events in quadrant A | 11,707,608 | 415,685 |
| Events in quadrant B | 3,467,505 | 694,981 |
| Events in quadrant C | 3,477,769 | 628,950 |
| Events in quadrant D | 12,387,724 | 275,397 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39446 | 2 |
| B | 0 | 14500 | 2 |
| C | 0 | 15376 | 2 |
| D | 0 | 41402 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6719 | 2858 | 42.536092% |
| B | 6719 | 69 | 1.026939% |
| C | 6719 | 65 | 0.967406% |
| D | 6718 | 3933 | 58.544210% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

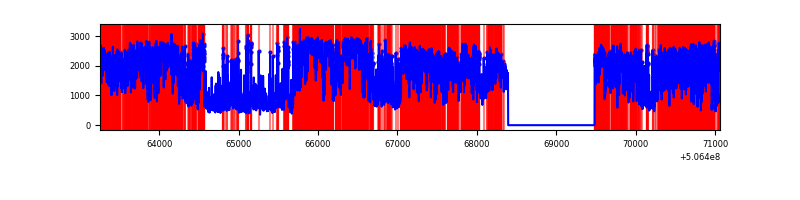

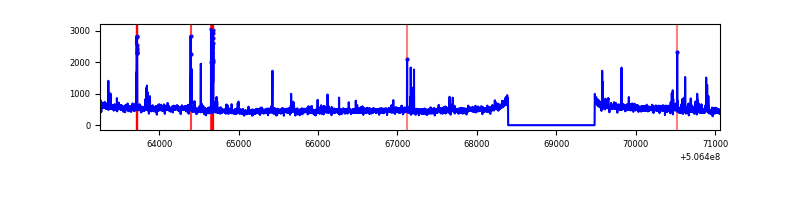

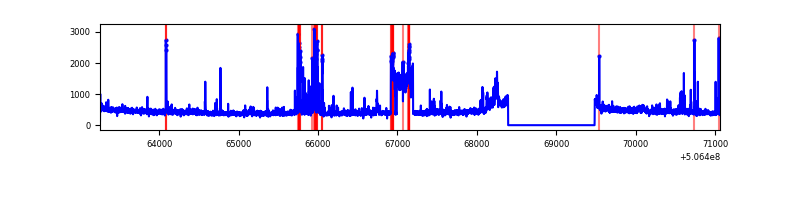

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7808 | 6718 | 2744 | 2744 | 35.14% | 40.85% |  |
| B | 7809 | 6719 | 23 | 23 | 0.29% | 0.34% |  |
| C | 7809 | 6719 | 47 | 47 | 0.60% | 0.70% |  |
| D | 7808 | 6718 | 3850 | 3850 | 49.31% | 57.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 6047959 | 40341.96 | 607 | 592 | 149.9 |
| A | 15 | 32 | 1991350 | 13280.34 | 607 | 592 | 149.9 |
| A | 12 | 115 | 796005 | 5306.19 | 607 | 592 | 149.9 |
| B | 5 | 172 | 479240 | 3170.95 | 707 | 681 | 150.9 |
| B | 2 | 249 | 85700 | 563.34 | 707 | 681 | 150.9 |
| B | 7 | 252 | 43146 | 281.37 | 707 | 681 | 150.9 |
| C | 9 | 38 | 394038 | 2042.97 | 705 | 701 | 192.5 |
| C | 10 | 22 | 151058 | 780.95 | 705 | 701 | 192.5 |
| C | 6 | 223 | 50412 | 258.2 | 705 | 701 | 192.5 |
| D | 11 | 129 | 9124867 | 64852.78 | 497 | 476 | 140.7 |
| D | 7 | 70 | 861713 | 6121.35 | 497 | 476 | 140.7 |
| D | 8 | 245 | 200342 | 1420.57 | 497 | 476 | 140.7 |

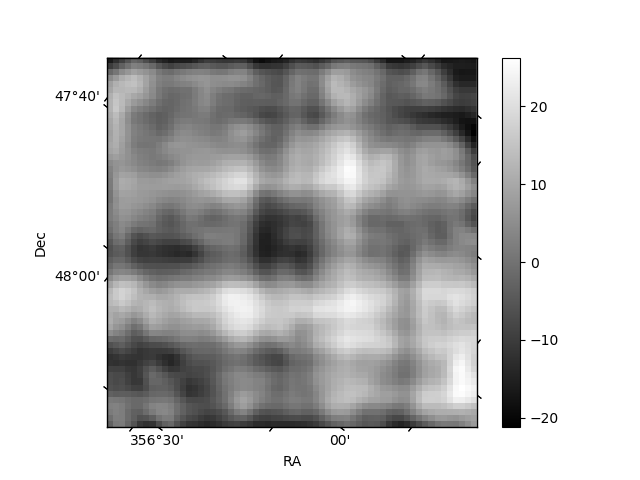

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

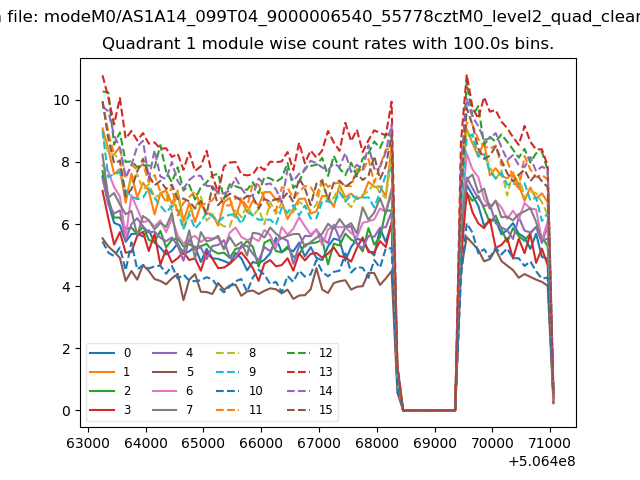

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

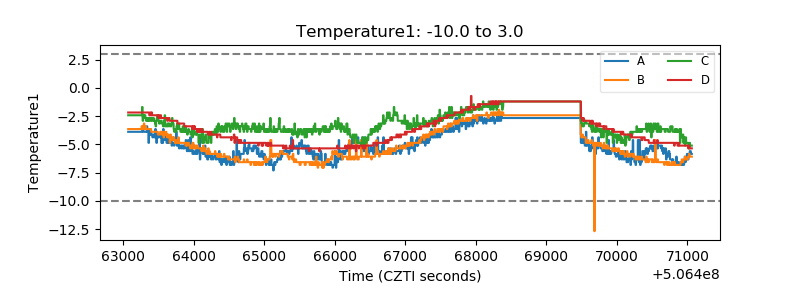

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

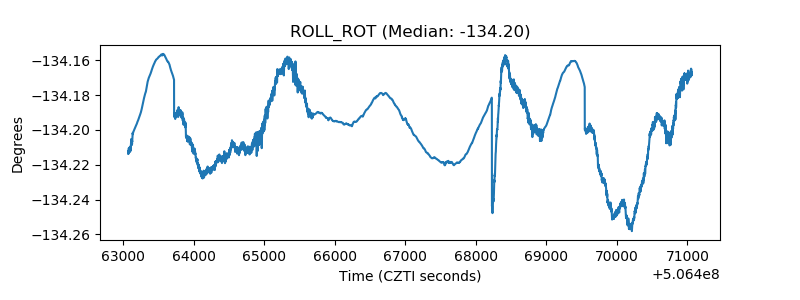

| _ROLL_ROT |  |
