| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_099T04_9000006540_55780cztM0_level2.fits | modeM0/AS1A14_099T04_9000006540_55780cztM0_level2_quad_clean.evt |
| Size (bytes) | 714,795,840 | 88,272,000 |
| Size | 681.7 MB | 84.2 MB |
| Events in quadrant A | 8,104,272 | 567,597 |
| Events in quadrant B | 3,173,754 | 703,132 |
| Events in quadrant C | 3,154,606 | 628,953 |
| Events in quadrant D | 11,518,693 | 316,105 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28613 | 2 |
| B | 0 | 13665 | 2 |
| C | 0 | 14451 | 2 |
| D | 0 | 38727 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6556 | 1139 | 17.373398% |
| B | 6556 | 61 | 0.930445% |
| C | 6556 | 128 | 1.952410% |
| D | 6556 | 3287 | 50.137279% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7751 | 6556 | 1136 | 1136 | 14.66% | 17.33% |  |
| B | 7751 | 6556 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7751 | 6556 | 87 | 87 | 1.12% | 1.33% |  |
| D | 7751 | 6556 | 3043 | 3043 | 39.26% | 46.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2111173 | 12776.64 | 671 | 653 | 165.2 |
| A | 15 | 32 | 1547382 | 9363.57 | 671 | 653 | 165.2 |
| A | 0 | 8 | 620697 | 3753.62 | 671 | 653 | 165.2 |
| B | 5 | 172 | 323809 | 2100.21 | 711 | 683 | 153.9 |
| B | 12 | 111 | 18288 | 114.43 | 711 | 683 | 153.9 |
| B | 11 | 111 | 17212 | 107.43 | 711 | 683 | 153.9 |
| C | 15 | 199 | 182592 | 952.68 | 697 | 692 | 190.9 |
| C | 6 | 223 | 116355 | 605.77 | 697 | 692 | 190.9 |
| C | 12 | 250 | 84234 | 437.54 | 697 | 692 | 190.9 |
| D | 11 | 129 | 8449851 | 58298.46 | 502 | 478 | 144.9 |
| D | 7 | 70 | 471552 | 3250.29 | 502 | 478 | 144.9 |
| D | 3 | 12 | 166550 | 1145.85 | 502 | 478 | 144.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

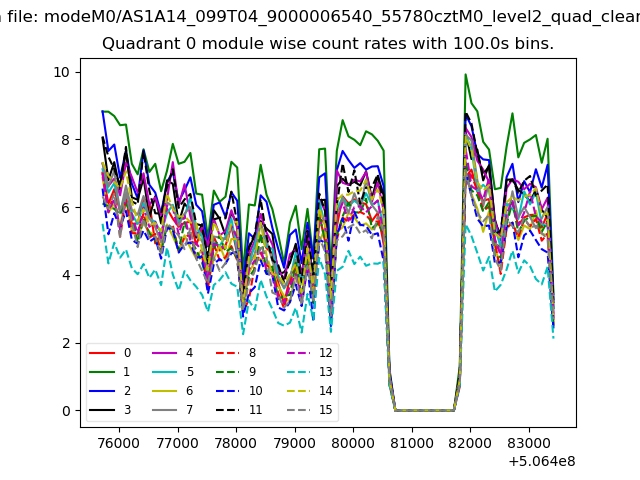

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

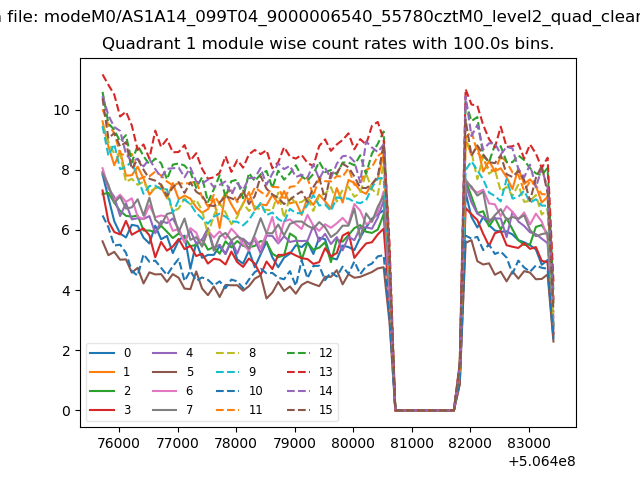

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

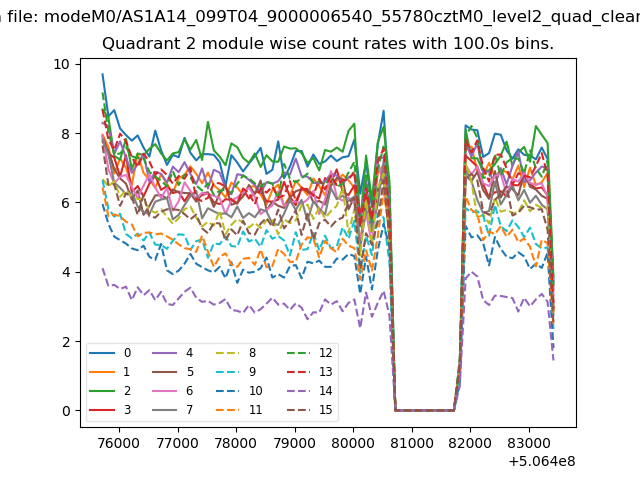

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

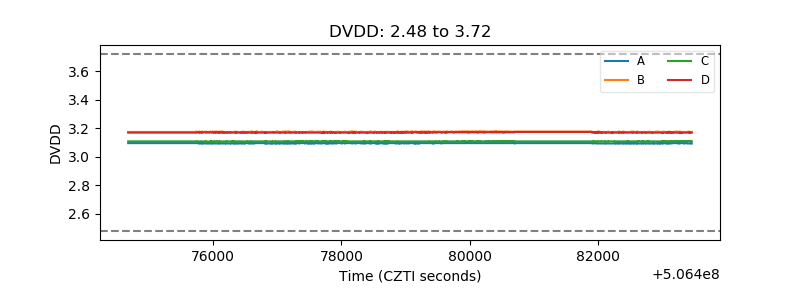

| D_VDD |  |

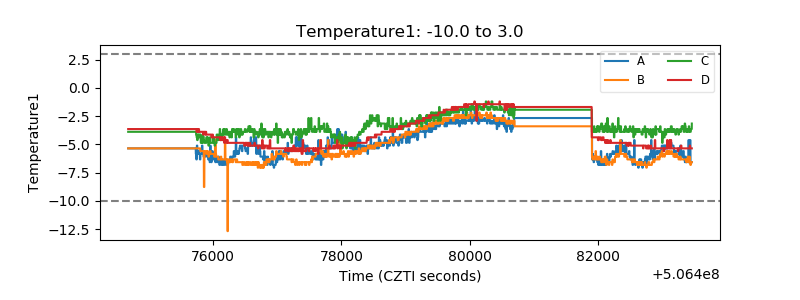

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

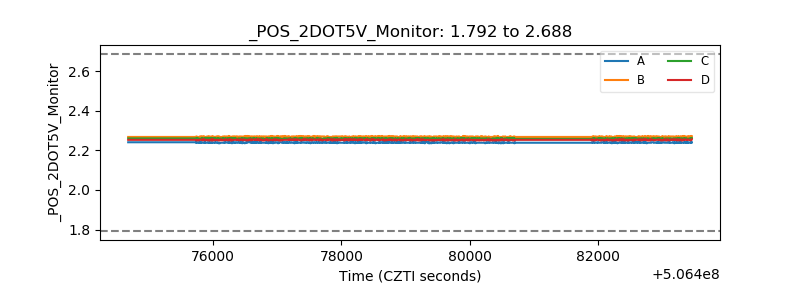

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

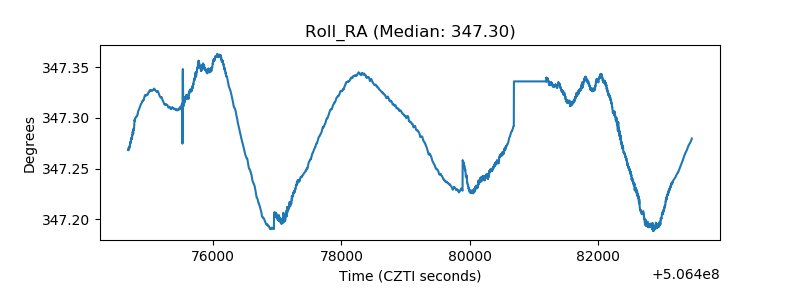

| _Roll_RA |  |

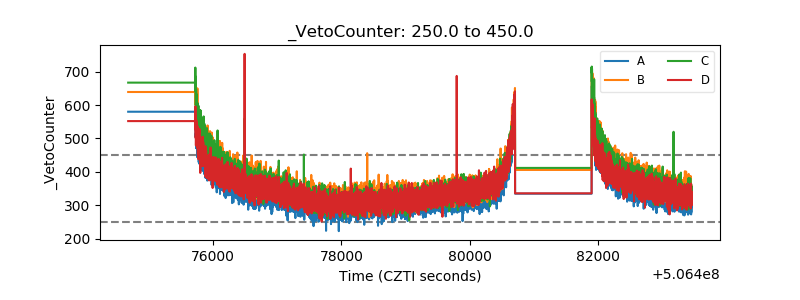

| Veto Counter |  |
