| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_127T10_9000006542_55837cztM0_level2.fits | modeM0/AS1A14_127T10_9000006542_55837cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,908,480 | 95,866,560 |
| Size | 479.6 MB | 91.4 MB |
| Events in quadrant A | 5,218,914 | 607,994 |
| Events in quadrant B | 2,924,667 | 695,363 |
| Events in quadrant C | 2,829,508 | 621,234 |
| Events in quadrant D | 7,121,226 | 510,003 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20032 | 2 |
| B | 0 | 13871 | 2 |
| C | 0 | 13806 | 2 |
| D | 0 | 25906 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6717 | 459 | 6.833408% |
| B | 6718 | 21 | 0.312593% |
| C | 6717 | 19 | 0.282864% |
| D | 6717 | 1013 | 15.081137% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7897 | 6717 | 481 | 481 | 6.09% | 7.16% |  |
| B | 7898 | 6719 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7897 | 6718 | 13 | 13 | 0.16% | 0.19% |  |
| D | 7897 | 6718 | 995 | 995 | 12.60% | 14.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 1416104 | 8369.75 | 678 | 660 | 169.1 |
| A | 3 | 14 | 342028 | 2018.56 | 678 | 660 | 169.1 |
| A | 15 | 32 | 313365 | 1849.07 | 678 | 660 | 169.1 |
| B | 0 | 213 | 112511 | 751.16 | 691 | 667 | 148.9 |
| B | 0 | 199 | 22135 | 144.18 | 691 | 667 | 148.9 |
| B | 12 | 111 | 17705 | 114.43 | 691 | 667 | 148.9 |
| C | 12 | 250 | 62507 | 327.98 | 683 | 676 | 188.5 |
| C | 6 | 223 | 43737 | 228.41 | 683 | 676 | 188.5 |
| C | 13 | 3 | 28035 | 145.12 | 683 | 676 | 188.5 |
| D | 11 | 129 | 3362114 | 18396.99 | 635 | 607 | 182.7 |
| D | 3 | 12 | 1030122 | 5634.37 | 635 | 607 | 182.7 |
| D | 10 | 253 | 51973 | 281.12 | 635 | 607 | 182.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

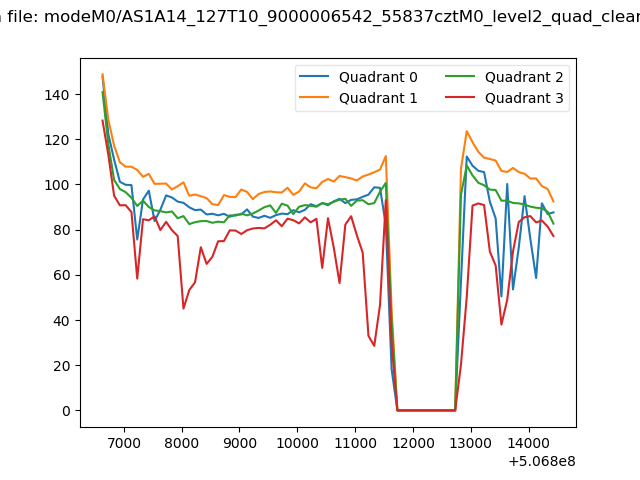

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

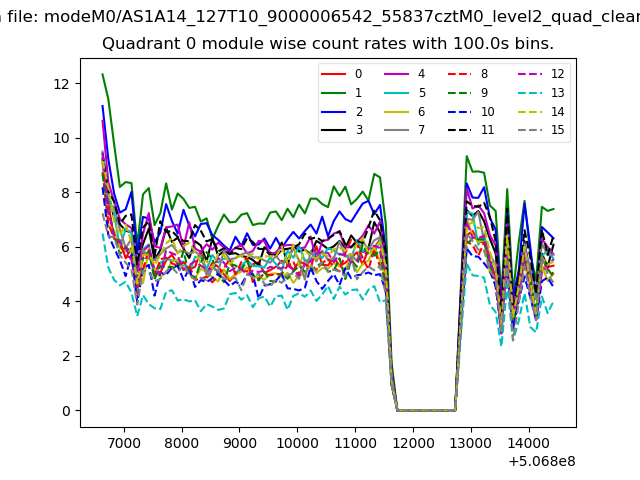

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

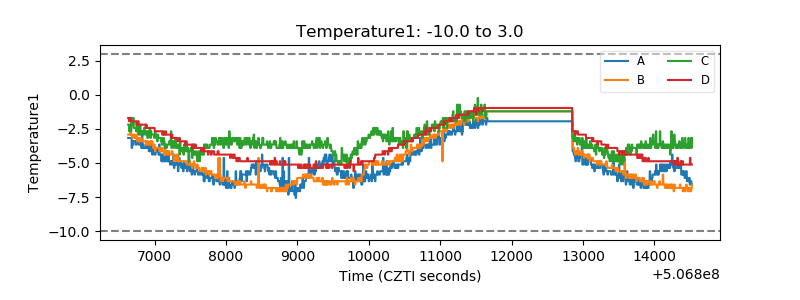

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

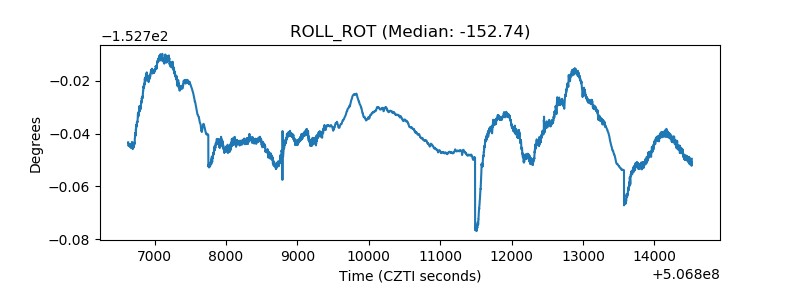

| _ROLL_ROT |  |
| _Roll_DEC |  |

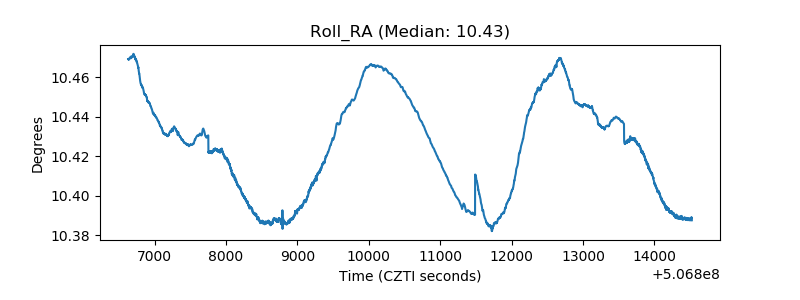

| _Roll_RA |  |
| Veto Counter |  |
