| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_127T10_9000006542_55847cztM0_level2.fits | modeM0/AS1A14_127T10_9000006542_55847cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,425,761,280 | 249,917,760 |
| Size | 1.3 GB | 238.3 MB |
| Events in quadrant A | 11,919,604 | 1,608,284 |
| Events in quadrant B | 8,736,603 | 1,818,264 |
| Events in quadrant C | 8,699,787 | 1,654,277 |
| Events in quadrant D | 21,969,270 | 1,193,438 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47935 | 2 |
| B | 0 | 40529 | 2 |
| C | 0 | 40697 | 2 |
| D | 0 | 78279 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18755 | 1150 | 6.131698% |
| B | 18756 | 415 | 2.212625% |
| C | 18756 | 189 | 1.007678% |
| D | 18756 | 4070 | 21.699723% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19679 | 18754 | 816 | 816 | 4.15% | 4.35% |  |
| B | 19681 | 18756 | 96 | 96 | 0.49% | 0.51% |  |
| C | 19681 | 18756 | 119 | 119 | 0.60% | 0.63% |  |
| D | 19681 | 18756 | 3758 | 3758 | 19.09% | 20.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 206 | 1323308 | 2806.33 | 1904 | 1861 | 470.9 |
| A | 8 | 249 | 745002 | 1578.19 | 1904 | 1861 | 470.9 |
| A | 8 | 192 | 641294 | 1357.95 | 1904 | 1861 | 470.9 |
| B | 5 | 185 | 502888 | 1189.78 | 1933 | 1859 | 421.1 |
| B | 7 | 0 | 169307 | 397.63 | 1933 | 1859 | 421.1 |
| B | 0 | 171 | 77924 | 180.63 | 1933 | 1859 | 421.1 |
| C | 12 | 252 | 496269 | 944.3 | 1910 | 1893 | 523.5 |
| C | 13 | 3 | 147751 | 278.6 | 1910 | 1893 | 523.5 |
| C | 6 | 223 | 120837 | 227.19 | 1910 | 1893 | 523.5 |
| D | 11 | 129 | 9551115 | 19465.9 | 1714 | 1640 | 490.6 |
| D | 8 | 245 | 3328240 | 6781.03 | 1714 | 1640 | 490.6 |
| D | 2 | 62 | 496378 | 1008.49 | 1714 | 1640 | 490.6 |

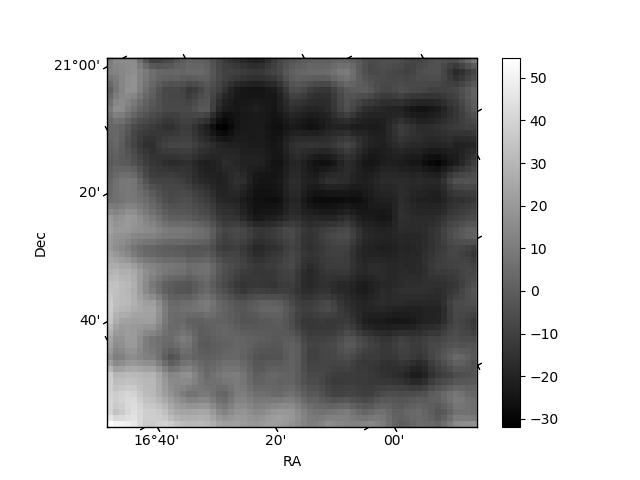

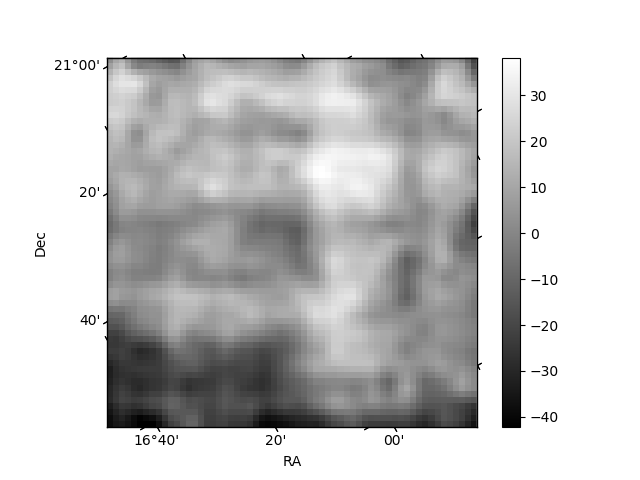

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

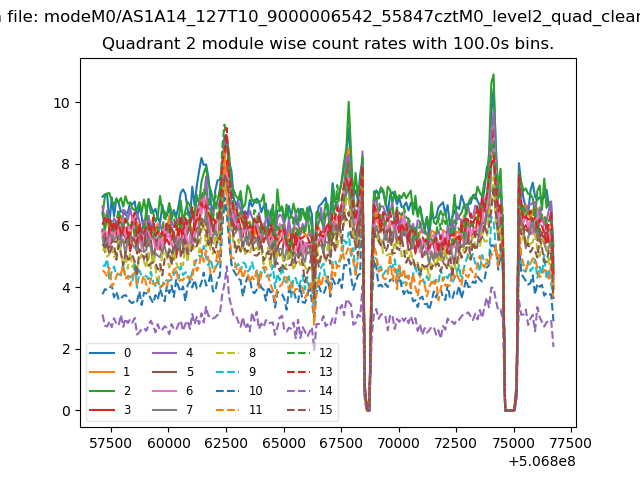

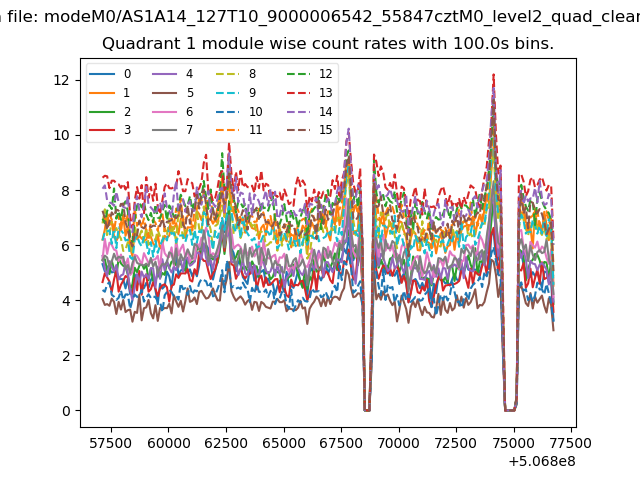

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

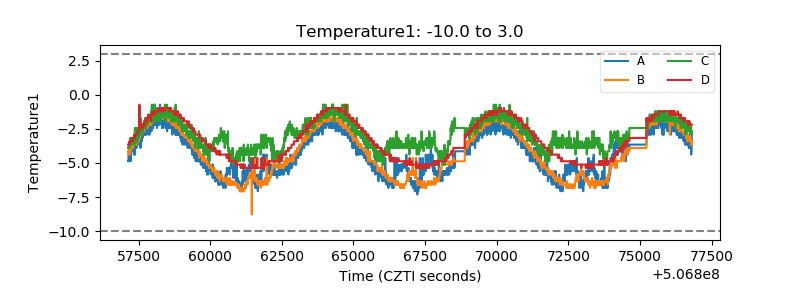

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

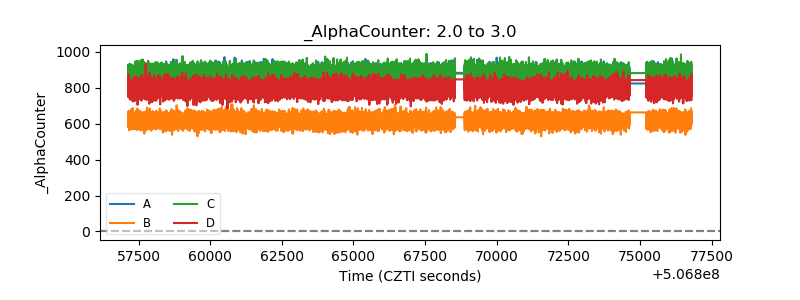

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

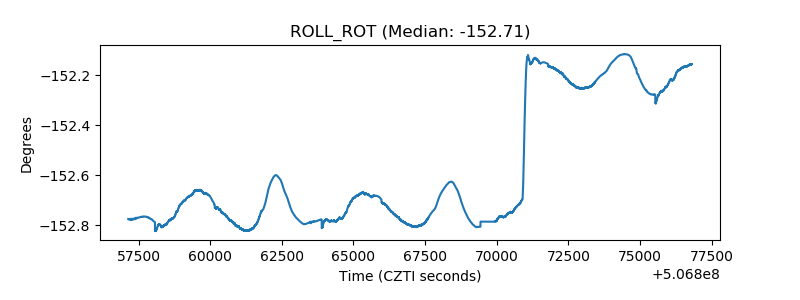

| _ROLL_ROT |  |

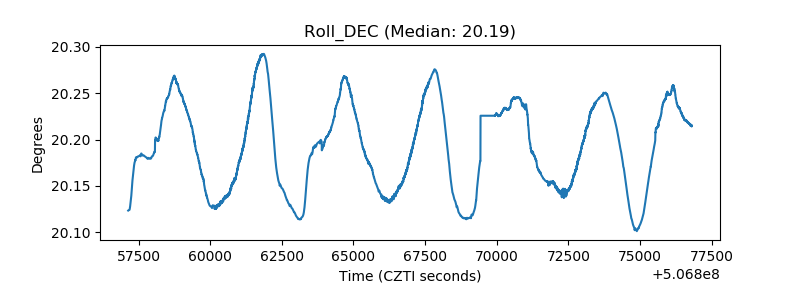

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
