| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_127T10_9000006542_55848cztM0_level2.fits | modeM0/AS1A14_127T10_9000006542_55848cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,136,960 | 89,976,960 |
| Size | 517.0 MB | 85.8 MB |
| Events in quadrant A | 8,124,530 | 467,247 |
| Events in quadrant B | 2,930,214 | 666,549 |
| Events in quadrant C | 3,238,324 | 587,851 |
| Events in quadrant D | 5,255,877 | 536,569 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28783 | 2 |
| B | 0 | 13946 | 1 |
| C | 0 | 15031 | 1 |
| D | 0 | 20356 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6677 | 1844 | 27.617193% |
| B | 6677 | 43 | 0.644002% |
| C | 6678 | 134 | 2.006589% |
| D | 6678 | 495 | 7.412399% |

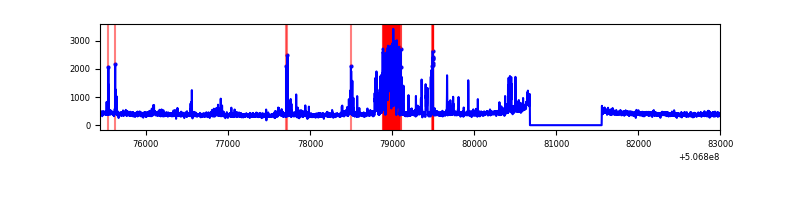

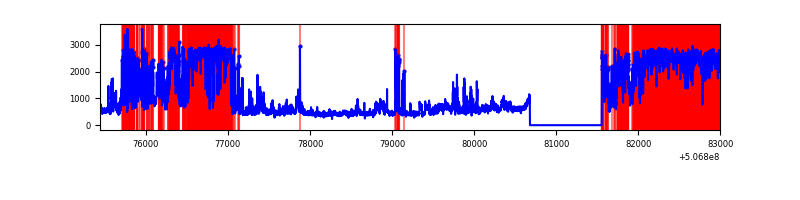

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 6677 | 1779 | 1779 | 23.56% | 26.64% |  |
| B | 7552 | 6677 | 15 | 15 | 0.20% | 0.22% |  |
| C | 7553 | 6679 | 138 | 138 | 1.83% | 2.07% |  |
| D | 7553 | 6678 | 499 | 499 | 6.61% | 7.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 2977411 | 20328.37 | 586 | 572 | 146.4 |
| A | 8 | 206 | 1761908 | 12027.89 | 586 | 572 | 146.4 |
| A | 0 | 8 | 404538 | 2758.62 | 586 | 572 | 146.4 |
| B | 5 | 185 | 114583 | 783.41 | 670 | 646 | 145.4 |
| B | 2 | 249 | 44371 | 300.64 | 670 | 646 | 145.4 |
| B | 0 | 171 | 30059 | 202.24 | 670 | 646 | 145.4 |
| C | 13 | 3 | 519259 | 2855.6 | 658 | 654 | 181.6 |
| C | 7 | 220 | 38950 | 210.87 | 658 | 654 | 181.6 |
| C | 15 | 131 | 30089 | 162.08 | 658 | 654 | 181.6 |
| D | 11 | 129 | 2166102 | 11716.36 | 645 | 616 | 184.8 |
| D | 3 | 12 | 108032 | 581.17 | 645 | 616 | 184.8 |
| D | 8 | 240 | 87235 | 468.65 | 645 | 616 | 184.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

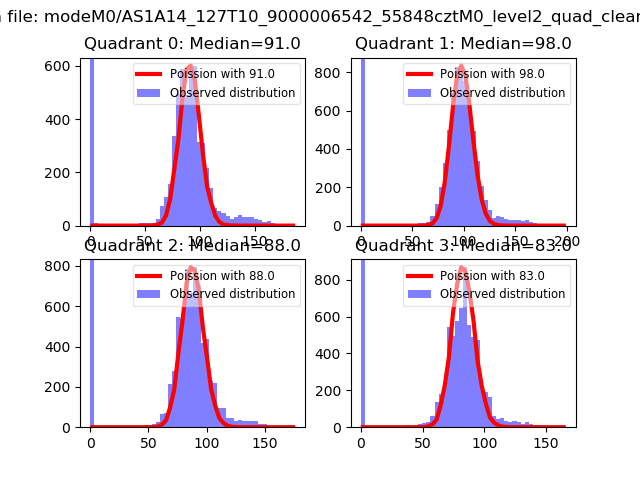

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

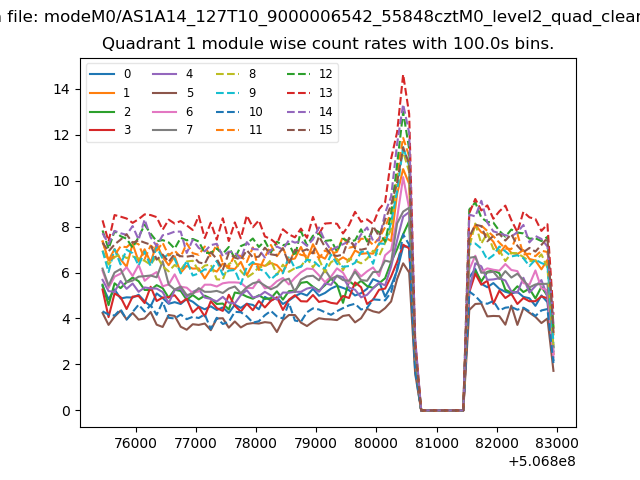

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

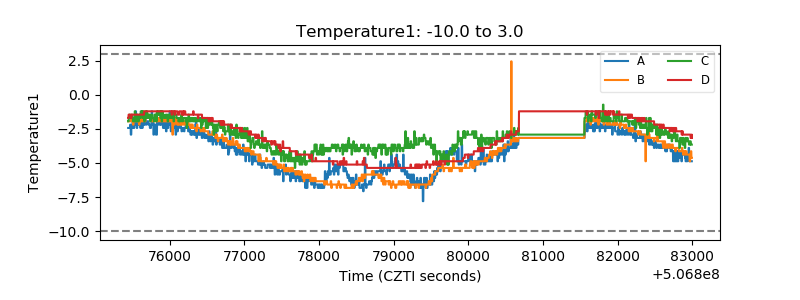

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

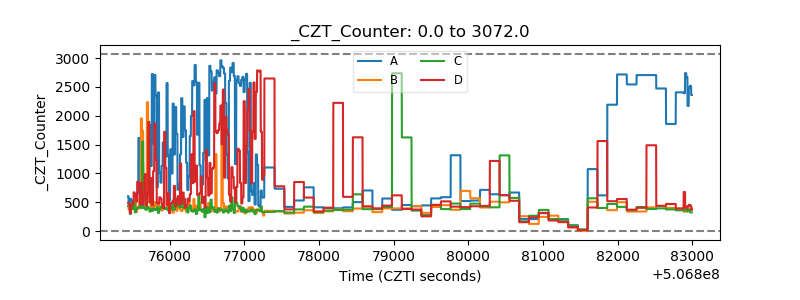

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

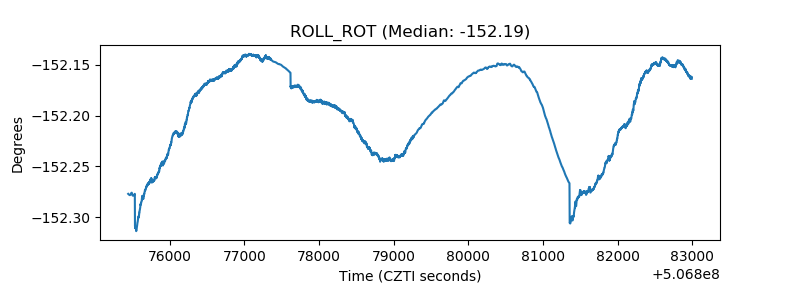

| _ROLL_ROT |  |
| _Roll_DEC |  |

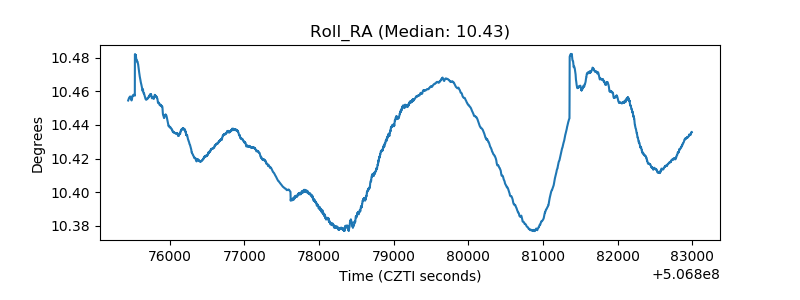

| _Roll_RA |  |
| Veto Counter |  |
