| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_127T10_9000006542_55855cztM0_level2.fits | modeM0/AS1A14_127T10_9000006542_55855cztM0_level2_quad_clean.evt |
| Size (bytes) | 695,027,520 | 85,527,360 |
| Size | 662.8 MB | 81.6 MB |
| Events in quadrant A | 6,016,209 | 529,038 |
| Events in quadrant B | 3,297,894 | 613,763 |
| Events in quadrant C | 4,583,244 | 533,846 |
| Events in quadrant D | 11,304,573 | 438,473 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22521 | 2 |
| B | 0 | 14684 | 2 |
| C | 0 | 18400 | 2 |
| D | 0 | 38296 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6808 | 576 | 8.460635% |
| B | 6808 | 172 | 2.526439% |
| C | 6808 | 439 | 6.448296% |
| D | 6807 | 1327 | 19.494638% |

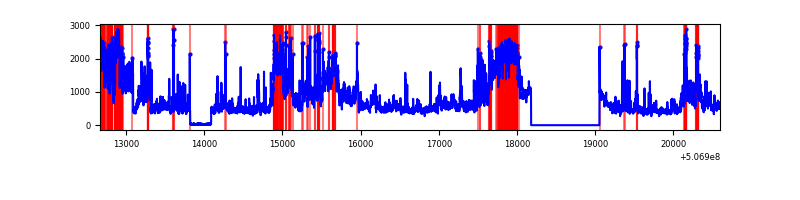

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7934 | 7059 | 466 | 466 | 5.87% | 6.60% |  |
| B | 7934 | 7059 | 15 | 15 | 0.19% | 0.21% |  |
| C | 7934 | 7059 | 376 | 376 | 4.74% | 5.33% |  |
| D | 7933 | 7047 | 1668 | 1668 | 21.03% | 23.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 2871021 | 16265.49 | 716 | 699 | 176.5 |
| A | 4 | 249 | 113525 | 639.36 | 716 | 699 | 176.5 |
| A | 3 | 14 | 56643 | 317.02 | 716 | 699 | 176.5 |
| B | 0 | 197 | 166823 | 1053.16 | 728 | 702 | 157.7 |
| B | 7 | 252 | 79517 | 499.67 | 728 | 702 | 157.7 |
| B | 0 | 199 | 47876 | 299.07 | 728 | 702 | 157.7 |
| C | 15 | 199 | 1074342 | 5578.45 | 701 | 697 | 192.5 |
| C | 6 | 223 | 296028 | 1534.48 | 701 | 697 | 192.5 |
| C | 12 | 252 | 293962 | 1523.75 | 701 | 697 | 192.5 |
| D | 2 | 62 | 6943387 | 36923.29 | 660 | 632 | 188.0 |
| D | 11 | 129 | 1244203 | 6613.62 | 660 | 632 | 188.0 |
| D | 10 | 102 | 127772 | 676.16 | 660 | 632 | 188.0 |

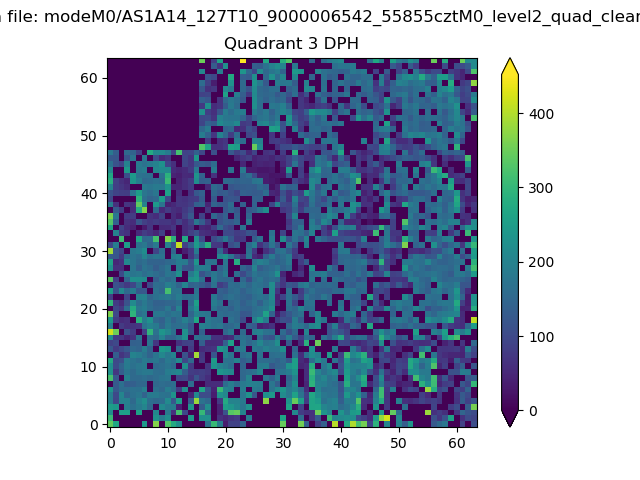

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

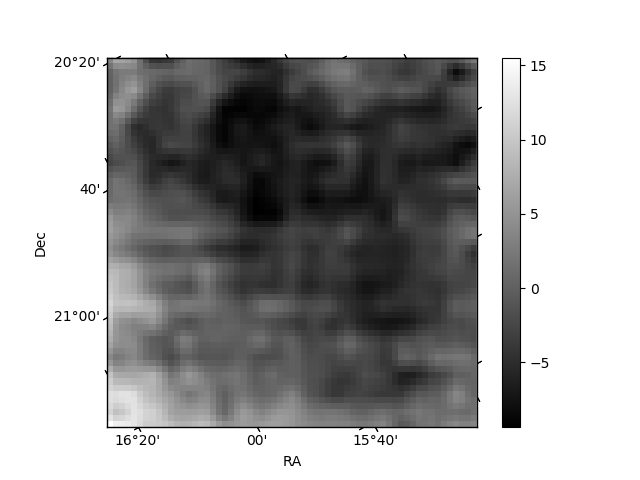

| Quadrant D |  |
 |

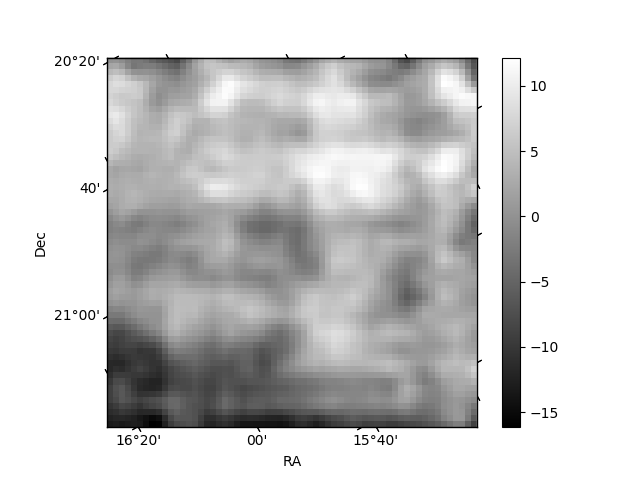

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

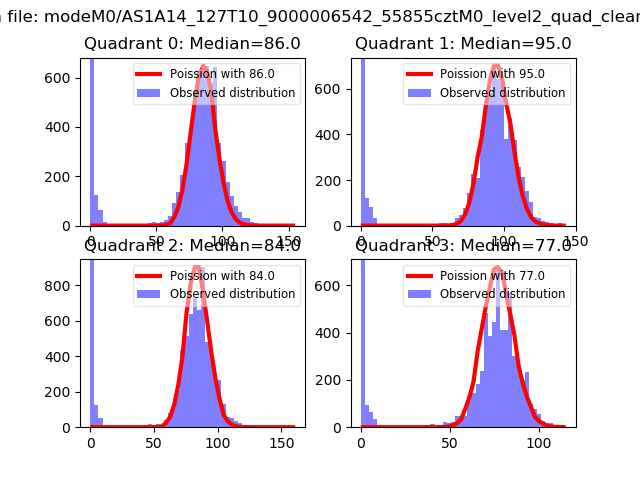

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

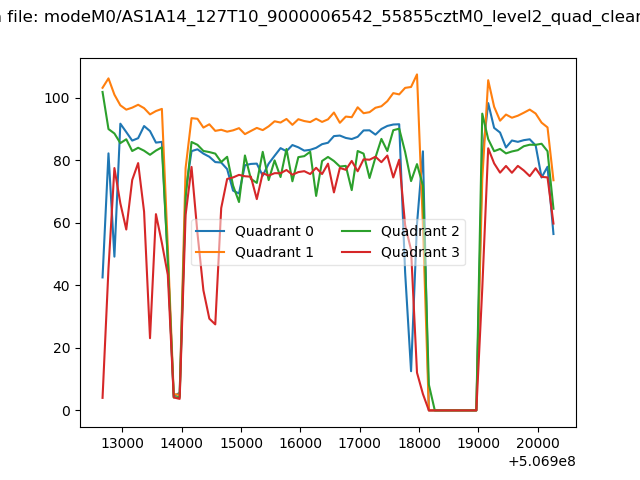

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

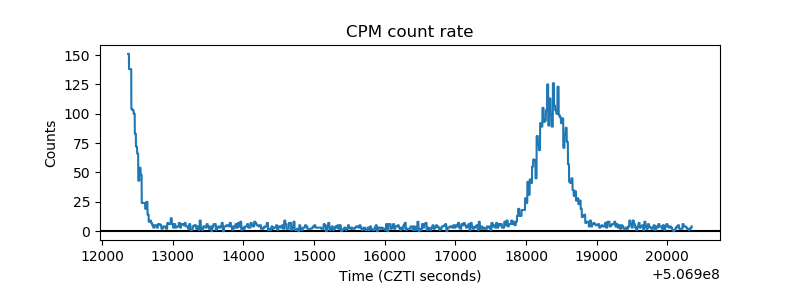

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

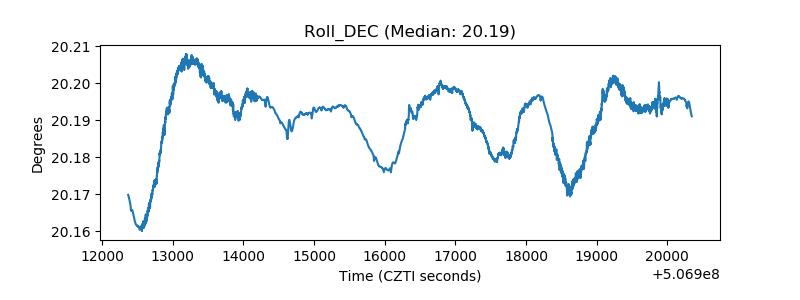

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
