| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55857cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55857cztM0_level2_quad_clean.evt |
| Size (bytes) | 750,329,280 | 108,688,320 |
| Size | 715.6 MB | 103.7 MB |
| Events in quadrant A | 7,506,272 | 673,146 |
| Events in quadrant B | 4,404,529 | 752,245 |
| Events in quadrant C | 4,147,360 | 690,940 |
| Events in quadrant D | 11,105,487 | 623,641 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27889 | 1 |
| B | 0 | 18953 | 1 |
| C | 0 | 18302 | 1 |
| D | 0 | 38751 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7916 | 603 | 7.617484% |
| B | 7916 | 389 | 4.914098% |
| C | 7917 | 177 | 2.235695% |
| D | 7917 | 674 | 8.513326% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

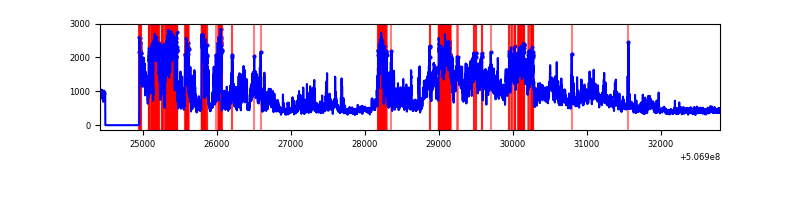

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8376 | 7917 | 530 | 530 | 6.33% | 6.69% |  |
| B | 8376 | 7917 | 213 | 213 | 2.54% | 2.69% |  |
| C | 8377 | 7918 | 139 | 139 | 1.66% | 1.76% |  |
| D | 8377 | 7918 | 933 | 933 | 11.14% | 11.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 3681997 | 18535.59 | 805 | 783 | 198.6 |
| A | 3 | 14 | 210922 | 1058.09 | 805 | 783 | 198.6 |
| A | 5 | 168 | 196884 | 987.4 | 805 | 783 | 198.6 |
| B | 5 | 236 | 908689 | 5252.46 | 811 | 782 | 172.9 |
| B | 0 | 197 | 94340 | 541.26 | 811 | 782 | 172.9 |
| B | 5 | 32 | 50081 | 285.21 | 811 | 782 | 172.9 |
| C | 12 | 254 | 406711 | 1868.56 | 804 | 797 | 217.2 |
| C | 12 | 252 | 308940 | 1418.48 | 804 | 797 | 217.2 |
| C | 6 | 223 | 99165 | 452.82 | 804 | 797 | 217.2 |
| D | 2 | 62 | 7374952 | 33676.43 | 779 | 742 | 219.0 |
| D | 6 | 239 | 150167 | 682.39 | 779 | 742 | 219.0 |
| D | 3 | 12 | 112138 | 508.72 | 779 | 742 | 219.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

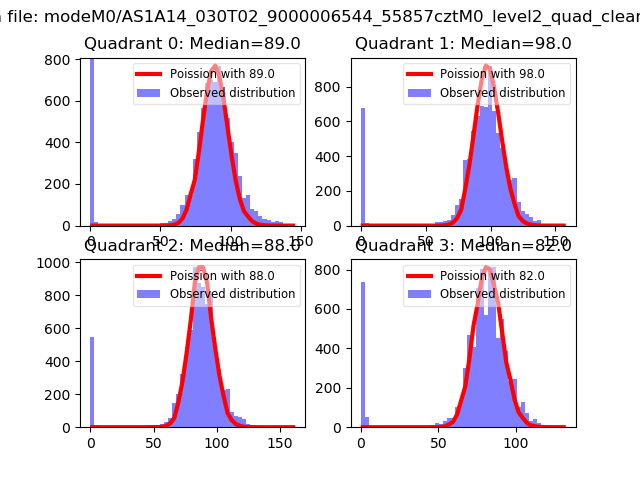

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

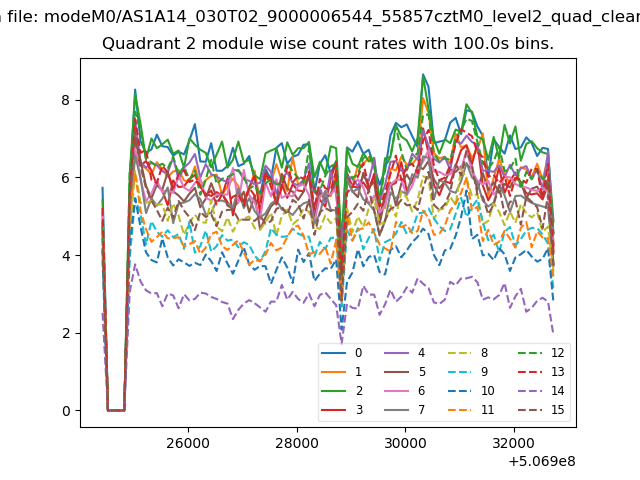

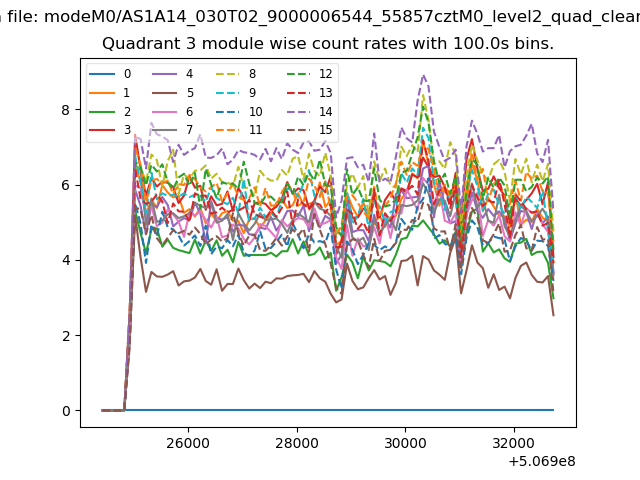

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

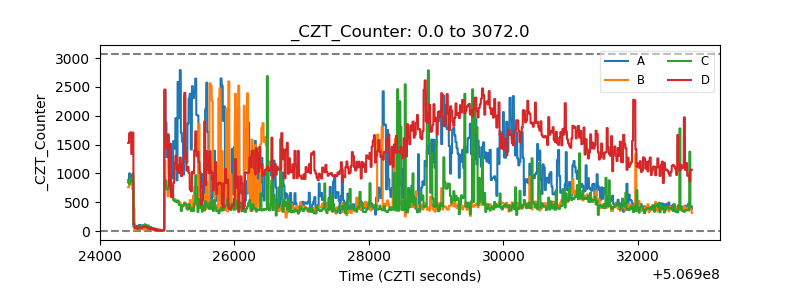

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

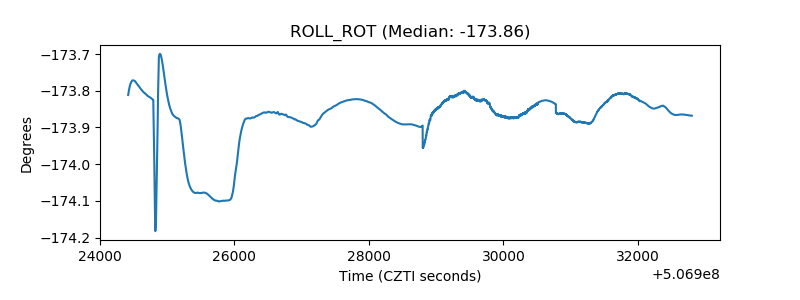

| _ROLL_ROT |  |

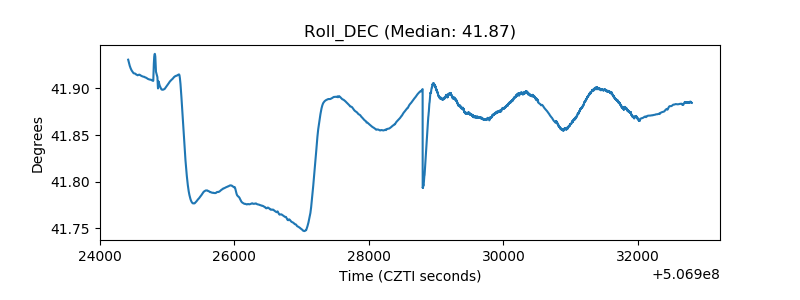

| _Roll_DEC |  |

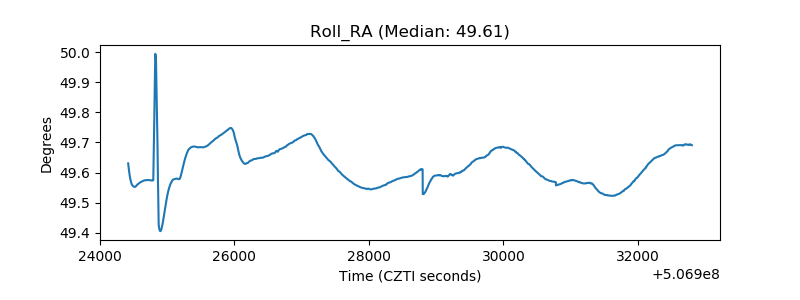

| _Roll_RA |  |
| Veto Counter |  |
