| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55866cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55866cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,338,240 | 92,957,760 |
| Size | 461.9 MB | 88.7 MB |
| Events in quadrant A | 6,013,510 | 578,045 |
| Events in quadrant B | 2,953,260 | 676,553 |
| Events in quadrant C | 3,529,615 | 594,632 |
| Events in quadrant D | 4,927,895 | 512,830 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22319 | 2 |
| B | 0 | 13524 | 2 |
| C | 0 | 15259 | 2 |
| D | 0 | 19387 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6488 | 682 | 10.511714% |
| B | 6488 | 34 | 0.524044% |
| C | 6488 | 124 | 1.911221% |
| D | 6488 | 673 | 10.372996% |

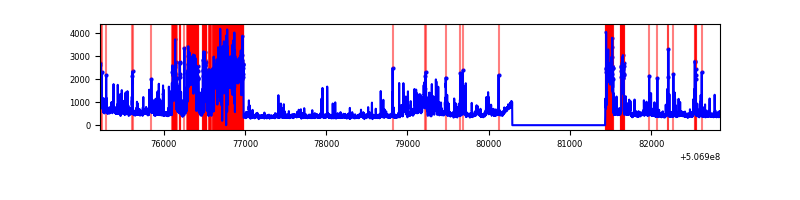

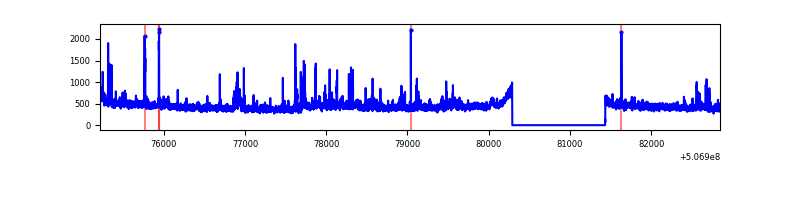

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6489 | 686 | 686 | 8.99% | 10.57% |  |
| B | 7633 | 6489 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7633 | 6489 | 102 | 102 | 1.34% | 1.57% |  |
| D | 7633 | 6488 | 549 | 549 | 7.19% | 8.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 1531638 | 9603.49 | 646 | 630 | 159.4 |
| A | 8 | 249 | 675776 | 4234.96 | 646 | 630 | 159.4 |
| A | 4 | 249 | 510236 | 3196.58 | 646 | 630 | 159.4 |
| B | 0 | 199 | 61505 | 420.9 | 671 | 647 | 144.6 |
| B | 0 | 197 | 47331 | 322.87 | 671 | 647 | 144.6 |
| B | 0 | 213 | 45817 | 312.4 | 671 | 647 | 144.6 |
| C | 12 | 254 | 254954 | 1404.62 | 659 | 654 | 181.0 |
| C | 15 | 199 | 189018 | 1040.42 | 659 | 654 | 181.0 |
| C | 12 | 252 | 137903 | 758.09 | 659 | 654 | 181.0 |
| D | 11 | 129 | 1452237 | 8214.97 | 625 | 597 | 176.7 |
| D | 2 | 153 | 306888 | 1733.33 | 625 | 597 | 176.7 |
| D | 8 | 160 | 223159 | 1259.5 | 625 | 597 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

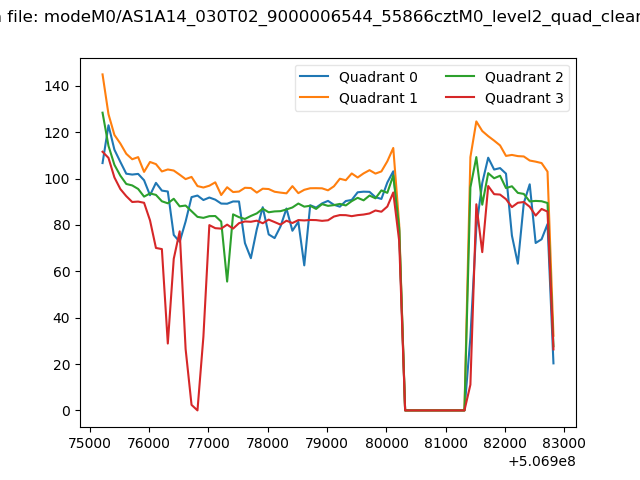

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

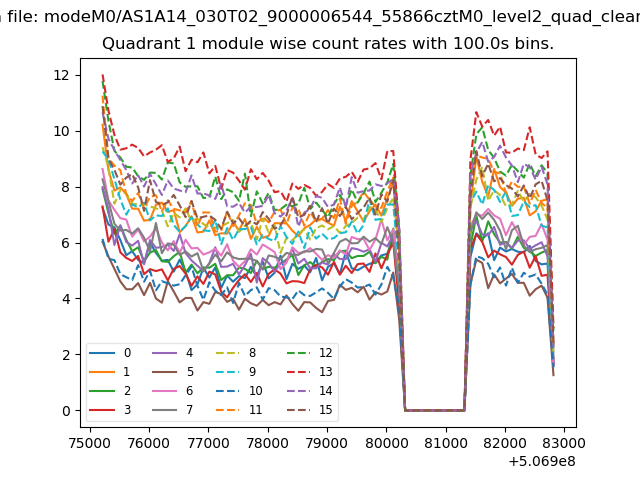

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

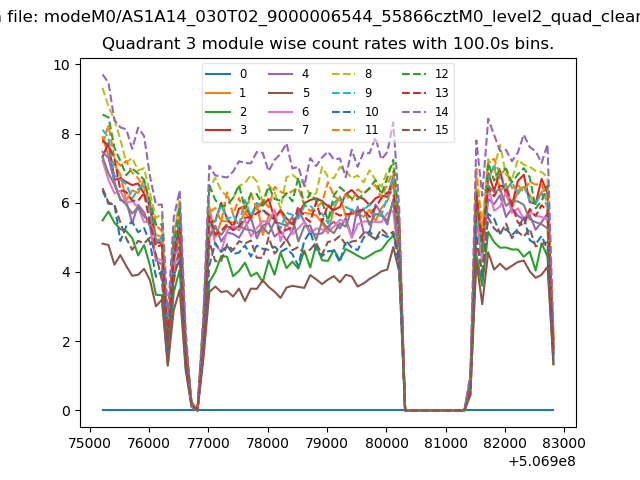

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

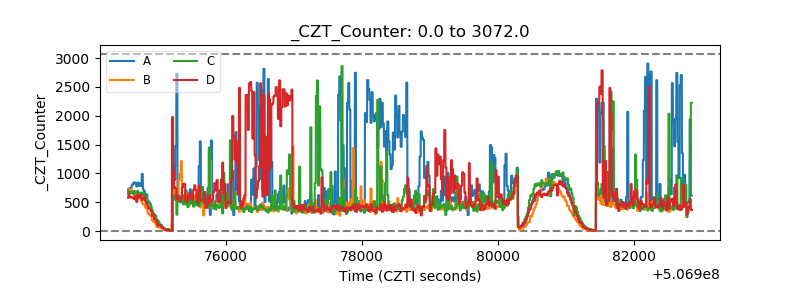

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

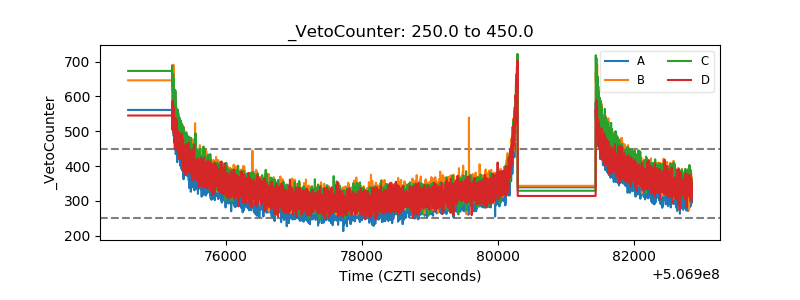

| Veto Counter |  |
