| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55867cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55867cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,310,720 | 91,313,280 |
| Size | 460.0 MB | 87.1 MB |
| Events in quadrant A | 5,556,700 | 559,143 |
| Events in quadrant B | 2,850,185 | 672,275 |
| Events in quadrant C | 4,609,436 | 551,019 |
| Events in quadrant D | 4,343,156 | 538,806 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20863 | 2 |
| B | 0 | 13368 | 2 |
| C | 0 | 18341 | 2 |
| D | 0 | 17451 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6356 | 743 | 11.689742% |
| B | 6356 | 44 | 0.692259% |
| C | 6356 | 587 | 9.235368% |
| D | 6355 | 255 | 4.012589% |

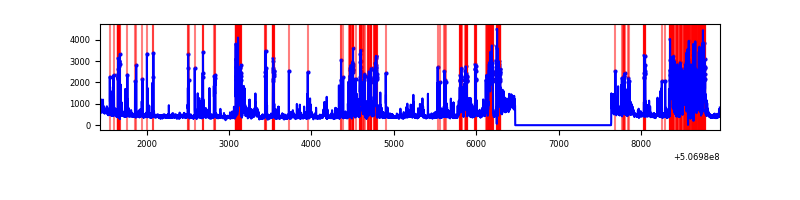

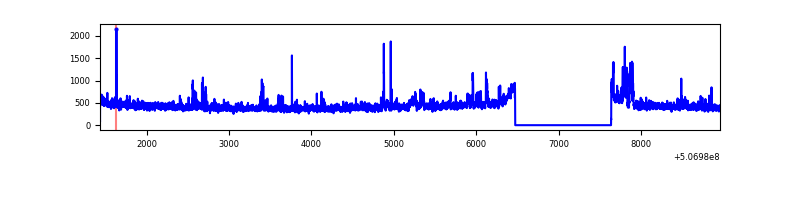

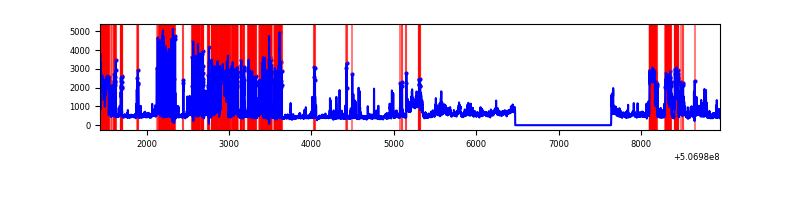

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7521 | 6357 | 657 | 657 | 8.74% | 10.34% |  |
| B | 7521 | 6357 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7521 | 6357 | 438 | 438 | 5.82% | 6.89% |  |
| D | 7520 | 6356 | 228 | 228 | 3.03% | 3.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 1335868 | 8543.7 | 633 | 616 | 156.3 |
| A | 8 | 249 | 1069916 | 6841.99 | 633 | 616 | 156.3 |
| A | 4 | 249 | 293341 | 1873.02 | 633 | 616 | 156.3 |
| B | 5 | 236 | 138002 | 976.87 | 665 | 642 | 140.6 |
| B | 0 | 199 | 36404 | 254.33 | 665 | 642 | 140.6 |
| B | 12 | 111 | 16525 | 112.96 | 665 | 642 | 140.6 |
| C | 15 | 199 | 1064804 | 6169.29 | 629 | 623 | 172.5 |
| C | 13 | 3 | 421162 | 2437.96 | 629 | 623 | 172.5 |
| C | 12 | 254 | 390975 | 2262.96 | 629 | 623 | 172.5 |
| D | 4 | 160 | 694103 | 3797.13 | 640 | 612 | 182.6 |
| D | 2 | 153 | 358259 | 1958.26 | 640 | 612 | 182.6 |
| D | 2 | 62 | 236675 | 1292.54 | 640 | 612 | 182.6 |

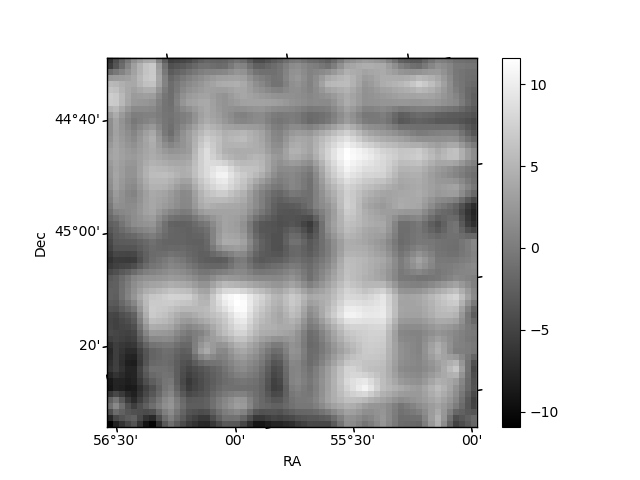

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

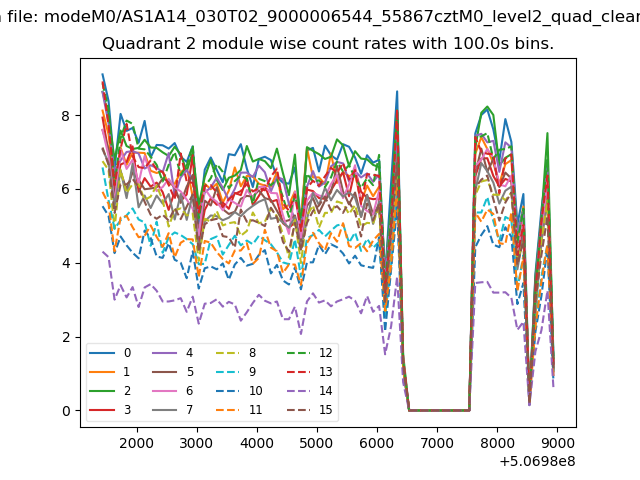

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

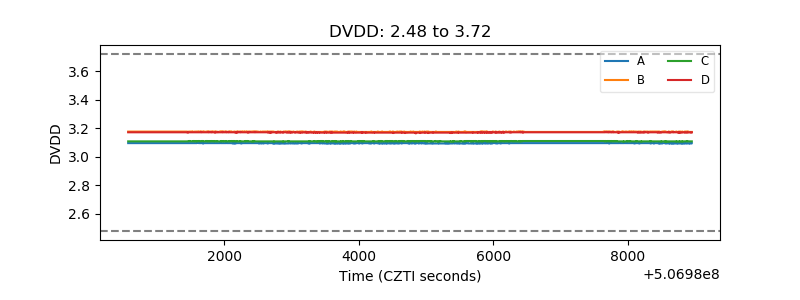

| D_VDD |  |

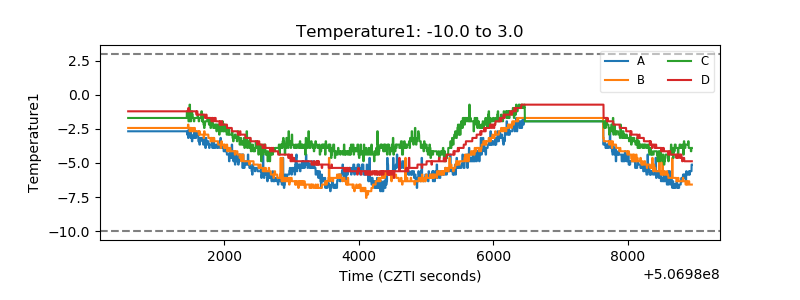

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

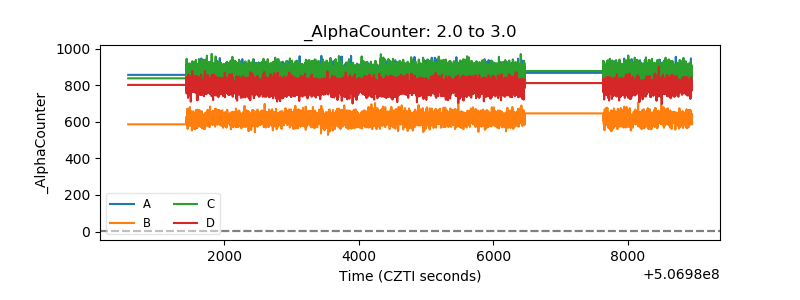

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
