| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55883cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55883cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,264,960 | 90,774,720 |
| Size | 515.2 MB | 86.6 MB |
| Events in quadrant A | 6,679,906 | 550,775 |
| Events in quadrant B | 3,043,641 | 672,347 |
| Events in quadrant C | 6,172,770 | 514,641 |
| Events in quadrant D | 3,598,885 | 557,977 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24411 | 2 |
| B | 0 | 13660 | 2 |
| C | 0 | 22956 | 2 |
| D | 0 | 15282 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6487 | 753 | 11.607831% |
| B | 6487 | 49 | 0.755357% |
| C | 6487 | 1065 | 16.417450% |
| D | 6487 | 64 | 0.986589% |

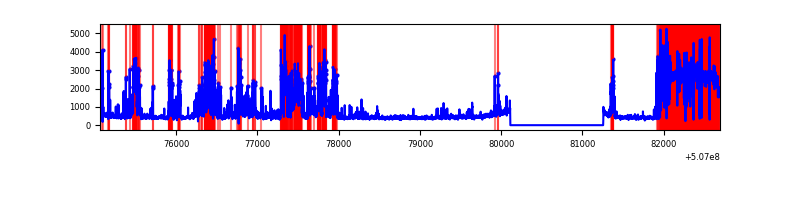

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6488 | 714 | 714 | 9.36% | 11.00% |  |
| B | 7632 | 6488 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7631 | 6487 | 1006 | 1006 | 13.18% | 15.51% |  |
| D | 7632 | 6488 | 50 | 50 | 0.66% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 3598977 | 22383.19 | 647 | 631 | 160.8 |
| A | 15 | 32 | 265713 | 1648.92 | 647 | 631 | 160.8 |
| A | 3 | 14 | 108718 | 672.35 | 647 | 631 | 160.8 |
| B | 0 | 199 | 159235 | 1092.57 | 673 | 646 | 145.2 |
| B | 0 | 197 | 76201 | 520.52 | 673 | 646 | 145.2 |
| B | 2 | 249 | 37078 | 250.99 | 673 | 646 | 145.2 |
| C | 13 | 3 | 1951335 | 11862.31 | 600 | 597 | 164.4 |
| C | 12 | 254 | 1701671 | 10344.12 | 600 | 597 | 164.4 |
| C | 6 | 223 | 68633 | 413.72 | 600 | 597 | 164.4 |
| D | 2 | 62 | 227281 | 1232.17 | 653 | 625 | 183.9 |
| D | 2 | 31 | 148235 | 802.45 | 653 | 625 | 183.9 |
| D | 8 | 160 | 111211 | 601.18 | 653 | 625 | 183.9 |

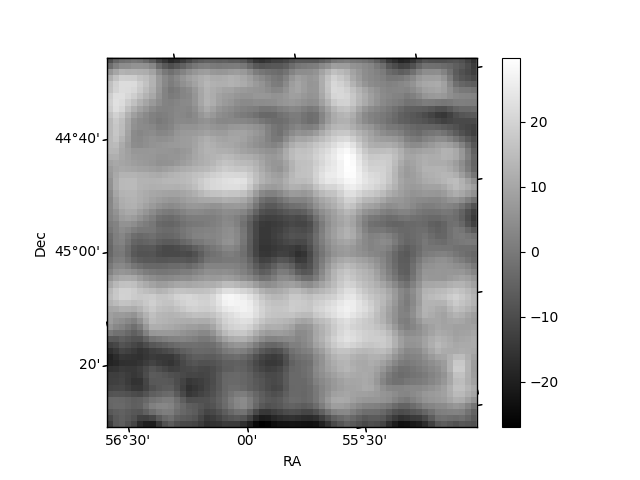

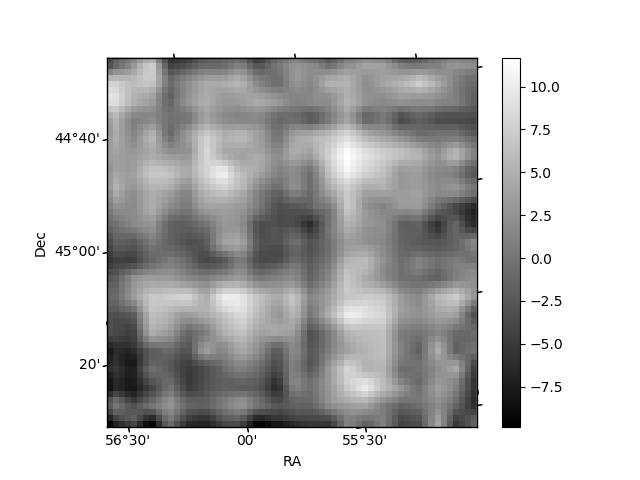

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

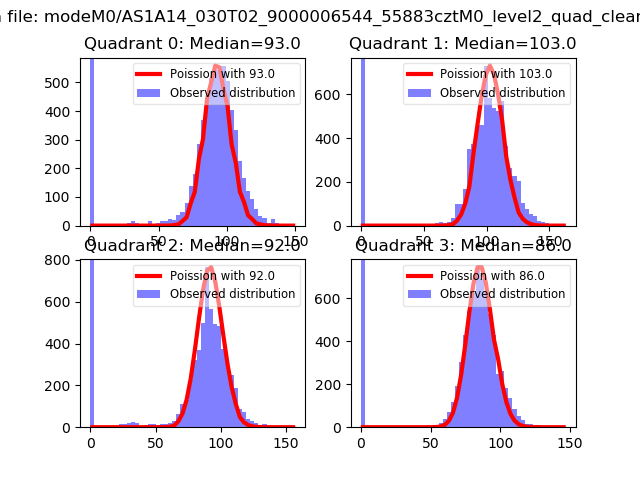

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

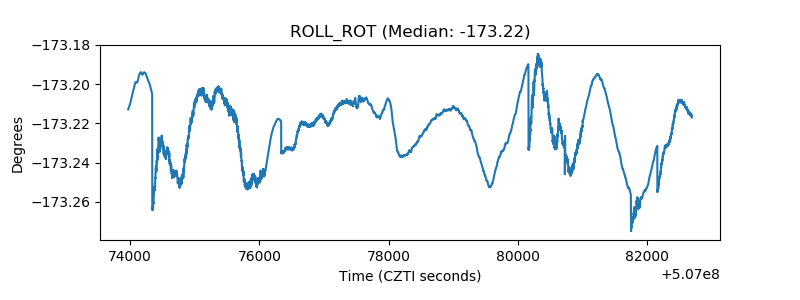

| _ROLL_ROT |  |

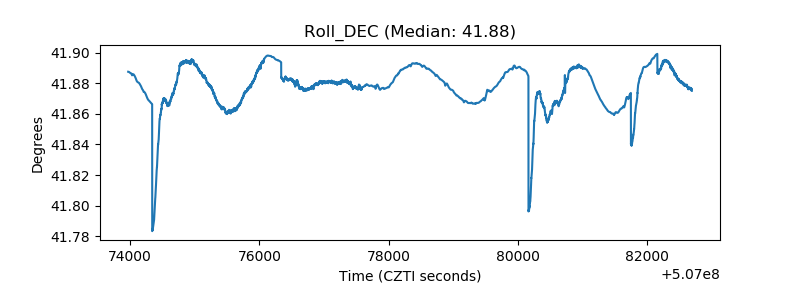

| _Roll_DEC |  |

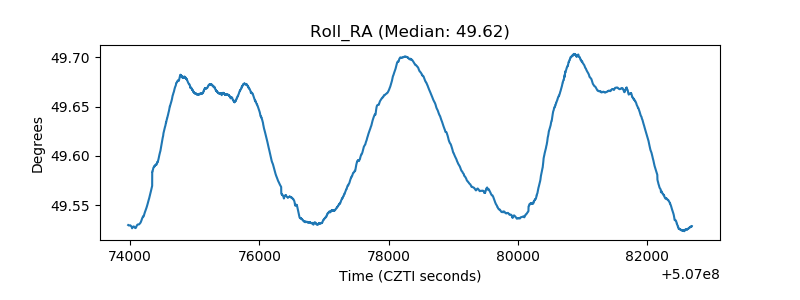

| _Roll_RA |  |

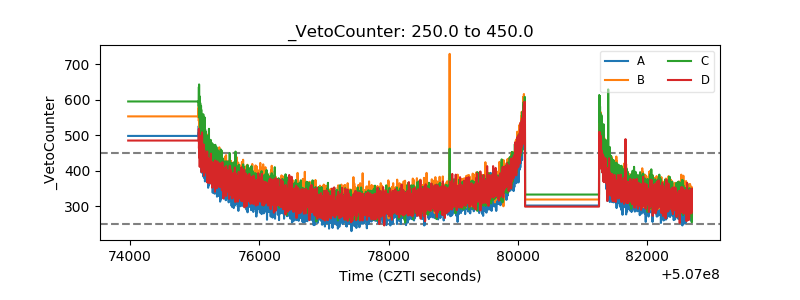

| Veto Counter |  |
