| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55884cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55884cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,424,640 | 96,125,760 |
| Size | 522.1 MB | 91.7 MB |
| Events in quadrant A | 6,435,372 | 595,077 |
| Events in quadrant B | 3,140,349 | 704,114 |
| Events in quadrant C | 5,910,539 | 544,696 |
| Events in quadrant D | 4,238,774 | 583,090 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23968 | 2 |
| B | 0 | 14463 | 2 |
| C | 0 | 22685 | 2 |
| D | 0 | 17341 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6938 | 746 | 10.752378% |
| B | 6938 | 83 | 1.196310% |
| C | 6938 | 1050 | 15.134044% |
| D | 6938 | 142 | 2.046699% |

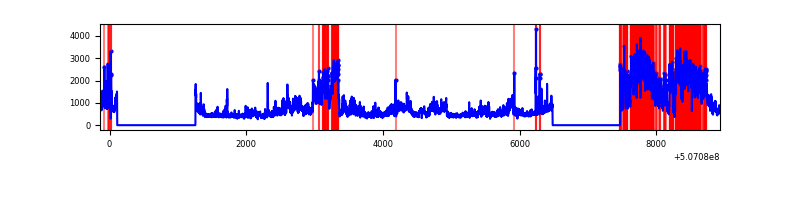

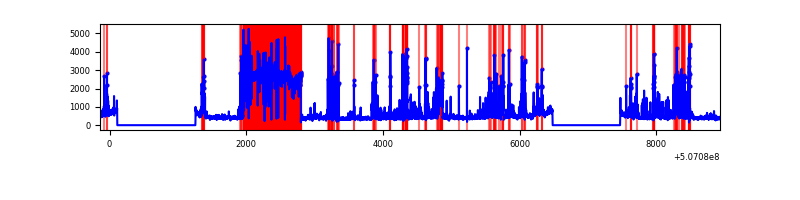

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9073 | 6940 | 765 | 765 | 8.43% | 11.02% |  |
| B | 9073 | 6940 | 4 | 4 | 0.04% | 0.06% |  |
| C | 9073 | 6940 | 915 | 915 | 10.08% | 13.18% |  |
| D | 9073 | 6940 | 116 | 116 | 1.28% | 1.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 3287750 | 18920.81 | 705 | 687 | 173.7 |
| A | 15 | 32 | 96427 | 551.09 | 705 | 687 | 173.7 |
| A | 7 | 64 | 80428 | 459.0 | 705 | 687 | 173.7 |
| B | 0 | 199 | 81356 | 520.47 | 725 | 698 | 155.0 |
| B | 0 | 197 | 75169 | 480.54 | 725 | 698 | 155.0 |
| B | 10 | 247 | 23408 | 146.54 | 725 | 698 | 155.0 |
| C | 13 | 3 | 2525061 | 14336.7 | 645 | 640 | 176.1 |
| C | 12 | 254 | 699525 | 3969.11 | 645 | 640 | 176.1 |
| C | 12 | 252 | 81316 | 458.18 | 645 | 640 | 176.1 |
| D | 2 | 62 | 584727 | 2959.99 | 701 | 669 | 197.3 |
| D | 7 | 96 | 252164 | 1274.57 | 701 | 669 | 197.3 |
| D | 2 | 31 | 119713 | 603.31 | 701 | 669 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

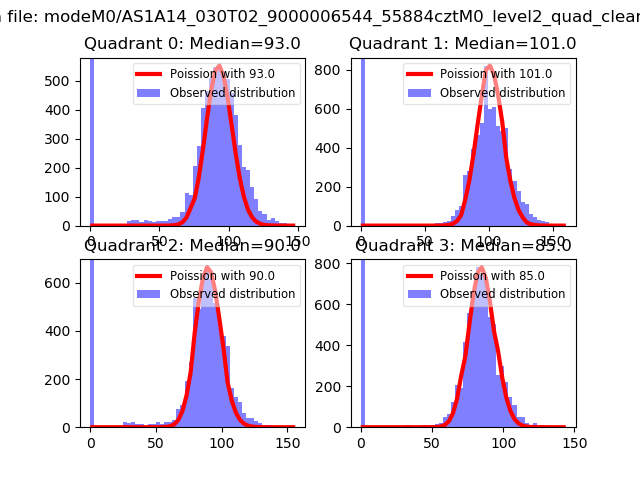

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

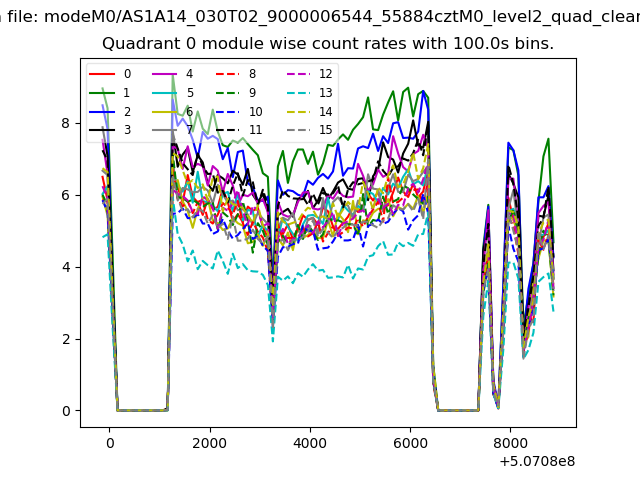

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

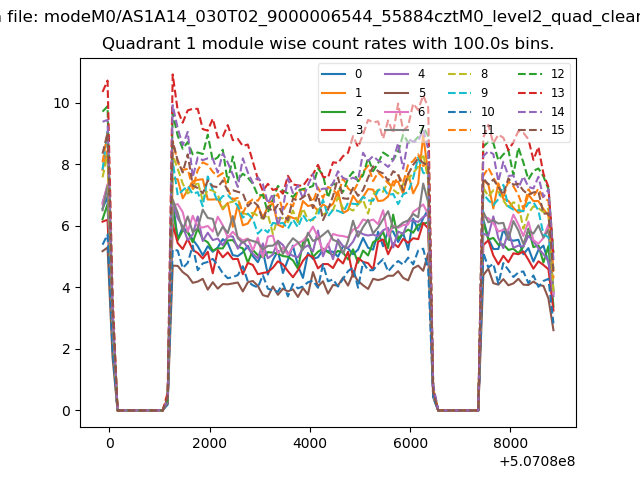

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

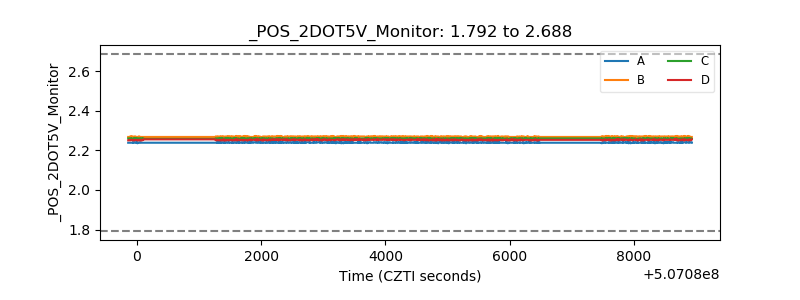

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

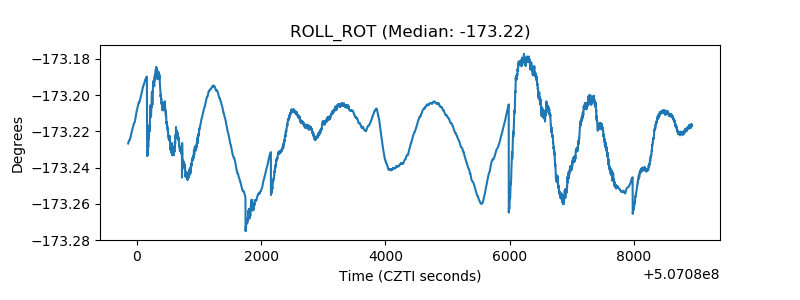

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
