| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55895cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55895cztM0_level2_quad_clean.evt |
| Size (bytes) | 369,443,520 | 93,326,400 |
| Size | 352.3 MB | 89.0 MB |
| Events in quadrant A | 3,160,675 | 612,809 |
| Events in quadrant B | 3,088,160 | 654,709 |
| Events in quadrant C | 3,032,655 | 577,131 |
| Events in quadrant D | 3,903,762 | 542,035 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13867 | 2 |
| B | 0 | 13914 | 2 |
| C | 0 | 13950 | 2 |
| D | 0 | 16100 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6296 | 46 | 0.730623% |
| B | 6296 | 88 | 1.397713% |
| C | 6296 | 121 | 1.921855% |
| D | 6296 | 178 | 2.827192% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7431 | 6297 | 28 | 28 | 0.38% | 0.44% |  |
| B | 7431 | 6297 | 53 | 53 | 0.71% | 0.84% |  |
| C | 7431 | 6297 | 62 | 62 | 0.83% | 0.98% |  |
| D | 7431 | 6297 | 167 | 167 | 2.25% | 2.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 193084 | 1181.16 | 658 | 642 | 162.9 |
| A | 0 | 8 | 159752 | 976.58 | 658 | 642 | 162.9 |
| A | 3 | 14 | 117473 | 717.08 | 658 | 642 | 162.9 |
| B | 0 | 153 | 304974 | 2184.25 | 652 | 631 | 139.3 |
| B | 0 | 199 | 111327 | 794.46 | 652 | 631 | 139.3 |
| B | 0 | 213 | 21980 | 153.22 | 652 | 631 | 139.3 |
| C | 12 | 252 | 341309 | 1930.79 | 640 | 635 | 176.4 |
| C | 15 | 199 | 110628 | 623.39 | 640 | 635 | 176.4 |
| C | 12 | 250 | 26407 | 146.06 | 640 | 635 | 176.4 |
| D | 11 | 129 | 358935 | 1986.24 | 637 | 609 | 180.4 |
| D | 3 | 12 | 353856 | 1958.09 | 637 | 609 | 180.4 |
| D | 10 | 102 | 296585 | 1640.63 | 637 | 609 | 180.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

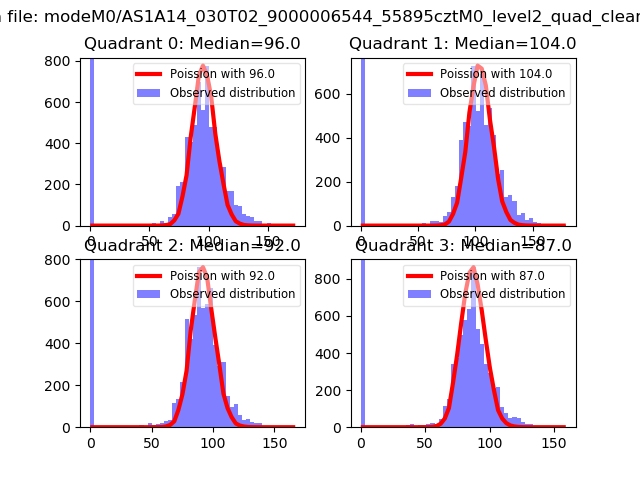

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

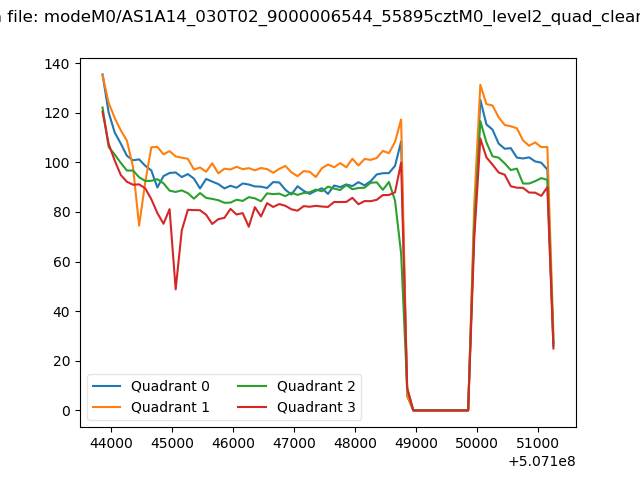

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

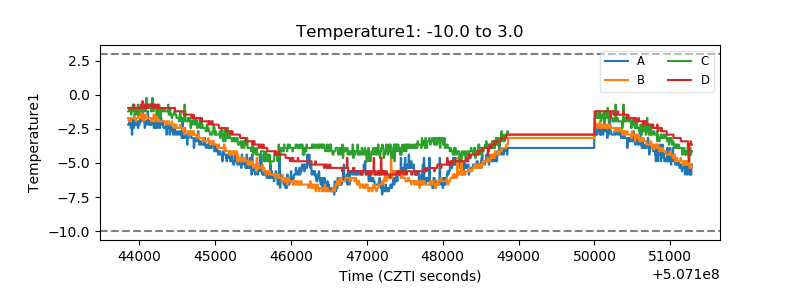

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

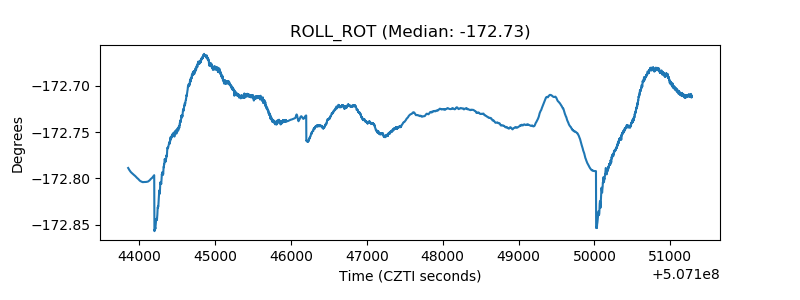

| _ROLL_ROT |  |
| _Roll_DEC |  |

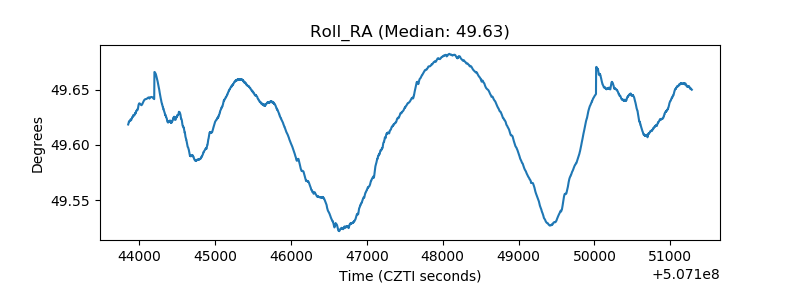

| _Roll_RA |  |

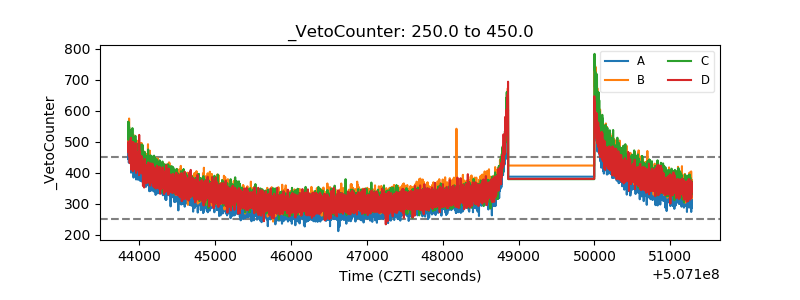

| Veto Counter |  |
