| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55909cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55909cztM0_level2_quad_clean.evt |
| Size (bytes) | 374,077,440 | 89,887,680 |
| Size | 356.7 MB | 85.7 MB |
| Events in quadrant A | 2,991,886 | 587,926 |
| Events in quadrant B | 2,688,595 | 633,347 |
| Events in quadrant C | 3,384,599 | 550,191 |
| Events in quadrant D | 4,300,682 | 519,084 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13412 | 1 |
| B | 0 | 12675 | 1 |
| C | 0 | 14771 | 1 |
| D | 0 | 17243 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 69 | 1.115783% |
| B | 6184 | 39 | 0.630660% |
| C | 6185 | 177 | 2.861762% |
| D | 6185 | 271 | 4.381568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7254 | 6185 | 23 | 23 | 0.32% | 0.37% |  |
| B | 7254 | 6185 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7255 | 6186 | 142 | 142 | 1.96% | 2.30% |  |
| D | 7255 | 6186 | 242 | 242 | 3.34% | 3.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 137496 | 849.63 | 646 | 630 | 161.1 |
| A | 12 | 115 | 122886 | 758.93 | 646 | 630 | 161.1 |
| A | 3 | 14 | 101300 | 624.93 | 646 | 630 | 161.1 |
| B | 7 | 0 | 75135 | 546.99 | 639 | 615 | 136.2 |
| B | 12 | 111 | 16521 | 116.75 | 639 | 615 | 136.2 |
| B | 11 | 111 | 15337 | 108.06 | 639 | 615 | 136.2 |
| C | 12 | 252 | 725359 | 4233.29 | 622 | 614 | 171.2 |
| C | 15 | 199 | 139566 | 811.63 | 622 | 614 | 171.2 |
| C | 13 | 3 | 33321 | 191.04 | 622 | 614 | 171.2 |
| D | 11 | 129 | 1507321 | 8553.66 | 625 | 595 | 176.1 |
| D | 3 | 12 | 133515 | 754.59 | 625 | 595 | 176.1 |
| D | 7 | 129 | 65652 | 369.33 | 625 | 595 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

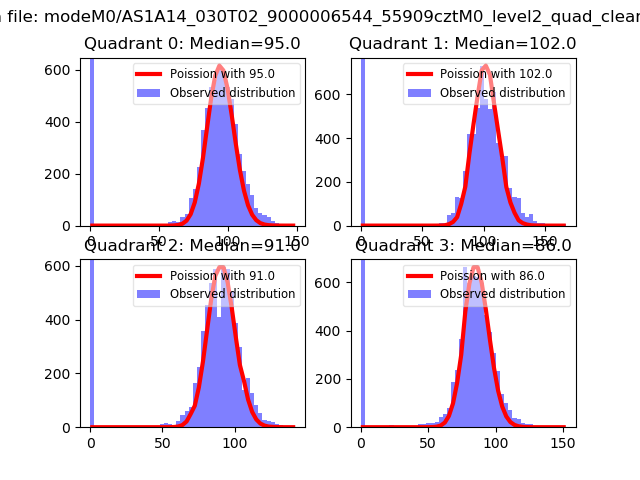

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

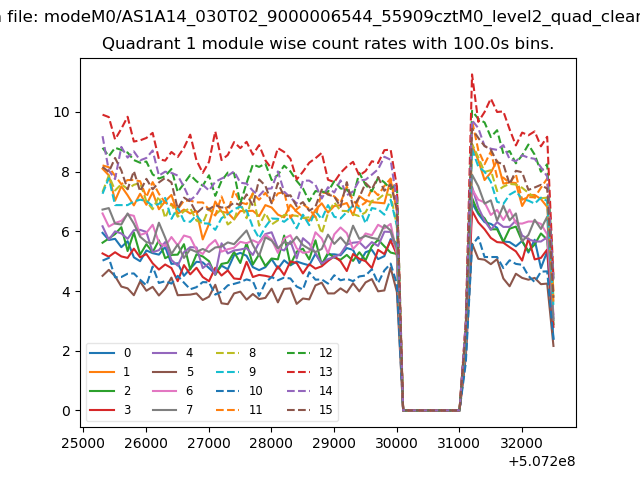

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
