| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55910cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55910cztM0_level2_quad_clean.evt |
| Size (bytes) | 375,863,040 | 94,337,280 |
| Size | 358.5 MB | 90.0 MB |
| Events in quadrant A | 3,847,181 | 615,361 |
| Events in quadrant B | 2,723,170 | 666,205 |
| Events in quadrant C | 3,538,449 | 580,701 |
| Events in quadrant D | 3,313,121 | 554,373 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15862 | 2 |
| B | 0 | 12952 | 2 |
| C | 0 | 15191 | 2 |
| D | 0 | 14465 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 95 | 1.505070% |
| B | 6312 | 41 | 0.649556% |
| C | 6312 | 176 | 2.788340% |
| D | 6312 | 110 | 1.742712% |

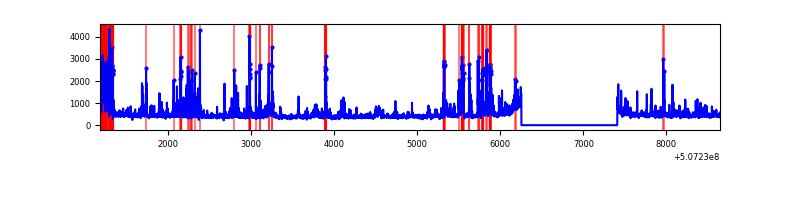

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6313 | 38 | 38 | 0.51% | 0.60% |  |
| B | 7467 | 6313 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7467 | 6313 | 139 | 139 | 1.86% | 2.20% |  |
| D | 7467 | 6313 | 91 | 91 | 1.22% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 666671 | 4045.6 | 669 | 653 | 164.6 |
| A | 15 | 32 | 244814 | 1483.11 | 669 | 653 | 164.6 |
| A | 3 | 14 | 143517 | 867.8 | 669 | 653 | 164.6 |
| B | 0 | 213 | 27306 | 187.47 | 668 | 643 | 142.2 |
| B | 5 | 185 | 19975 | 135.93 | 668 | 643 | 142.2 |
| B | 12 | 111 | 16822 | 113.76 | 668 | 643 | 142.2 |
| C | 12 | 252 | 709324 | 3981.12 | 653 | 648 | 178.0 |
| C | 15 | 199 | 112157 | 626.42 | 653 | 648 | 178.0 |
| C | 13 | 3 | 76570 | 426.51 | 653 | 648 | 178.0 |
| D | 3 | 12 | 361574 | 1969.58 | 653 | 623 | 183.3 |
| D | 11 | 129 | 166472 | 904.97 | 653 | 623 | 183.3 |
| D | 6 | 239 | 69778 | 377.35 | 653 | 623 | 183.3 |

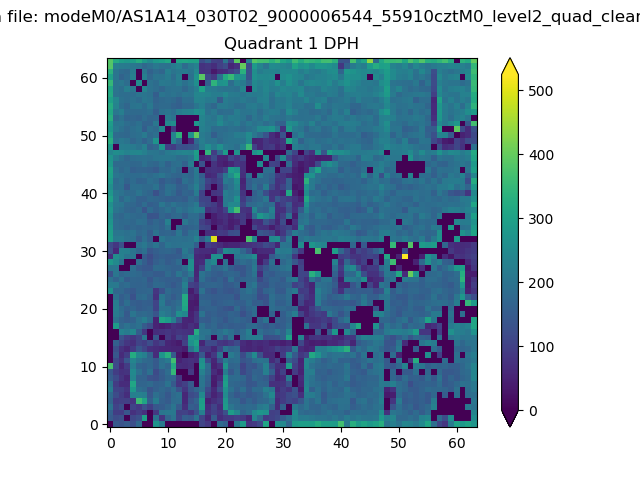

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

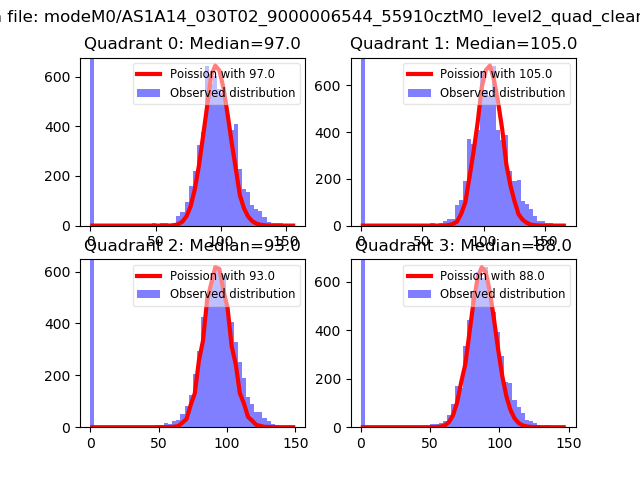

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

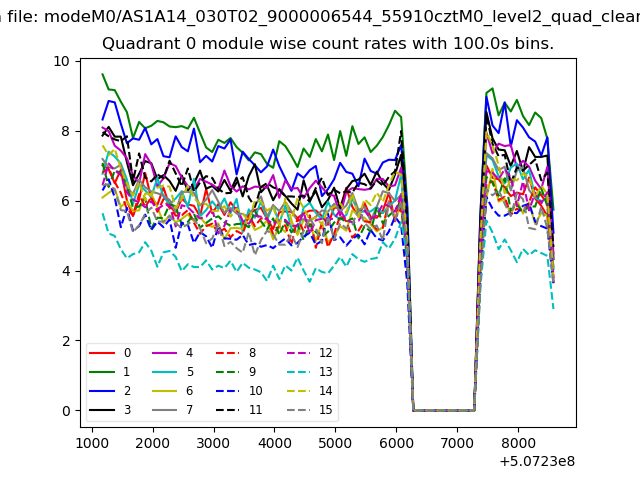

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

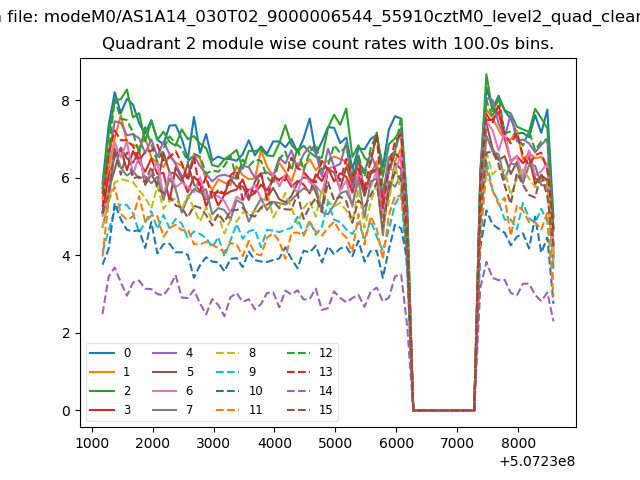

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

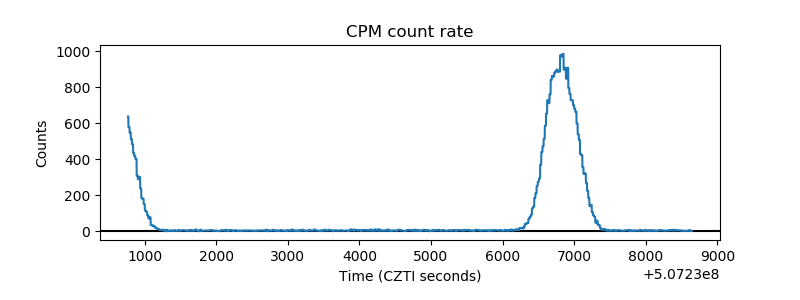

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

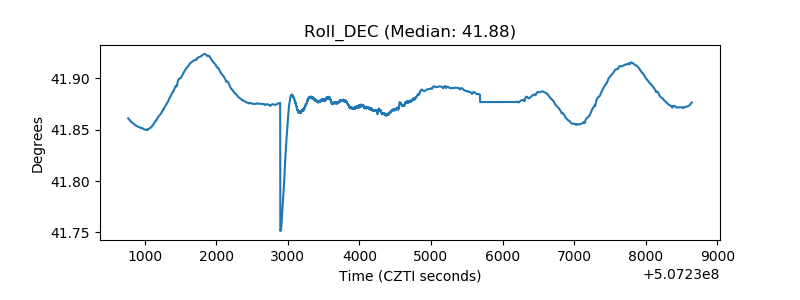

| _Roll_DEC |  |
| _Roll_RA |  |

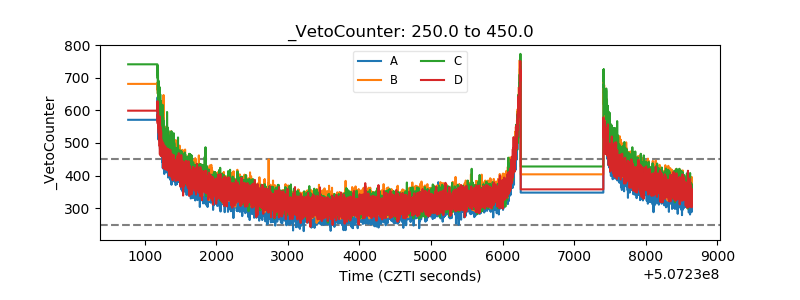

| Veto Counter |  |
