| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55934cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55934cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,307,805,120 | 265,288,320 |
| Size | 1.2 GB | 253.0 MB |
| Events in quadrant A | 9,524,318 | 1,759,932 |
| Events in quadrant B | 8,404,658 | 1,921,491 |
| Events in quadrant C | 9,714,210 | 1,688,688 |
| Events in quadrant D | 19,243,467 | 1,307,215 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 396 | 0 |
| B | 0 | 396 | 0 |
| C | 0 | 396 | 0 |
| D | 0 | 396 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43153 | 2 |
| B | 0 | 40544 | 2 |
| C | 0 | 44276 | 2 |
| D | 0 | 70959 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19667 | 484 | 2.460975% |
| B | 19668 | 388 | 1.972748% |
| C | 19668 | 508 | 2.582876% |
| D | 19667 | 3156 | 16.047186% |

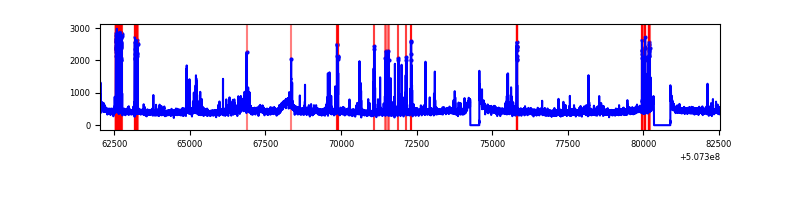

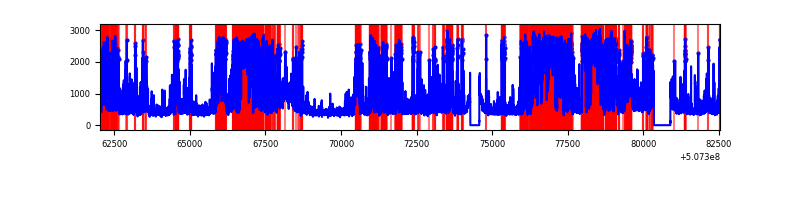

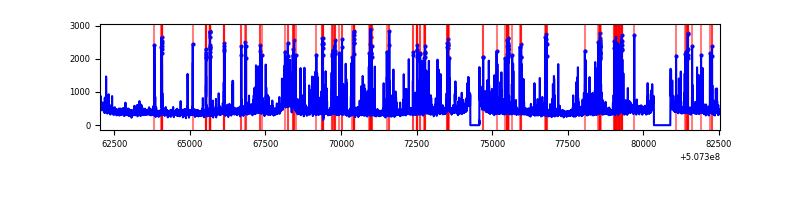

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20511 | 19668 | 203 | 203 | 0.99% | 1.03% |  |
| B | 20512 | 19669 | 9 | 9 | 0.04% | 0.05% |  |
| C | 20512 | 19669 | 224 | 224 | 1.09% | 1.14% |  |
| D | 20511 | 19668 | 3095 | 3095 | 15.09% | 15.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 617558 | 1217.28 | 2067 | 2010 | 505.7 |
| A | 0 | 8 | 517522 | 1019.46 | 2067 | 2010 | 505.7 |
| A | 7 | 64 | 187236 | 366.3 | 2067 | 2010 | 505.7 |
| B | 7 | 252 | 75098 | 167.08 | 2045 | 1967 | 437.7 |
| B | 12 | 111 | 55088 | 121.37 | 2045 | 1967 | 437.7 |
| B | 11 | 111 | 51773 | 113.79 | 2045 | 1967 | 437.7 |
| C | 12 | 252 | 987963 | 1799.18 | 2002 | 1981 | 548.0 |
| C | 15 | 199 | 684422 | 1245.29 | 2002 | 1981 | 548.0 |
| C | 13 | 3 | 144319 | 259.73 | 2002 | 1981 | 548.0 |
| D | 11 | 129 | 9245936 | 17487.32 | 1877 | 1796 | 528.6 |
| D | 6 | 42 | 874856 | 1651.58 | 1877 | 1796 | 528.6 |
| D | 6 | 31 | 725350 | 1368.76 | 1877 | 1796 | 528.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

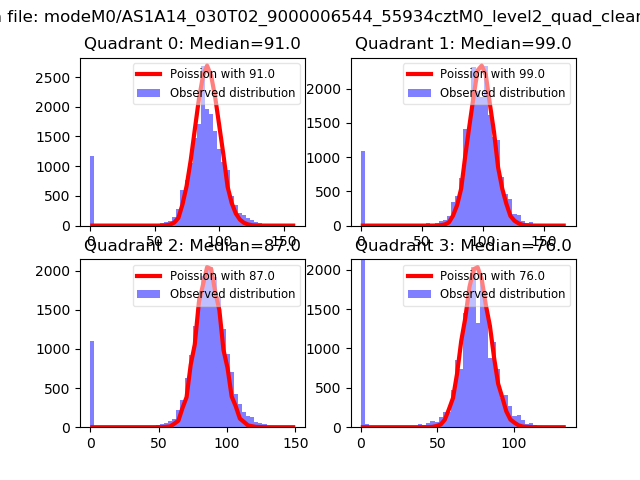

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

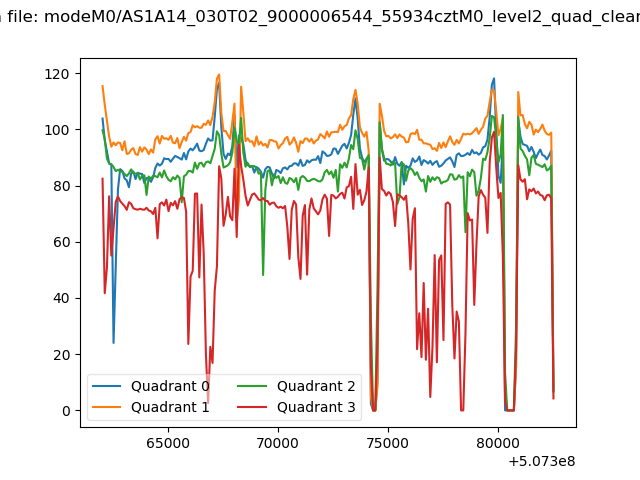

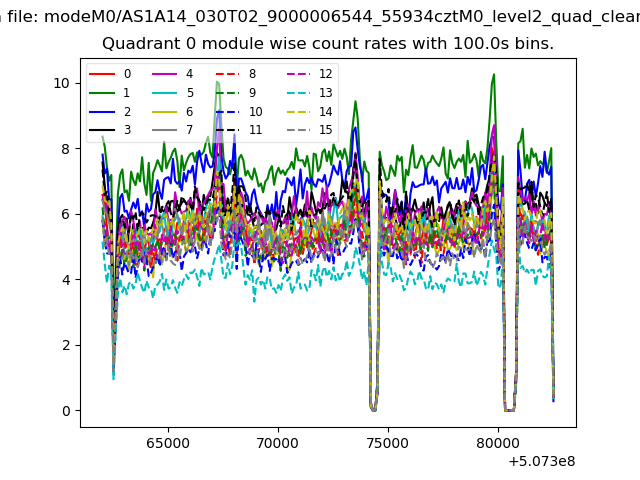

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

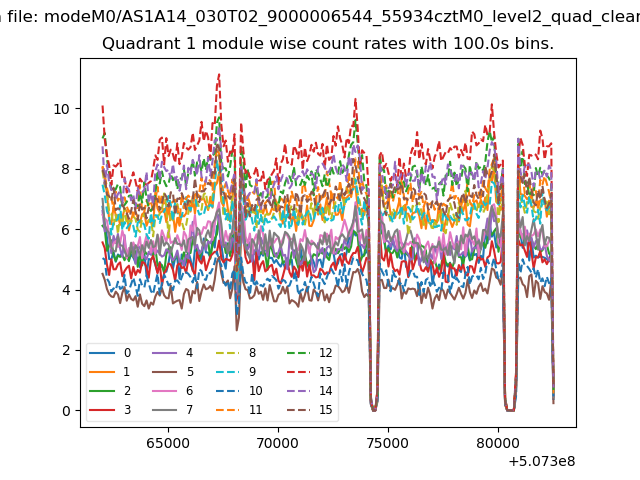

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

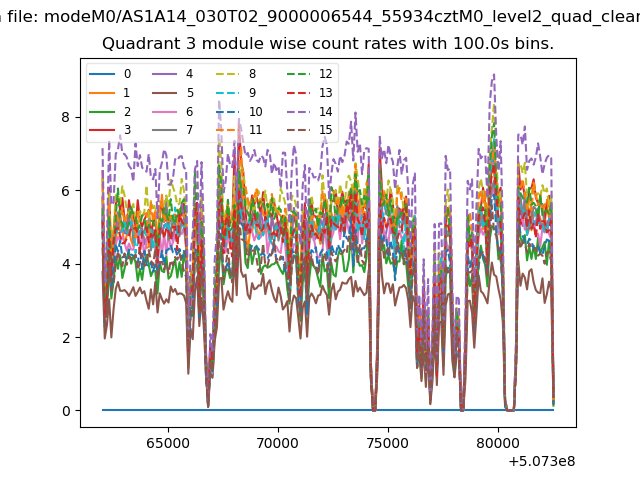

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

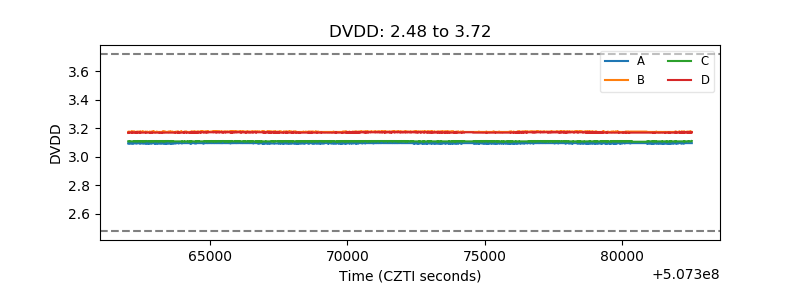

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

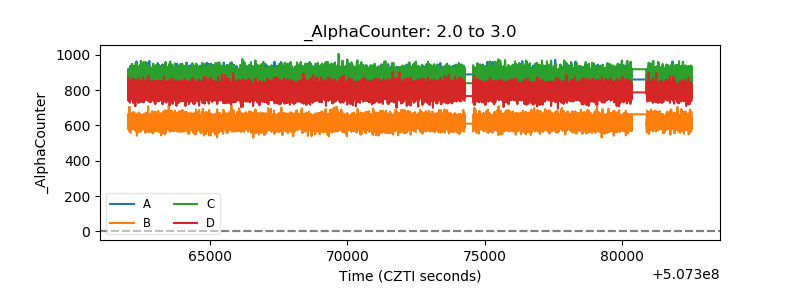

| Alpha Counter |  |
| _CPM_Rate |  |

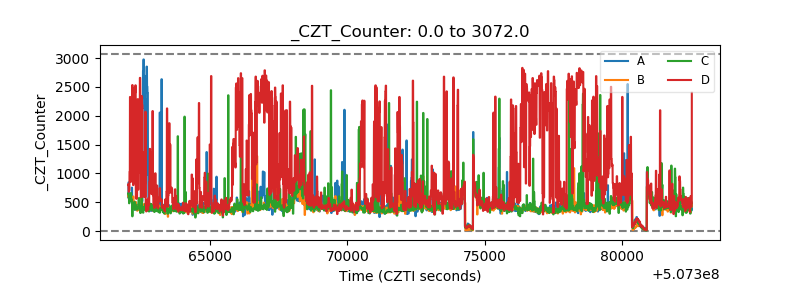

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

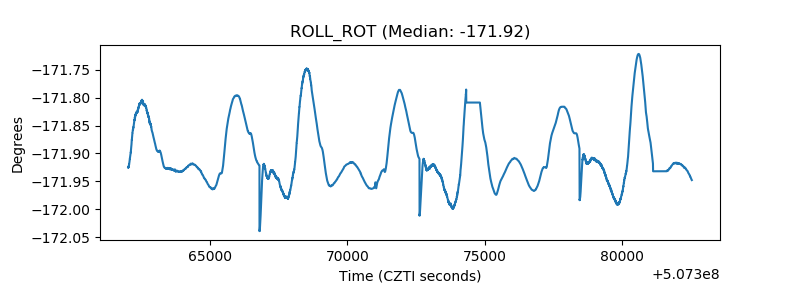

| _ROLL_ROT |  |

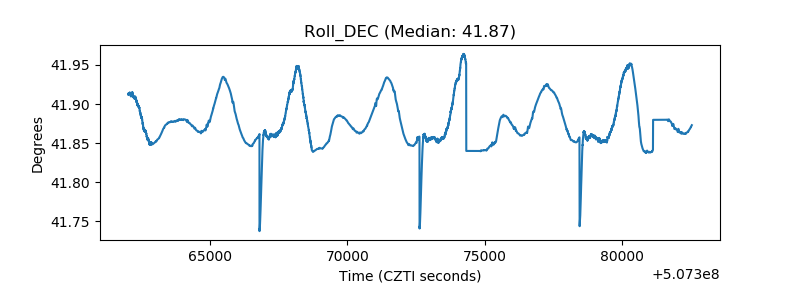

| _Roll_DEC |  |

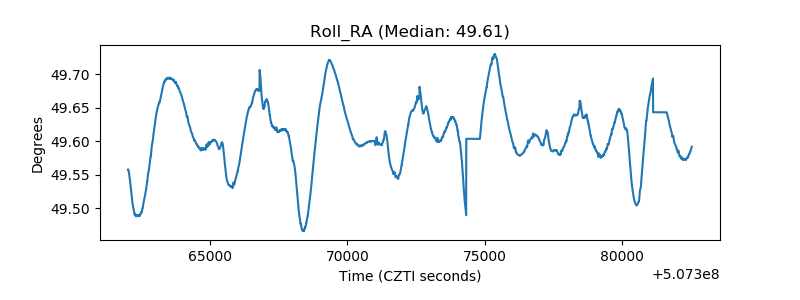

| _Roll_RA |  |
| Veto Counter |  |
