| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_030T02_9000006544_55935cztM0_level2.fits | modeM0/AS1A14_030T02_9000006544_55935cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,968,000 | 90,452,160 |
| Size | 399.6 MB | 86.3 MB |
| Events in quadrant A | 3,020,137 | 602,669 |
| Events in quadrant B | 3,155,900 | 637,424 |
| Events in quadrant C | 3,295,895 | 561,951 |
| Events in quadrant D | 5,541,112 | 492,647 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13720 | 1 |
| B | 0 | 14228 | 4 |
| C | 0 | 14692 | 1 |
| D | 0 | 20807 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 70 | 1.099074% |
| B | 6369 | 148 | 2.323756% |
| C | 6369 | 151 | 2.370859% |
| D | 6369 | 740 | 11.618778% |

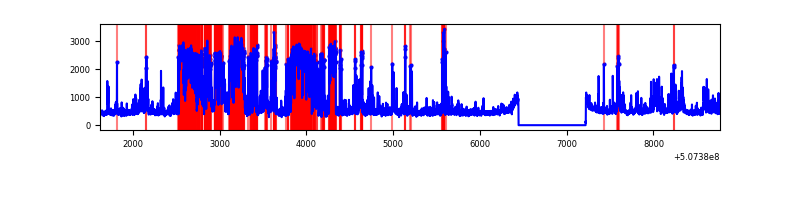

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7144 | 6370 | 20 | 20 | 0.28% | 0.31% |  |
| B | 7144 | 6370 | 79 | 79 | 1.11% | 1.24% |  |
| C | 7144 | 6370 | 113 | 113 | 1.58% | 1.77% |  |
| D | 7144 | 6370 | 761 | 761 | 10.65% | 11.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 157659 | 946.1 | 668 | 649 | 166.0 |
| A | 12 | 115 | 132134 | 792.29 | 668 | 649 | 166.0 |
| A | 0 | 8 | 83809 | 501.1 | 668 | 649 | 166.0 |
| B | 5 | 185 | 453602 | 3224.83 | 650 | 625 | 140.5 |
| B | 7 | 252 | 28882 | 201.17 | 650 | 625 | 140.5 |
| B | 10 | 247 | 23910 | 165.77 | 650 | 625 | 140.5 |
| C | 15 | 199 | 431734 | 2450.99 | 636 | 630 | 175.9 |
| C | 12 | 252 | 205452 | 1164.49 | 636 | 630 | 175.9 |
| C | 14 | 80 | 89900 | 507.53 | 636 | 630 | 175.9 |
| D | 11 | 129 | 2578481 | 14771.99 | 616 | 588 | 174.5 |
| D | 7 | 129 | 105832 | 603.08 | 616 | 588 | 174.5 |
| D | 12 | 16 | 95867 | 545.97 | 616 | 588 | 174.5 |

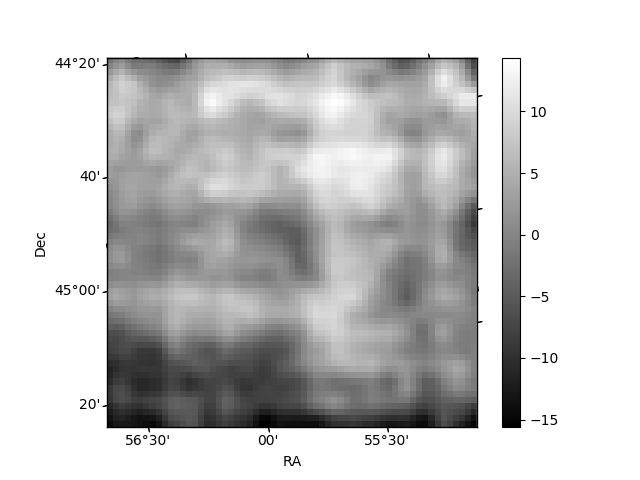

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

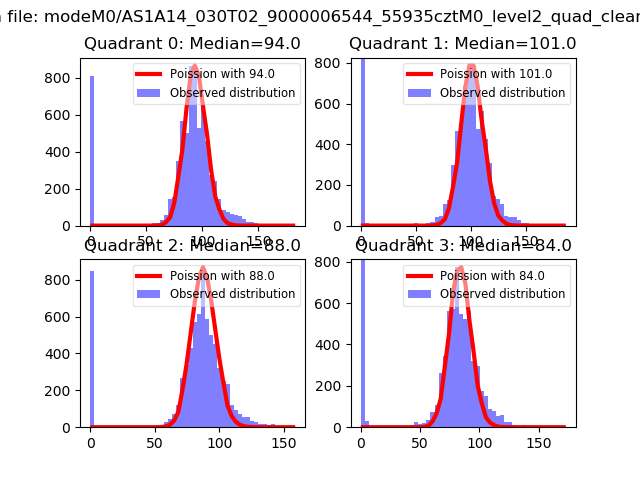

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

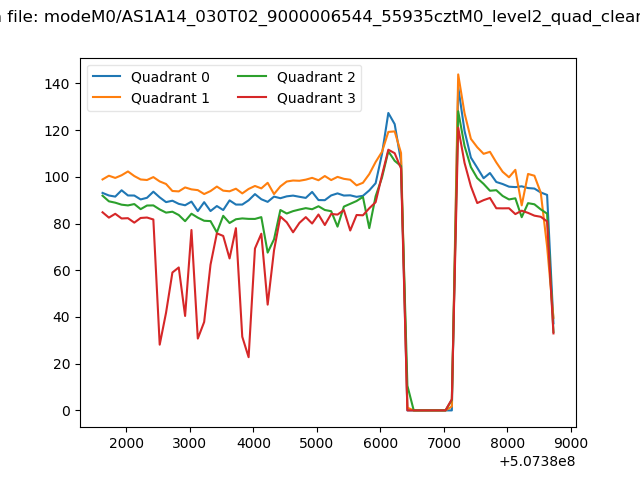

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

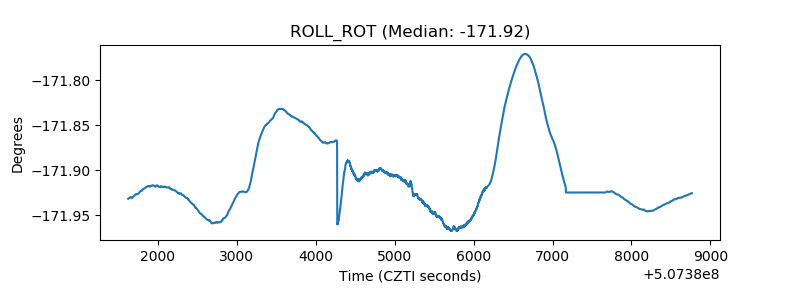

| _ROLL_ROT |  |

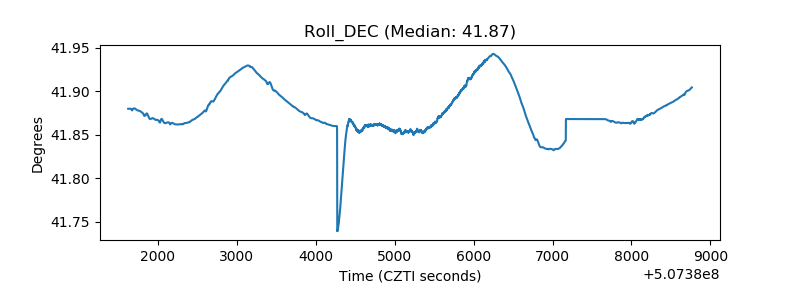

| _Roll_DEC |  |
| _Roll_RA |  |

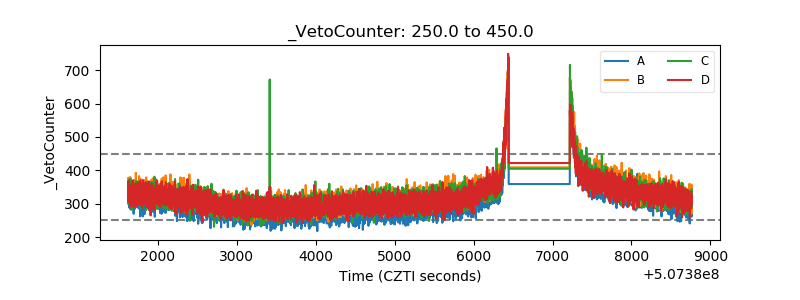

| Veto Counter |  |
