| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55941cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55941cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,056,640 | 92,796,480 |
| Size | 409.2 MB | 88.5 MB |
| Events in quadrant A | 5,153,075 | 585,657 |
| Events in quadrant B | 3,024,380 | 662,777 |
| Events in quadrant C | 3,807,623 | 557,872 |
| Events in quadrant D | 3,397,461 | 555,431 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19814 | 2 |
| B | 0 | 13821 | 2 |
| C | 0 | 16215 | 2 |
| D | 0 | 14848 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6424 | 470 | 7.316314% |
| B | 6424 | 83 | 1.292030% |
| C | 6424 | 398 | 6.195517% |
| D | 6424 | 93 | 1.447696% |

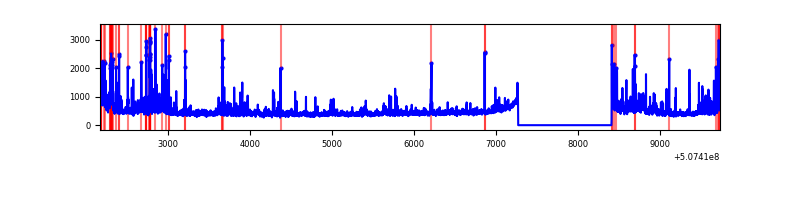

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6425 | 565 | 565 | 7.47% | 8.79% |  |
| B | 7564 | 6425 | 32 | 32 | 0.42% | 0.50% |  |
| C | 7564 | 6425 | 341 | 341 | 4.51% | 5.31% |  |
| D | 7564 | 6425 | 66 | 66 | 0.87% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 2249035 | 13387.34 | 675 | 656 | 167.9 |
| A | 7 | 12 | 137160 | 812.77 | 675 | 656 | 167.9 |
| A | 3 | 14 | 40143 | 235.11 | 675 | 656 | 167.9 |
| B | 7 | 252 | 170029 | 1170.18 | 679 | 656 | 144.7 |
| B | 10 | 247 | 31766 | 214.93 | 679 | 656 | 144.7 |
| B | 0 | 171 | 28976 | 195.66 | 679 | 656 | 144.7 |
| C | 13 | 3 | 904727 | 5037.21 | 653 | 647 | 179.5 |
| C | 14 | 80 | 206967 | 1149.54 | 653 | 647 | 179.5 |
| C | 12 | 252 | 68542 | 378.29 | 653 | 647 | 179.5 |
| D | 11 | 129 | 328832 | 1727.59 | 665 | 637 | 190.0 |
| D | 15 | 125 | 116437 | 609.56 | 665 | 637 | 190.0 |
| D | 6 | 42 | 63435 | 330.56 | 665 | 637 | 190.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

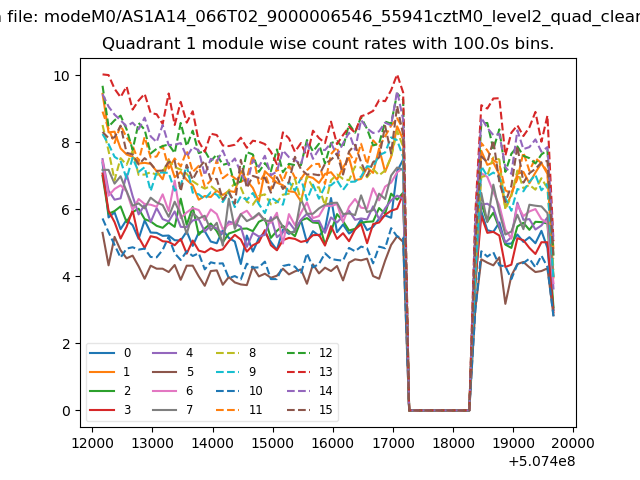

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

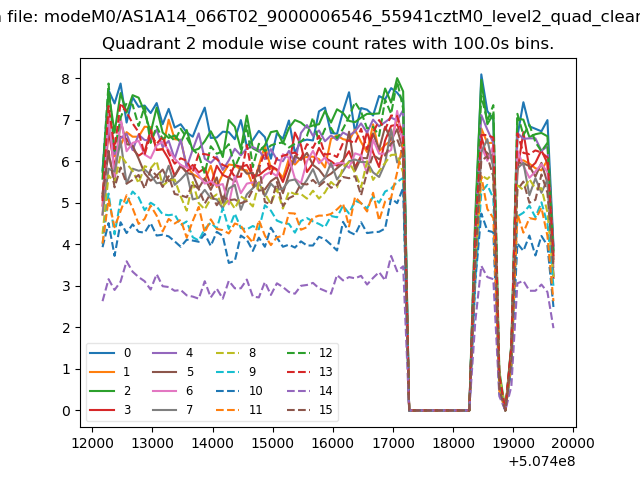

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

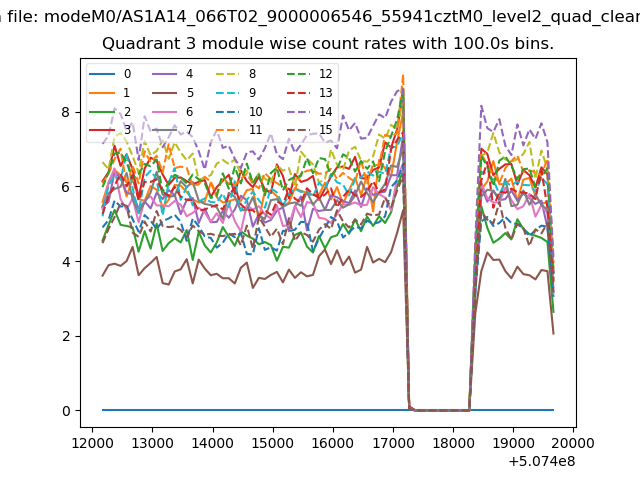

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

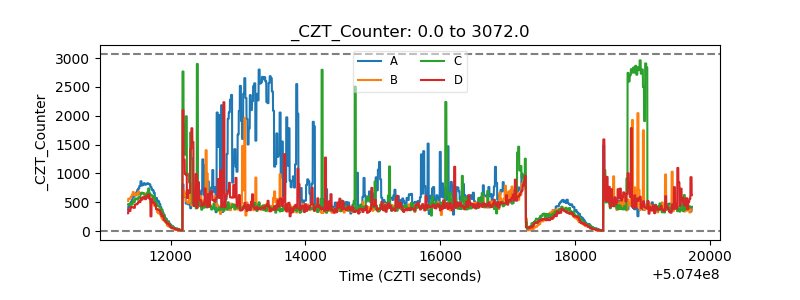

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

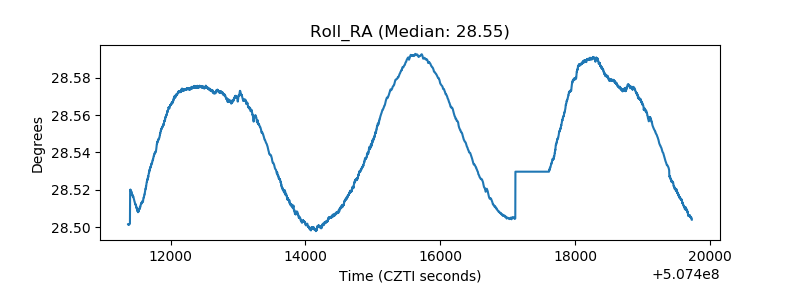

| _Roll_RA |  |

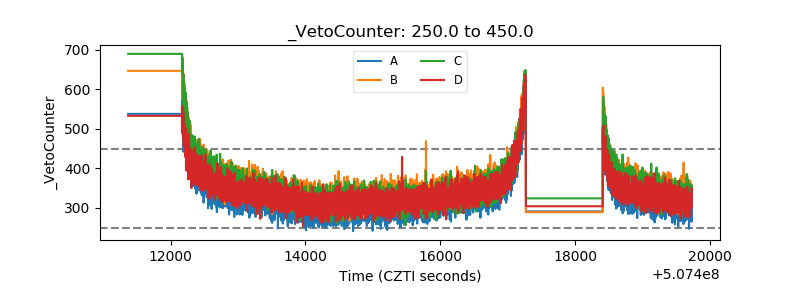

| Veto Counter |  |
