| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55956cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55956cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,525,760 | 90,008,640 |
| Size | 517.4 MB | 85.8 MB |
| Events in quadrant A | 5,481,642 | 590,177 |
| Events in quadrant B | 3,879,803 | 645,997 |
| Events in quadrant C | 4,077,315 | 550,065 |
| Events in quadrant D | 6,140,149 | 486,281 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20746 | 2 |
| B | 0 | 16179 | 2 |
| C | 0 | 17052 | 2 |
| D | 0 | 22844 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6490 | 387 | 5.963020% |
| B | 6491 | 215 | 3.312279% |
| C | 6491 | 433 | 6.670775% |
| D | 6491 | 902 | 13.896164% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7590 | 6491 | 419 | 419 | 5.52% | 6.46% |  |
| B | 7591 | 6492 | 155 | 155 | 2.04% | 2.39% |  |
| C | 7591 | 6492 | 353 | 353 | 4.65% | 5.44% |  |
| D | 7591 | 6492 | 824 | 824 | 10.85% | 12.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 2463463 | 14849.81 | 670 | 652 | 165.8 |
| A | 0 | 8 | 149868 | 899.72 | 670 | 652 | 165.8 |
| A | 3 | 14 | 132243 | 793.44 | 670 | 652 | 165.8 |
| B | 9 | 251 | 467062 | 3278.22 | 670 | 649 | 142.3 |
| B | 0 | 171 | 229716 | 1610.02 | 670 | 649 | 142.3 |
| B | 0 | 231 | 172340 | 1206.74 | 670 | 649 | 142.3 |
| C | 13 | 3 | 1104856 | 6126.76 | 650 | 643 | 180.2 |
| C | 12 | 249 | 170004 | 939.7 | 650 | 643 | 180.2 |
| C | 15 | 230 | 155403 | 858.69 | 650 | 643 | 180.2 |
| D | 11 | 129 | 2294984 | 12937.26 | 620 | 592 | 177.3 |
| D | 2 | 62 | 878322 | 4949.21 | 620 | 592 | 177.3 |
| D | 3 | 12 | 246665 | 1387.52 | 620 | 592 | 177.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

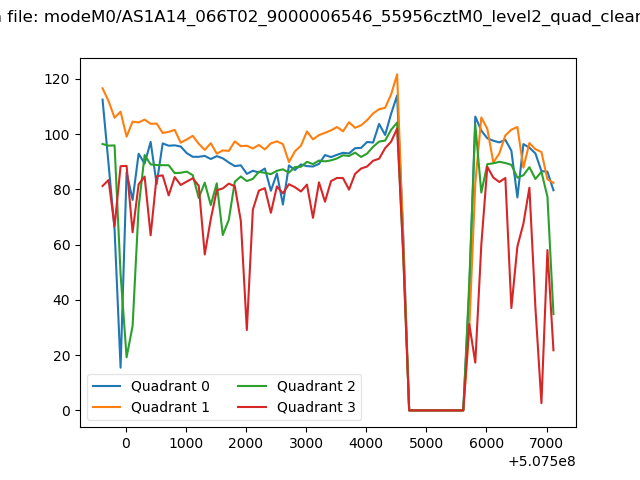

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

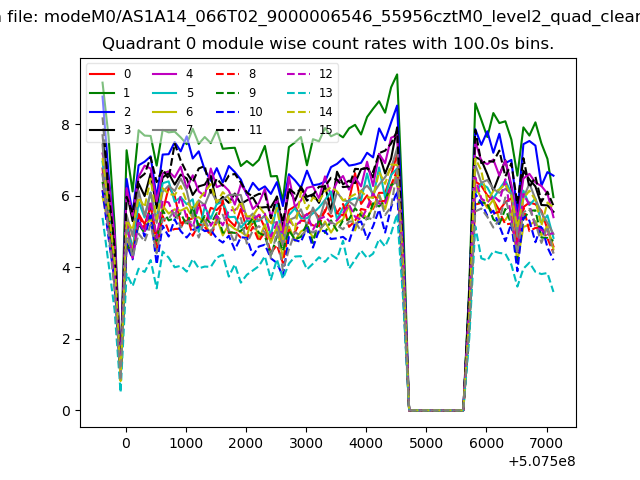

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

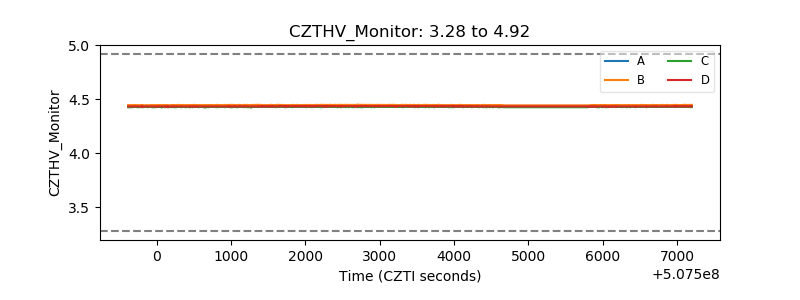

| CZT HV Monitor |  |
| D_VDD |  |

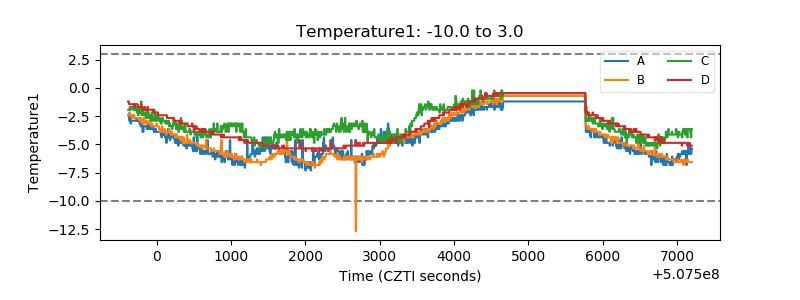

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

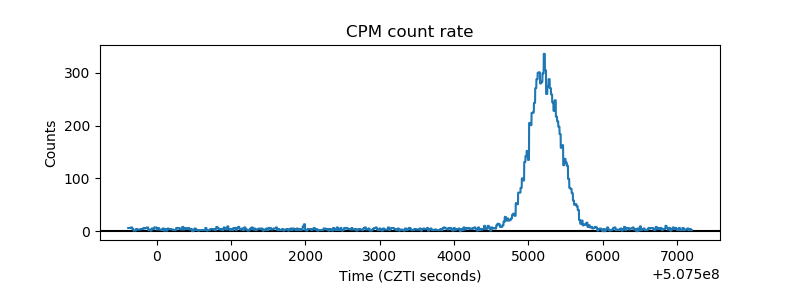

| _CPM_Rate |  |

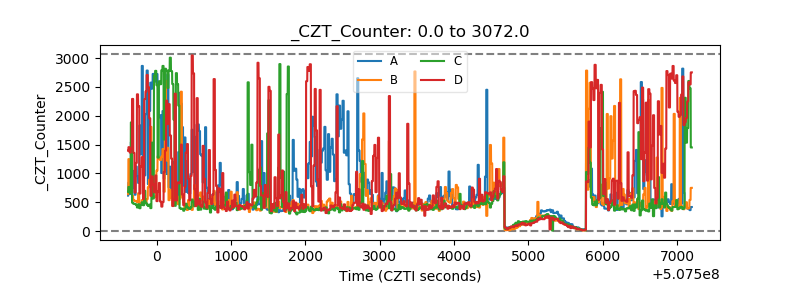

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
