| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55973cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55973cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,592,000 | 111,810,240 |
| Size | 637.6 MB | 106.6 MB |
| Events in quadrant A | 11,381,275 | 576,501 |
| Events in quadrant B | 4,253,061 | 799,708 |
| Events in quadrant C | 4,517,528 | 731,122 |
| Events in quadrant D | 3,957,329 | 704,563 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39576 | 1 |
| B | 0 | 18416 | 1 |
| C | 0 | 19597 | 1 |
| D | 0 | 18039 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8249 | 2169 | 26.294096% |
| B | 8249 | 326 | 3.951994% |
| C | 8250 | 170 | 2.060606% |
| D | 8250 | 34 | 0.412121% |

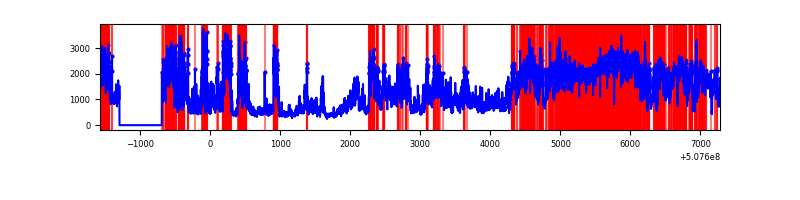

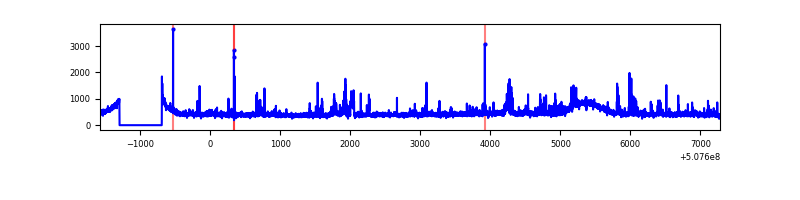

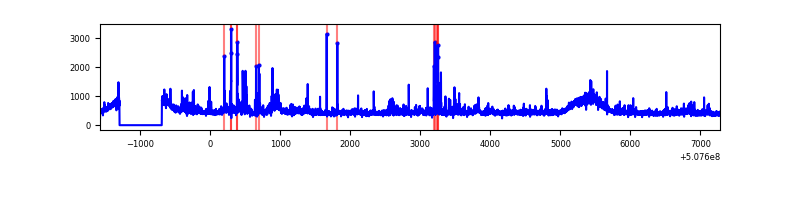

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8854 | 8250 | 2013 | 2013 | 22.74% | 24.40% |  |
| B | 8854 | 8250 | 14 | 14 | 0.16% | 0.17% |  |
| C | 8855 | 8251 | 97 | 97 | 1.10% | 1.18% |  |
| D | 8855 | 8251 | 4 | 4 | 0.05% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 7551248 | 36949.39 | 825 | 804 | 204.3 |
| A | 15 | 32 | 234790 | 1145.05 | 825 | 804 | 204.3 |
| A | 7 | 64 | 130997 | 637.12 | 825 | 804 | 204.3 |
| B | 2 | 249 | 134321 | 665.5 | 916 | 882 | 200.5 |
| B | 0 | 199 | 130525 | 646.56 | 916 | 882 | 200.5 |
| B | 0 | 229 | 102454 | 506.57 | 916 | 882 | 200.5 |
| C | 9 | 38 | 377961 | 1524.53 | 901 | 892 | 247.3 |
| C | 13 | 3 | 209921 | 845.12 | 901 | 892 | 247.3 |
| C | 12 | 249 | 119519 | 479.62 | 901 | 892 | 247.3 |
| D | 11 | 129 | 128460 | 506.5 | 902 | 862 | 251.9 |
| D | 5 | 173 | 55574 | 217.18 | 902 | 862 | 251.9 |
| D | 6 | 42 | 53859 | 210.37 | 902 | 862 | 251.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

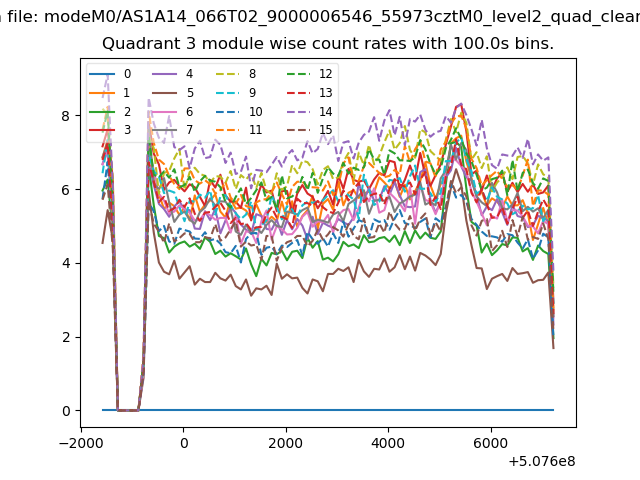

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

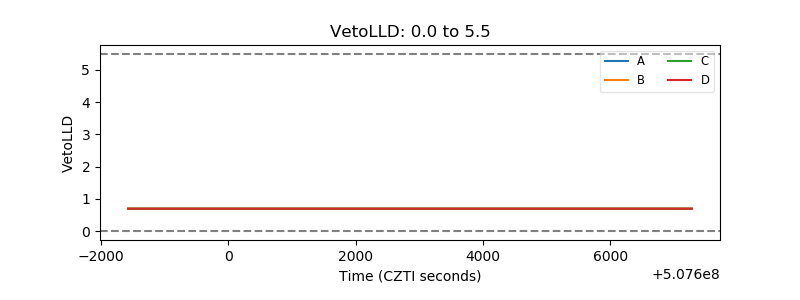

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

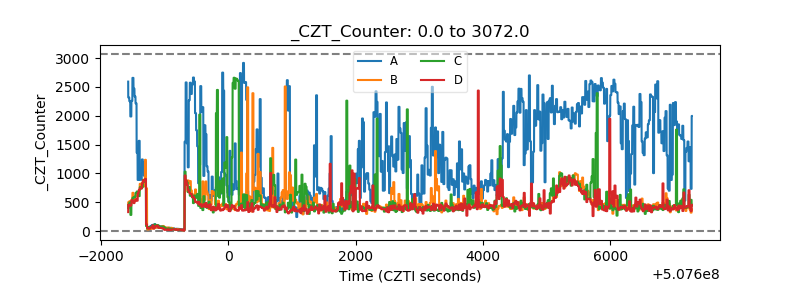

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
