| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55985cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55985cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,943,680 | 92,257,920 |
| Size | 504.4 MB | 88.0 MB |
| Events in quadrant A | 7,781,533 | 532,139 |
| Events in quadrant B | 4,209,181 | 651,181 |
| Events in quadrant C | 3,332,595 | 595,680 |
| Events in quadrant D | 3,750,330 | 559,566 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27668 | 2 |
| B | 0 | 17197 | 2 |
| C | 0 | 14901 | 2 |
| D | 0 | 15798 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6523 | 1146 | 17.568603% |
| B | 6523 | 282 | 4.323164% |
| C | 6523 | 35 | 0.536563% |
| D | 6523 | 94 | 1.441055% |

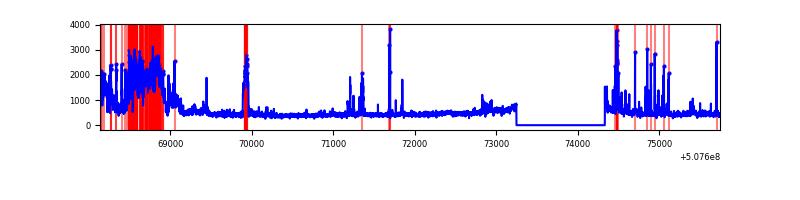

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 6524 | 1193 | 1193 | 15.68% | 18.29% |  |
| B | 7608 | 6524 | 250 | 250 | 3.29% | 3.83% |  |
| C | 7608 | 6524 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7608 | 6524 | 88 | 88 | 1.16% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 4622285 | 28202.5 | 655 | 637 | 163.9 |
| A | 7 | 64 | 284300 | 1730.99 | 655 | 637 | 163.9 |
| A | 3 | 14 | 93621 | 567.41 | 655 | 637 | 163.9 |
| B | 5 | 172 | 973177 | 6539.03 | 687 | 661 | 148.7 |
| B | 2 | 249 | 106511 | 711.72 | 687 | 661 | 148.7 |
| B | 5 | 32 | 94888 | 633.57 | 687 | 661 | 148.7 |
| C | 9 | 38 | 438828 | 2341.13 | 679 | 672 | 187.2 |
| C | 14 | 246 | 59441 | 314.01 | 679 | 672 | 187.2 |
| C | 11 | 244 | 33122 | 173.39 | 679 | 672 | 187.2 |
| D | 11 | 129 | 644385 | 3332.62 | 671 | 641 | 193.2 |
| D | 2 | 249 | 157187 | 810.43 | 671 | 641 | 193.2 |
| D | 6 | 239 | 74905 | 384.46 | 671 | 641 | 193.2 |

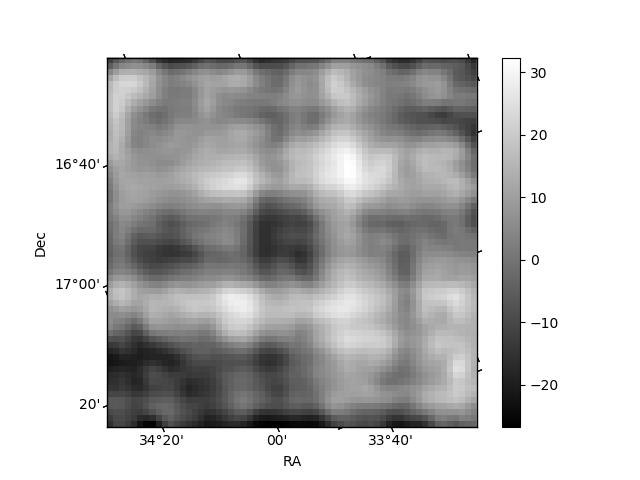

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

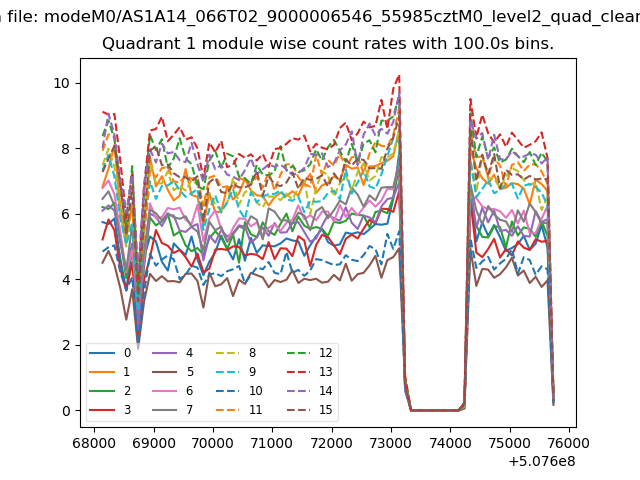

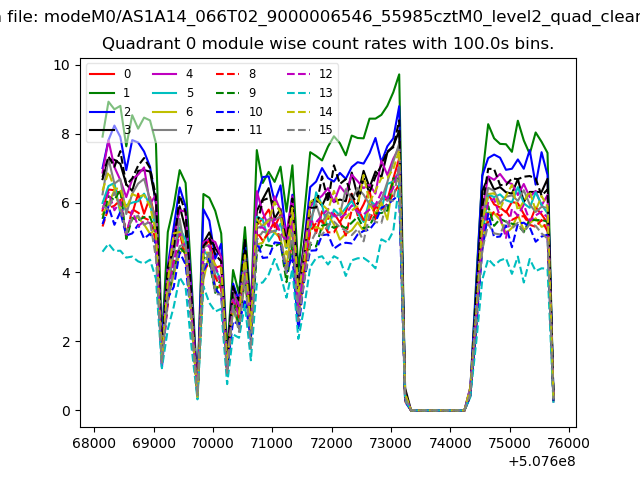

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

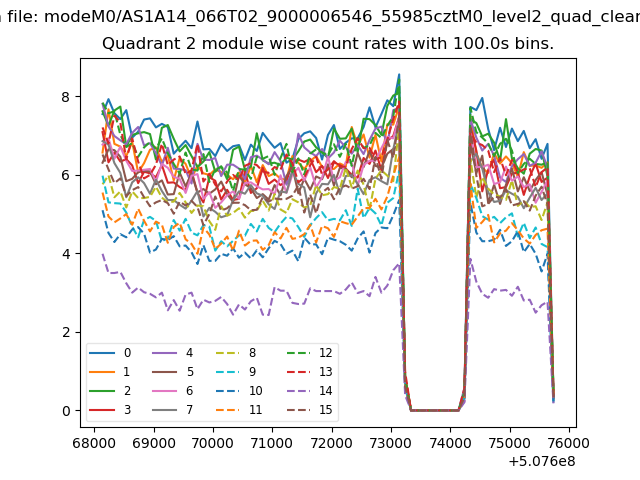

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

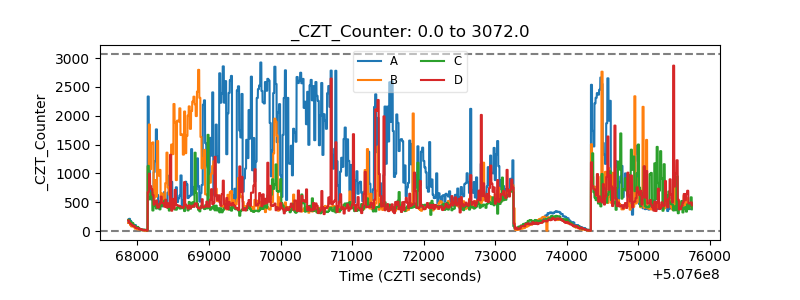

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

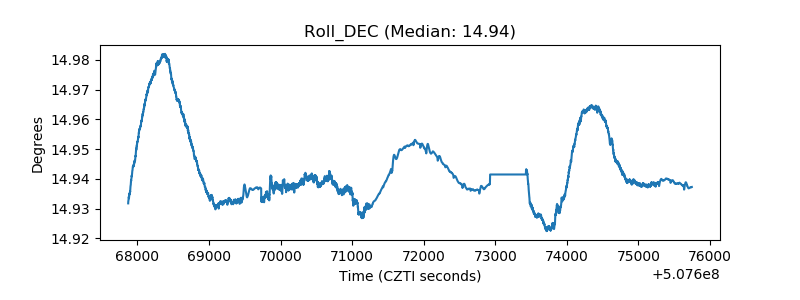

| _Roll_DEC |  |
| _Roll_RA |  |

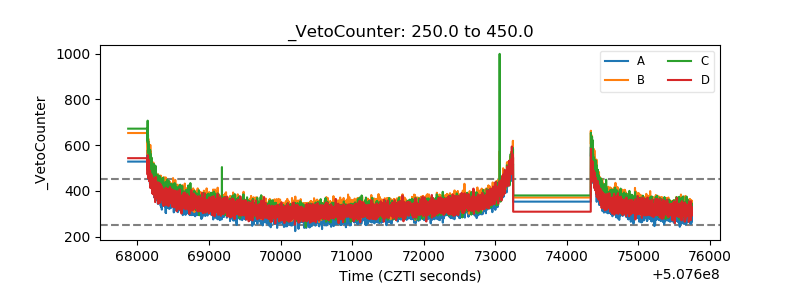

| Veto Counter |  |
