| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T02_9000006546_55989cztM0_level2.fits | modeM0/AS1A14_066T02_9000006546_55989cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,711,040 | 84,600,000 |
| Size | 408.9 MB | 80.7 MB |
| Events in quadrant A | 3,999,660 | 514,245 |
| Events in quadrant B | 3,558,249 | 555,923 |
| Events in quadrant C | 3,292,043 | 502,143 |
| Events in quadrant D | 4,441,203 | 471,662 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17323 | 0 |
| B | 0 | 15891 | 0 |
| C | 0 | 15479 | 0 |
| D | 0 | 18441 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7434 | 155 | 2.085015% |
| B | 7435 | 59 | 0.793544% |
| C | 7435 | 9 | 0.121049% |
| D | 7435 | 121 | 1.627438% |

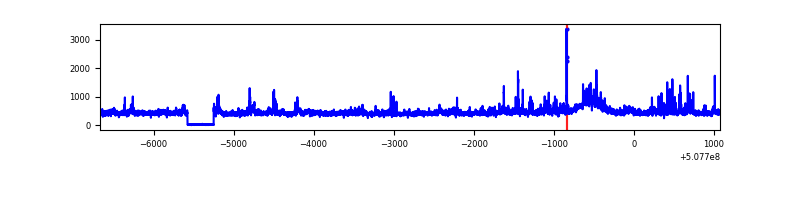

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7745 | 7745 | 128 | 128 | 1.65% | 1.65% |  |
| B | 7746 | 7746 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7746 | 7746 | 7 | 7 | 0.09% | 0.09% |  |
| D | 7746 | 7746 | 115 | 115 | 1.48% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 466649 | 2401.13 | 782 | 761 | 194.0 |
| A | 0 | 8 | 183681 | 942.75 | 782 | 761 | 194.0 |
| A | 15 | 32 | 110383 | 564.98 | 782 | 761 | 194.0 |
| B | 0 | 199 | 175178 | 1033.81 | 783 | 753 | 168.7 |
| B | 2 | 249 | 145632 | 858.69 | 783 | 753 | 168.7 |
| B | 0 | 213 | 52658 | 307.64 | 783 | 753 | 168.7 |
| C | 12 | 252 | 78218 | 363.65 | 773 | 767 | 213.0 |
| C | 14 | 254 | 69547 | 322.94 | 773 | 767 | 213.0 |
| C | 9 | 38 | 30787 | 140.95 | 773 | 767 | 213.0 |
| D | 2 | 249 | 861518 | 3962.53 | 761 | 726 | 217.2 |
| D | 7 | 129 | 282066 | 1295.11 | 761 | 726 | 217.2 |
| D | 15 | 107 | 94088 | 429.78 | 761 | 726 | 217.2 |

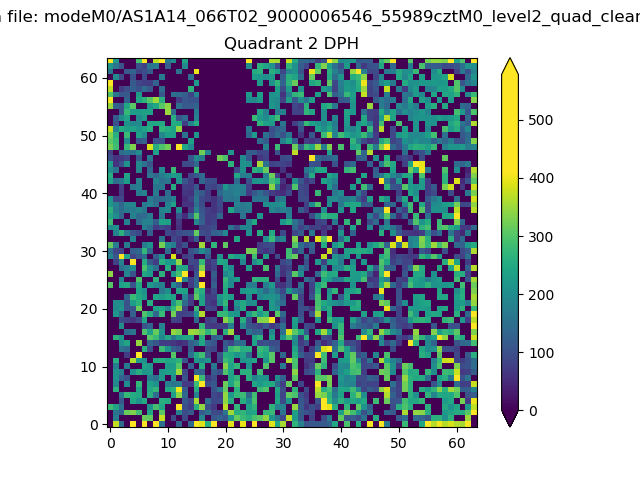

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

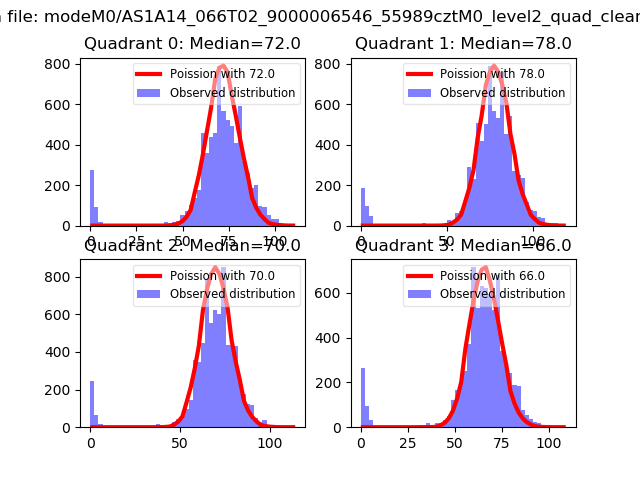

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

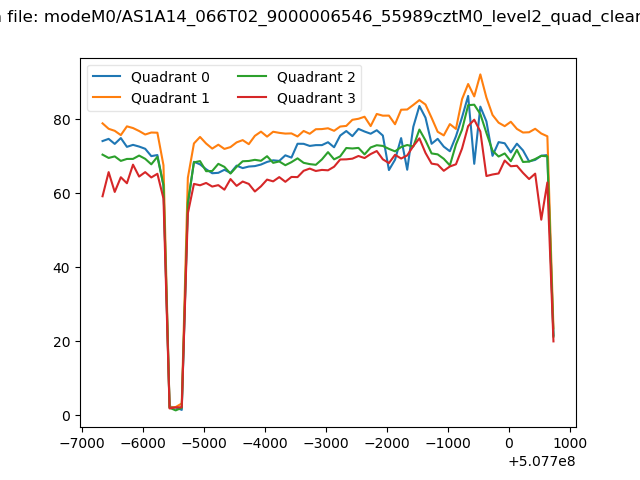

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

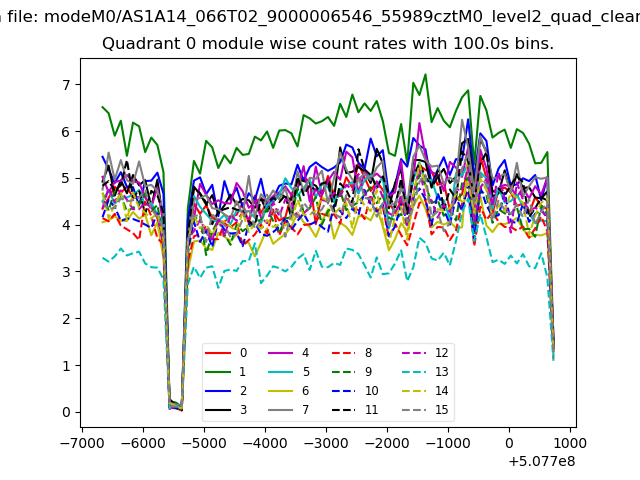

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

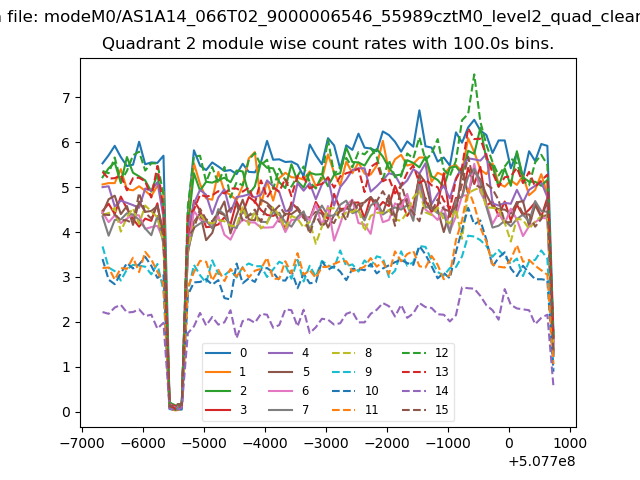

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

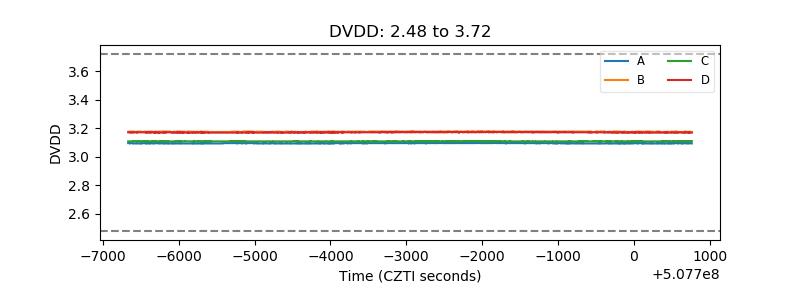

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

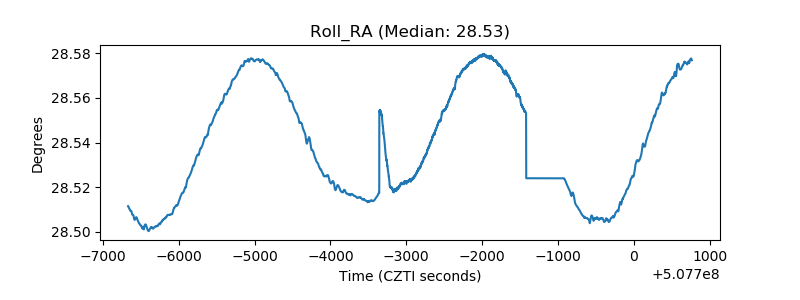

| _Roll_RA |  |
| Veto Counter |  |
